Homework Answers
Add Answer to:

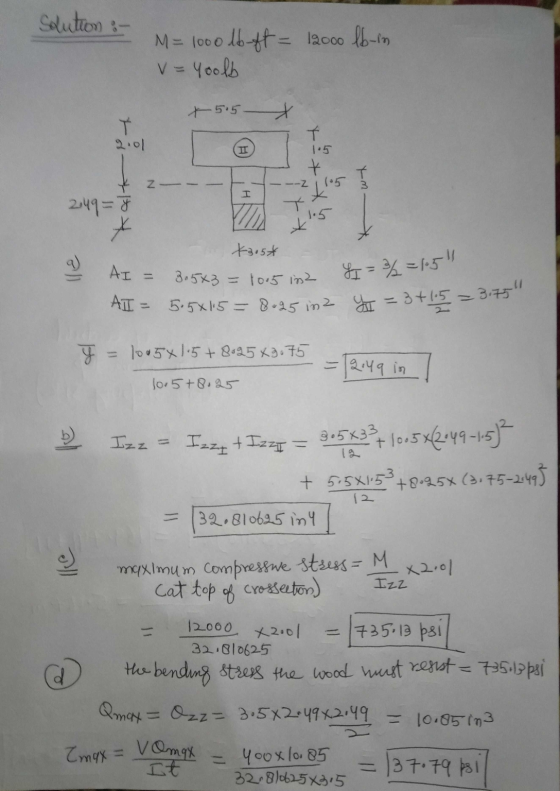

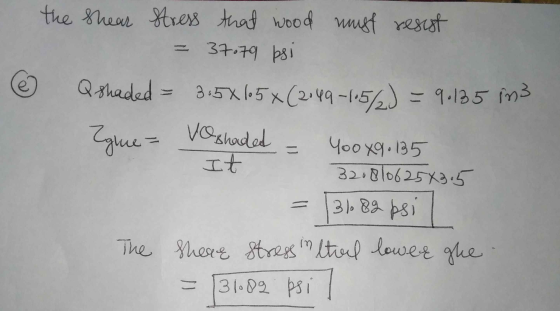

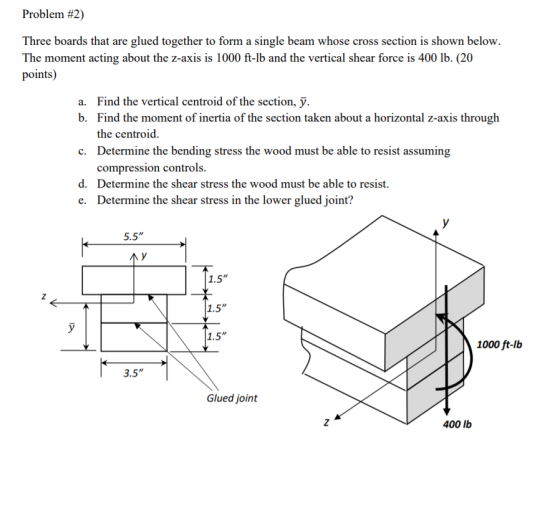

Problem #2) Three boards that are glued together to form a single beam whose cross section...
