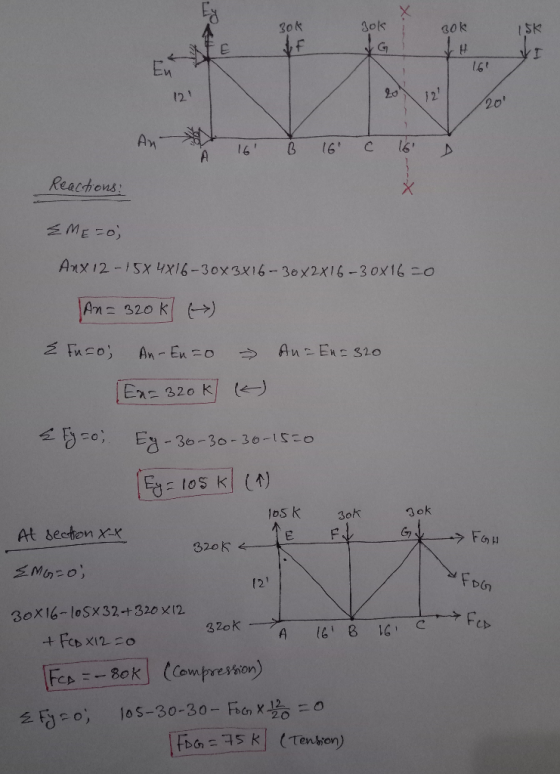

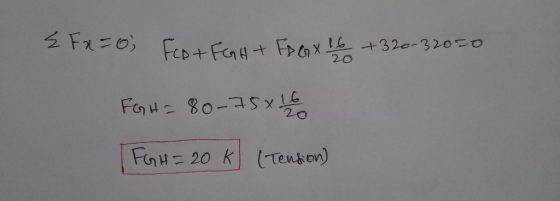

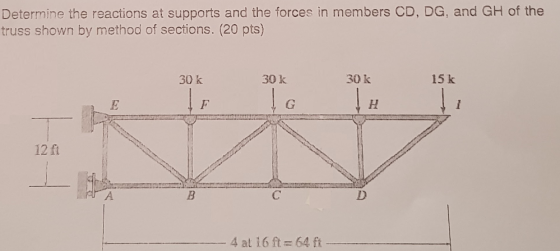

Determine the reactions at supports and the forces in members CD, DG, and GH of the...
Use Method of Sections please! Determine the bar forces in members dg, eg, and gh. State...
Use Method of Sections
please!
Determine the bar forces in members dg, eg, and gh. State if the members are in tension or compression 120KN 12 120KN 10KN_ 10KN а 10KN de 10KNO k 15 m 1.5 m
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller...
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller reaction at support A: (30 pts) fine the forces in members , DC, DG, and HG using the method of sections through section aa. Indicate whether these forces are in compression (C) or tension (T). (10 pts) list any zero-force members that you can determine. 30 k 30k 30k 15 k 12 ft 4 at 16 ft = 64 ft -
3- Determine the forces in members CG, CD and GH of the following oaded truss using...
3- Determine the forces in members CG, CD and GH of the following oaded truss using section method and indicate whether the members are in compression. Assume L-50 KN tension or (20 points) 4 m 3 m 3 m I G 30° 2
In the following truss, if the forces in members AB, AL, FG & GH were to...
In the following truss, if the forces in members AB, AL, FG & GH were to be computed, which analysis method would be most appropriate: 5000 lb 8000 lb 4000 lb B D E G 12 ft K L 9 ft9 ft-9 ft 9 ft 9 ft -9 ft "Method of Joints" "Method of Sections" with one cut "Method of Sections" with two cuts "Method of Sections" with three cuts
Use the method of sections to determine the forces in members BC, CD, and DE of...
Use the method of sections to determine the forces in members
BC, CD, and DE of the truss.
Use the method of sections to determine the forces in members BC, CD, and DE of the truss.
2. Determine the forces in members BC, CD, and DE of the truss shown below by...
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
Determine the support reactions at A and E, and find the forces in members GH, CH, CD, HD and FB Questions 22- 29 all pertain to question 21.(45 minutes) 20 k ,20 k ,20 k 303030 30' Det...
Determine the support reactions at A and E, and find the forces in members GH, CH, CD, HD and FB Questions 22- 29 all pertain to question 21.(45 minutes) 20 k ,20 k ,20 k 303030 30'
Determine the support reactions at A and E, and find the forces in members GH, CH, CD, HD and FB Questions 22- 29 all pertain to question 21.(45 minutes) 20 k ,20 k ,20 k 303030 30'
Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are...
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
Part A - Determining the forces in three specified members of the truss Determine the forces...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
The truss supports a 100-kN load at J. The Horizontal members are each 1 m in...
The truss supports a 100-kN load at J. The Horizontal members
are each 1 m in length.
a) Use the method of joints to determine the axial force in
member DG
b) Use the method of sections to determine the axial force in
member DG
(HINT: you can solve both a and b without solving for the
reactions at A and E.
PLEASE HELP!!
The truss supports a 100-kN load at J. The horizontal members are each 1 m in...
Use Method of Sections
please!
Determine the bar forces in members dg, eg, and gh. State if the members are in tension or compression 120KN 12 120KN 10KN_ 10KN а 10KN de 10KNO k 15 m 1.5 m
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller reaction at support A: (30 pts) fine the forces in members , DC, DG, and HG using the method of sections through section aa. Indicate whether these forces are in compression (C) or tension (T). (10 pts) list any zero-force members that you can determine. 30 k 30k 30k 15 k 12 ft 4 at 16 ft = 64 ft -
3- Determine the forces in members CG, CD and GH of the following oaded truss using section method and indicate whether the members are in compression. Assume L-50 KN tension or (20 points) 4 m 3 m 3 m I G 30° 2
In the following truss, if the forces in members AB, AL, FG & GH were to be computed, which analysis method would be most appropriate: 5000 lb 8000 lb 4000 lb B D E G 12 ft K L 9 ft9 ft-9 ft 9 ft 9 ft -9 ft "Method of Joints" "Method of Sections" with one cut "Method of Sections" with two cuts "Method of Sections" with three cuts
Use the method of sections to determine the forces in members
BC, CD, and DE of the truss.
Use the method of sections to determine the forces in members BC, CD, and DE of the truss.
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
Determine the support reactions at A and E, and find the forces in members GH, CH, CD, HD and FB Questions 22- 29 all pertain to question 21.(45 minutes) 20 k ,20 k ,20 k 303030 30'
Determine the support reactions at A and E, and find the forces in members GH, CH, CD, HD and FB Questions 22- 29 all pertain to question 21.(45 minutes) 20 k ,20 k ,20 k 303030 30'
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
The truss supports a 100-kN load at J. The Horizontal members
are each 1 m in length.
a) Use the method of joints to determine the axial force in
member DG
b) Use the method of sections to determine the axial force in
member DG
(HINT: you can solve both a and b without solving for the
reactions at A and E.
PLEASE HELP!!
The truss supports a 100-kN load at J. The horizontal members are each 1 m in...
