With reference to building’s electrical systems, discuss in not less than 15 lines on how the...

With reference to building’s electrical systems, discuss in not less than 15 lines on how the power factor of the electrical circuit depends on the magnitudes of resistive, inductive and capacitive elements that are connected in the circuit. I repeat, with reference to building’s electrical systems.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

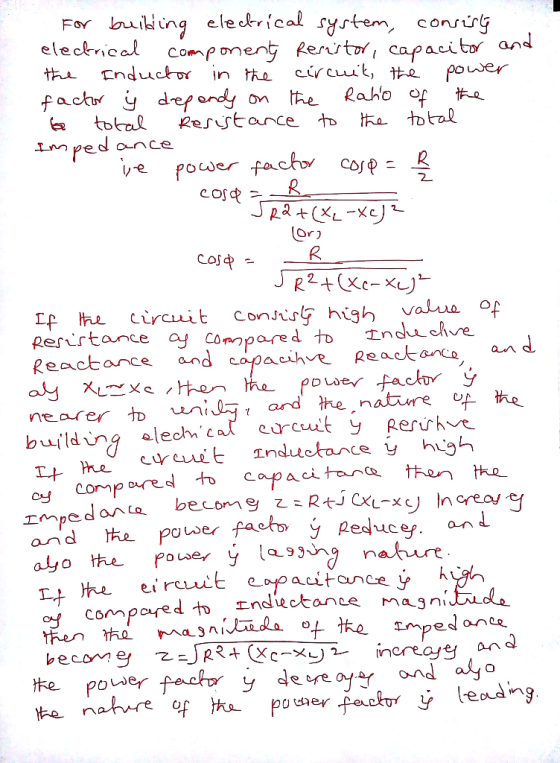

electr, cal component Rerựty, capacito and レ-Q ower sa Rerurtance React arc e and -spacǐhve React anC2 and parre power facko

0 0
Add a comment
Know the answer?
Add Answer to:
With reference to building’s electrical systems, discuss in not less than 15 lines on how the...
