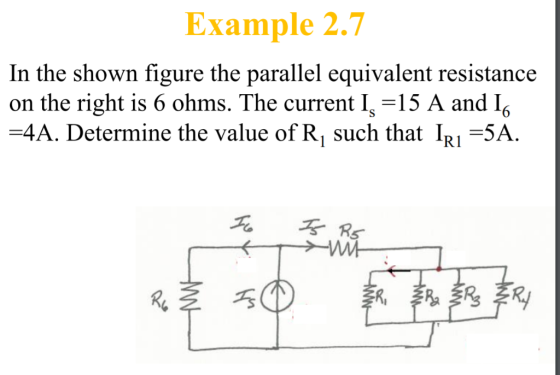

Example 2.7 In the shown figure the parallel equivalent resistance on the right is 6 ohms....

Question

Question

Example 2.7 In the shown figure the parallel equivalent resistance on the right is 6 ohms. The current I -15 A and I -4A. Det

engineering Electrical-Engineering

Answer 1

Answer #1

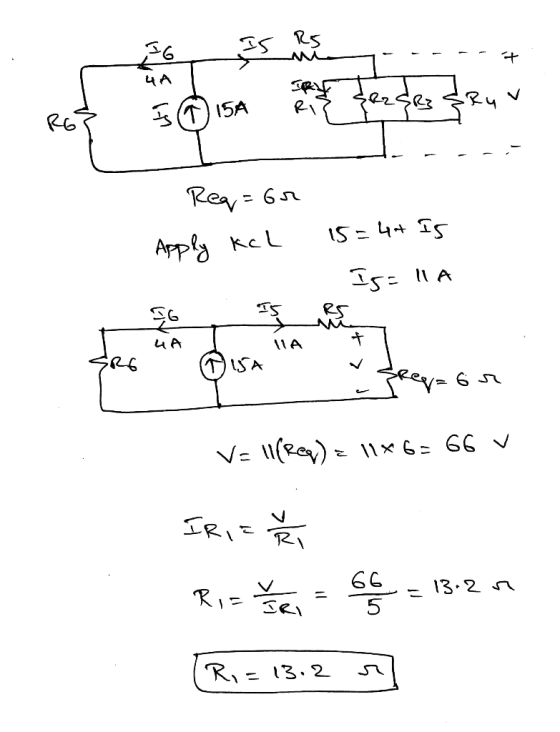

SC 2 Lu A IIA ナ SA 2 6C 13.2 5 Κι = 13.2 Λ

Answer 2

Similar Homework Help Questions

Learning Goal: To learn to calculate the equivalent resistance of the circuits combining series and parallel...

Learning Goal: To learn to calculate the equivalent resistance of the circuits combining series and parallel connections. Resistors are often connected to each other in electric circuits. Finding the equivalent resistanceof combinations of resistors is a common and important task. Equivalent resistance is defined as the single resistance that can replace the given combination of resistors in such a manner that the currents in the rest of the circuit do not change. Finding the equivalent resistance is relatively straighforward if...
The equivalent resistance of the system is 20 ohms, and are connected in parallel. R1 and...

The equivalent resistance of the system is 20 ohms, and are connected in parallel. R1 and R2 have resistances of 28 ohms and 24 ohms, respectively. Calculate the resistance of R3.
Figure 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2KΩ. (True,...

Figure 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2KΩ. (True, False) b) The equivalent resistance of the network shown in figure 4(B) is 27/17Ω [Hint see figure 4(B) and] (B) 1 ΚΩ 1 ΚΩ 1 ΚΩ - R2 w c 1.00 + 3100 im IR 3.00 7 Figure 4: 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2K12 (True, False) (b) The equivalent resistance of the network shown in...

What is the equivalent resistance of a the following 3 resistors: R1 = 13 Ohms R2...

What is the equivalent resistance of a the following 3 resistors: R1 = 13 Ohms R2 = = 4 Ohms R3 = 42 Ohms In this circuit, R1 and R3 are connected in parallel, and then connected to R2 in series, as shown below: Ri 0--R2- R3
What is the equivalent resistance in a circuit if the following resistors are connected in parallel....

What is the equivalent resistance in a circuit if the following resistors are connected in parallel. If a voltage source of 5 volts is connected into the circuit, what is the net current coming out of the voltage source. Resistor 1 = 15 ohms, Resistor 2 = 23 ohms, Resistor 3 = 40 ohms
Figure 2 of 4 → 50 mA » RB RAB Rg} Find the equivalent resistance seen...

Figure 2 of 4 → 50 mA » RB RAB Rg} Find the equivalent resistance seen by the source in the circuit shown in (Figure 2). Suppose that R1 = 10k2, R2 = 8kS2, R3 = 2 k2, R4 = 9 kN, Rs = 18 ks, and R6 = 6 k 2. Express your answer to three significant figures and include the appropriate units. ? M: PÅ Value N O 2 Units Req = Submit Request Answer Part D Find...

Using series-parallel resistance combinations, find the equivalent resistance of Figure 1. 1. (10marks) [CLO6:PLOI:Cij Rs 40...

Using series-parallel resistance combinations, find the equivalent resistance of Figure 1. 1. (10marks) [CLO6:PLOI:Cij Rs 40 R-100 un
6. Equivalent Resistance of a Series - Parallel circuit: (can do at home) In the following...

6. Equivalent Resistance of a Series - Parallel circuit: (can do at home) In the following circuit, what series-parallel combination does the circuit represent? i.e which combination of resistors are in parallel with which combination in series? A B С W R3 R1 V1 w R2 R4 F E D If this circuit were to be described as the following equivalent circuit with a single equivalent resistance, what would be it in terms of R1, R2, R3 and R4)? Ro4
Question 7 1 pts Compute the equivalent resistance in ohms of the bulb network attached to...

Question 7 1 pts Compute the equivalent resistance in ohms of the bulb network attached to the battery in Fig. 4. The resistance of each bulb is 5 12. Figure 4 Question 7 1 pts Compute the equivalent resistance in ohms of the bulb network attached to the battery in Fig. 4. The resistance of each bulb is 5 12. 070 Figure 4 Question 8 1 pts Indicate the reasoning for arriving at your answer to problem 7. Include equations,...

3. Equivalent Resistance (20 pts) 222-152C The resistors in the figure have the following R1 ....

3. Equivalent Resistance (20 pts) 222-152C The resistors in the figure have the following R1 . values o Ritz 25.0 Ω o R2-45.0 Ω o R3 15.0 Ω R4-35.0 Ω Rs. 10.0 Ω R6- 55.0 2 R2 Ra The emf device shown supplies 20 V to the circuit. (a) Find the equivalent resistance of this circuit. (b) Find the current and direction of current flow through R3. (c) Find the potential difference, Vab, across points a and b. Solution: ....
