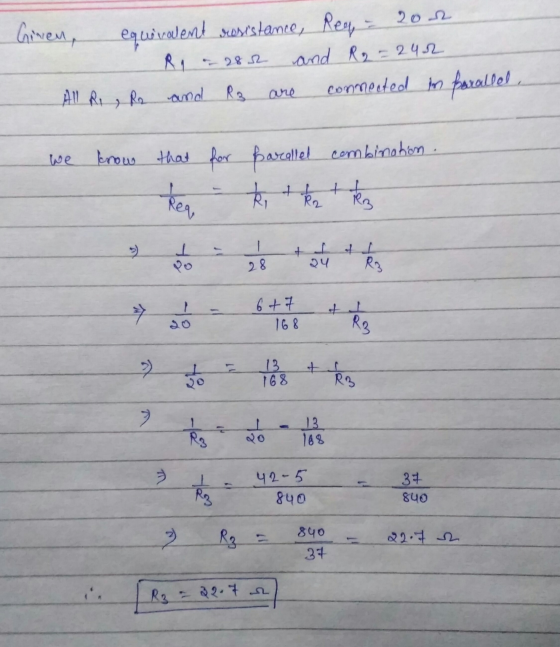

The equivalent resistance of the system is 20 ohms, and are connected in parallel. R1 and...
Homework Answers
Add Answer to:
The equivalent
resistance of the system is 20 ohms, and are connected
in parallel. R1 and...
What is the equivalent resistance of a the following 3 resistors: R1 = 13 Ohms R2...
What is the equivalent resistance of a the following 3 resistors: R1 = 13 Ohms R2 = = 4 Ohms R3 = 42 Ohms In this circuit, R1 and R3 are connected in parallel, and then connected to R2 in series, as shown below: Ri 0--R2- R3
If two resistors R1 and R2 are connected in parallel, then the total resistance R measured in...
If two resistors R1 and R2 are connected in parallel, then the total resistance R measured in ohms is given by1/R=1/R1+1/R2If the resistance of R1 and R2 are increasing at 390 and 670 ohms per second respectively, then the rate of increase of R when R1=7000 andWhat is R2=3000 ohms per second?Can you show me the work? I will calculate the answer. Thanx!
the voltage of the battery is 12V, and the values of the resistances are R1=5 ohms,...
the voltage of the battery is 12V, and the values of
the resistances are R1=5 ohms, R2=10 ohms, R3= 15 ohms, and R4= 20
ohms.
Answer the following questions:
1. R1 and R3 are in :
2. R2 and R4 are in:
3 Compare the magnitude of the current through R2 and R3. which is
greater?
4. Compare the magnitude of the voltage across R1 and R3. which is
greater?
5. Compare the magnitude of the voltage across R2 and...
R1 = 4.5 ohms, R2 = 3.6 ohms, and R3 = 2.8 ohms A) What is...
R1 = 4.5 ohms, R2 = 3.6 ohms, and R3 = 2.8 ohms
A) What is the equivalent resistance?
B) If these resistors are connected across a 12V battery, what's
the current through R3?
RI R2
Learning Goal: To learn to calculate the equivalent resistance of the circuits combining series and parallel...
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
Consider a circuit with three resistors (R1 = 33.5 ohms, R2 = 87.8 ohms, and R3...
Consider a circuit with three resistors (R1 = 33.5 ohms, R2 = 87.8 ohms, and R3 = 26.8 ohms) connected to a 12.5 V battery as follows: R1 and R2 are connected in parallel. This combination is then connected in series to R3. Find the power dissipated in R1. Calculate the answer in watts (W) and rounded to three significant figures.
Consider a circuit with three resistors (R1 = 40.5 ohms, R2 = 54.8 ohms, and R3...
Consider a circuit with three resistors (R1 = 40.5 ohms, R2 = 54.8 ohms, and R3 = 30.8 ohms) connected to a 12.5 V battery as follows: R1 and R2 are connected in parallel. This combination is then connected in series to R3. Find the power dissipated in R1. Calculate the answer in watts (W) and rounded to three significant figures. please explain.
Two resistors, R1 and R2, are connected in series. a) calculate the single resistance equivalent (in...
Two resistors, R1 and R2, are connected in series. a) calculate the single resistance equivalent (in Ω) to the series combination. b) Repeat the calculation for a parallel combination of R1 and R2. (Enter your answer in Ω.)
to resistors two resistors R1 equals 20 ohms and R2 equals 20 ohms are connected in...
to resistors two resistors R1 equals 20 ohms and R2 equals 20 ohms are connected in series with an EMF of 3.0 volts what is the equivalent resistor in the circuit
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
What is the equivalent resistance of a the following 3 resistors: R1 = 13 Ohms R2 = = 4 Ohms R3 = 42 Ohms In this circuit, R1 and R3 are connected in parallel, and then connected to R2 in series, as shown below: Ri 0--R2- R3
the voltage of the battery is 12V, and the values of
the resistances are R1=5 ohms, R2=10 ohms, R3= 15 ohms, and R4= 20
ohms.
Answer the following questions:
1. R1 and R3 are in :
2. R2 and R4 are in:
3 Compare the magnitude of the current through R2 and R3. which is
greater?
4. Compare the magnitude of the voltage across R1 and R3. which is
greater?
5. Compare the magnitude of the voltage across R2 and...
R1 = 4.5 ohms, R2 = 3.6 ohms, and R3 = 2.8 ohms
A) What is the equivalent resistance?
B) If these resistors are connected across a 12V battery, what's
the current through R3?
RI R2
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
