Problem 1 (#5-15, pg. 234): Determine the reactions at the supports. SkN 5 EN 78 KN

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

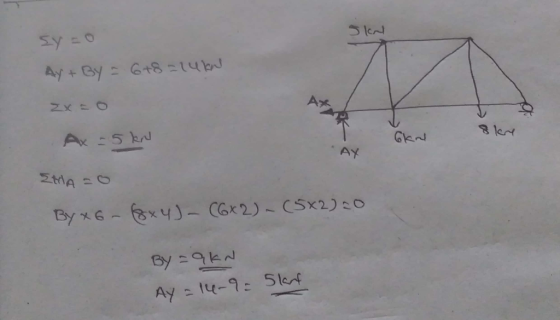

SIN Sy=0 Ay + BY = 6+8 = 14 kW AY Ax = 5 kn EMA = 0 By x6-1884). (6x2) - (582) 20 By=9kn Ay = 14-9 Slank

Answer 2

Similar Homework Help Questions

Problem 2 Determine the reactions at the beam supports for the given loading. 3.5 kN/m 15...

Problem 2 Determine the reactions at the beam supports for the given loading. 3.5 kN/m 15 kNm 6 m In
1] Determine the reactions at the supports. (20 points) 3 kN 3 m 6 kN 8 kN 2 m

1] Determine the reactions at the supports. (20 points) 3 kN 3 m 6 kN 8 kN 2 m 1] Determine the reactions at the supports. (20 points) 3 kN 3 m 6 kN 8 kN 2 m
15 kN 25 kN-m 25 kN-m 7 kN/m m-13m2 a) Determine the reactions at supports A...

15 kN 25 kN-m 25 kN-m 7 kN/m m-13m2 a) Determine the reactions at supports A and D. (5points) b) Write functions for shear force (V) in terms of x (12 points) c) Write functions for bending moment (M) in terms of x. (16 points)

Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1...

Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1 5 kN/m Solve using Stiffness method and show each matrix and final matrix
Problem 1.9 The beam supports the distributed load with Wmax 3.2 kN/m as shown. The reactions...

Problem 1.9 The beam supports the distributed load with Wmax 3.2 kN/m as shown. The reactions at the supports A and B are vertical. .5 m .5 m PartA Determine the resultant internal loadings acting on the cross section at point D Express your answers, separated by commas, to three significant figures. kN, kN, kN.m Submit Request Answer
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t Q1: Deter...

Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t

determine the reactions at the supports for the beam shown. 150 kN stant 40 kN/m rmly...

determine the reactions at the supports for the beam shown. 150 kN stant 40 kN/m rmly e ex- ns of and 8 m 20 kN/m s as A 6 m 6 m 6 m FIG. P3.17
1) Determine the reactions at the supports for the structures shown. The support at A is...

1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
Determine the reactions at the supports. El is a constant Prob. 15-7 12 kN/m 2.5 m Show transcribed image text Solve us...

Determine the reactions at the supports. El is a constant Prob. 15-7 12 kN/m 2.5 m Show transcribed image text Solve using the stiffness method

Determine the reactions at the supports. 3. 800 N/m 3m Ans: В NA Br 2.40 kN...

Determine the reactions at the supports. 3. 800 N/m 3m Ans: В NA Br 2.40 kN = 133 N В, 3.33 kN 3 m 1 m
