Question

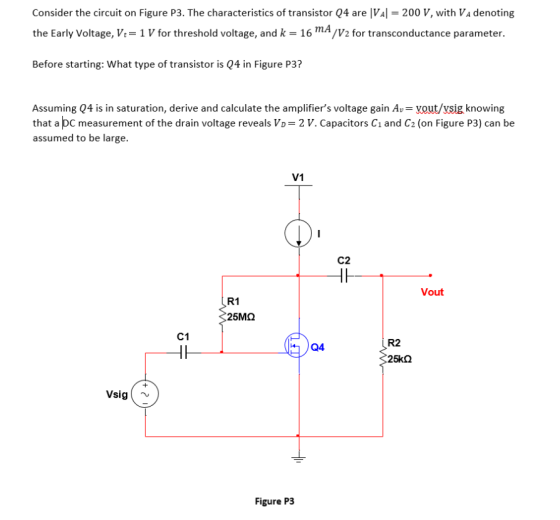

Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with VA denoting the Early Voltage, V

0 0
Add a comment Improve this question Transcribed image text
Answer #1

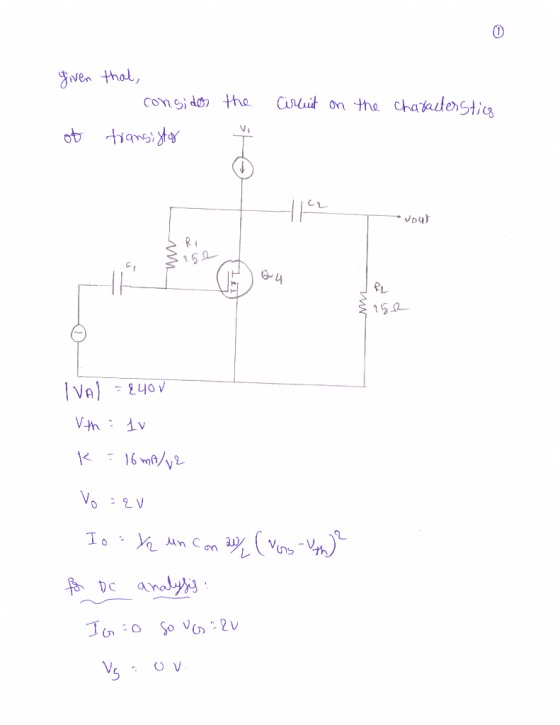

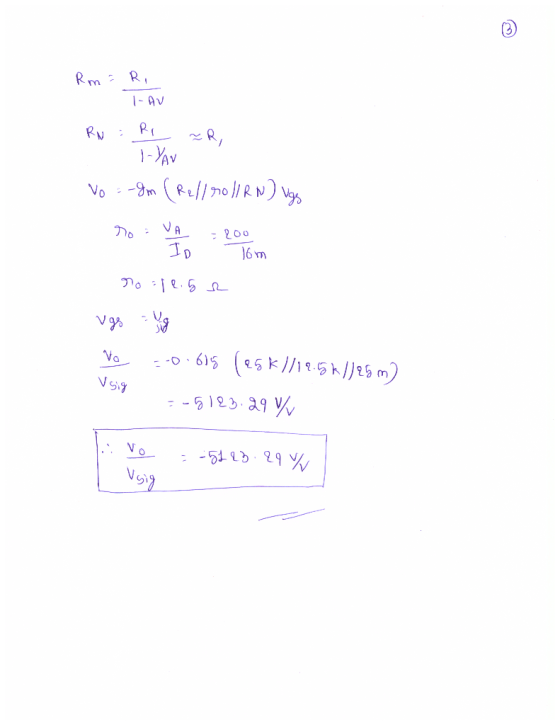

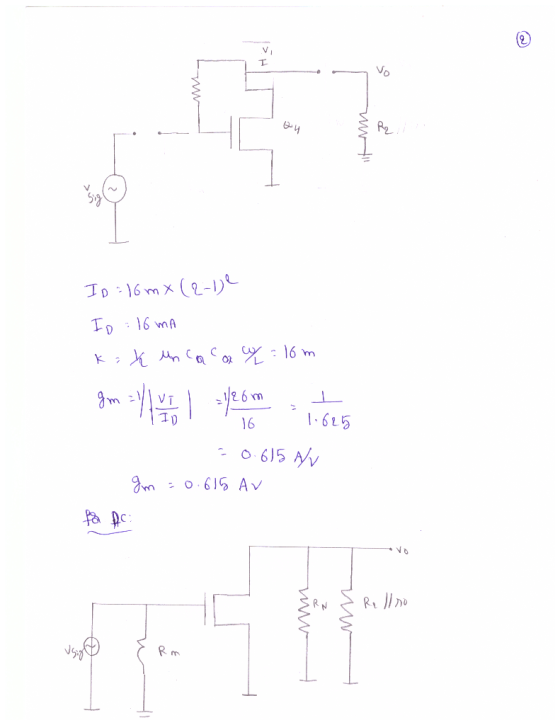

gve thal censi too the on the chakdostis Gr 5 A 4 15216 mm 26 616L5 2 m

Add a comment
Know the answer?
Add Answer to:
Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 1-Clear handwriting 2-Correct answer 3-Organized 4-answer all the questions Please Problem 2 On the circuit on...

    1-Clear handwriting 2-Correct answer 3-Organized 4-answer all the questions Please Problem 2 On the circuit on Figure P2, transi stor Q1 has a threshold voltage of Vt = 2 V and a transconductance parameter of k = 100 mA/V2. Note that Vcc = -Vee = 4.5 V. Moreover, capacitors C1, C2, and C3 can be assumed to be very large VDD 4.5.0 R3 25kQ R1 300kn C2 Vout C1 Rsig Q1 1k0 R2 200kn Vsig (R4 2kQ C3 -4.5V VSS...

  • 2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether...

    Please help, and explain as much as possible. Thank you! 2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...

  • Score 2. (22 points) For the circuit in Figure 2, the transistor parameters are: 2 0,...

    Score 2. (22 points) For the circuit in Figure 2, the transistor parameters are: 2 0, VN=2V, Ka-1mA/V2, all the capacitors are assumed to act as short circuits at the signal frequency (1) Calculate the Q-point (Vos. I Vos); (2) Sketch the small-signal equivalent circuit, you must label the polarities of the voltages and the direction of the current; (3) Determine the voltage gain A, vo/v (4) Determine the input resistance Ri and output resistance Ro V1 5 10 V...

  • An amplifier circuit using a bipolar transistor is shown in Figure Q5. (a) State, with a valid re...

    An amplifier circuit using a bipolar transistor is shown in Figure Q5. (a) State, with a valid reason, whether this amplifier is an emitter follower or a common emitter configuration. (b) Redraw Figure Q5 as a large signal equivalent circuit. Show that: (c) Show that the input voltage, vISAT to produce the onset of saturation for T1 is given by: (d), confirm, by calculation, that T1 is in saturation. (e) Calculate the current in the lamp when T1 is in...

  • 1. Consider NMOS transistor in the circuit that has u.Cox = 0.4 mA/V?, W/L = 25,...

    1. Consider NMOS transistor in the circuit that has u.Cox = 0.4 mA/V?, W/L = 25, and V.=0.4V. (20 pts) (a) Find the value of Vas that results in saturation mode operation with a lp current of 0.1 mA. Neglect the Early effect. (2.5 pts) +1.5 V in BRD (b) Find the value of Rp that results in a de drain voltage of 0.5V. (2.5 pts) = = = (e) Find gw and r, at the de operating point specified...

  • IX With reference to the transistor amplifier shown in Figure QB4 below d For the bipolar transistor circuit of Figure QB4 the following DC bias conditions were measured: VB made. 1.6 V and VBE =0.6...

    IX With reference to the transistor amplifier shown in Figure QB4 below d For the bipolar transistor circuit of Figure QB4 the following DC bias conditions were measured: VB made. 1.6 V and VBE =0.6 V. Detemine the value for RA, stating any assumptions e) Using these same conditions, calculate the current in Re and deduce the current in Rc, stating any assumptions made. Hence find the voltage across Rc and explain whether this voltage is suitable for this amplifier...

  • A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os,...

    A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...

  • Problem 2: In the circuit on Figure P2, BJT NPN Q1 and Q2 emulate a Darlington...

    Problem 2: In the circuit on Figure P2, BJT NPN Q1 and Q2 emulate a Darlington Pair (DP). It should be noted that Q1 and Q2 are such that their current gains are B1 B2 = B = 99. Moreover, capacitors C1 and C2 can be assumed to be very large. Note: The DC analysis of the DP circuit below can be done in a similar fashion as what you do when only dealing with one transistor. Express the current...

  • V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same rel...

    V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...

  • Question 1: 7.33 +15V 1O MO R-200k 16n 7k MO 7.33 Figure P7.33 shows a discrete-circuit...

    Question 1: 7.33 +15V 1O MO R-200k 16n 7k MO 7.33 Figure P7.33 shows a discrete-circuit amplifier. The input signal is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits...
