We know that stress is anti proportional to moment of inertia and as couple is acting along x -axis . so we will have lower stress for which moment of inertia about x-axis will greater.so option (c) is correct.

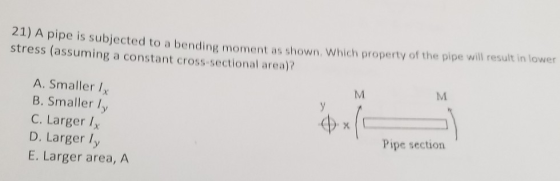

21) A pipe is subjected to a bending moment as shown, Which property of the pipe...
The beam shown is subjected to a constant Bending Moment M =
2109 Kg * m. Determine the maximum bending stress of the beam.
The dimensions of the cross section shown are a = 211 mm, b = 50
mm, c = 31 mm, d = 63 mm and e = 128 mm
Determine the maximum stress in Kg/cm^2 due to the bending
moment, use 4 decimal places in your answer.
A beam having the cross-section shown below is subjected to a bending moment of 1500 Nm in x-axis. Calculate the maximum direct stress due to bending and state the point at which it acts. 40 mm 80 mm у B 8 mm C IX x 80 mm ΕΙ 8 mm
The cross section of a beam shown below is subjected to a bending moment of 8,000 lb-in, which causes compression at top point A and tension at bottom point B. Find the maximum bending stress. Show the details of your work. 12 in
A beam whose cross-section is shown in the figure is subjected to a bending moment M inclined at 0 = 70° from the z axis. a) Locate the orientation of the neutral axis B and draw this axis on the figure b) Calculate the maximum flexural tensile stress Omax,T and the maximum flexural compressive stress Omax.c in the beam and indicate at which points in the section these occur. M= 2 Nm D e Z 20 mm A B 60...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam, shown in Figure 6, is subjected to an internal moment of 2.5 kNm, determine the maximum tensile and compressive stress in the beam. Also sketch the bending stress distribution on the cross section.
With a U cross section, is subjected to uniformly distributed force 11 kN/m and a concentrated load of 12 kN as shown. (a) the reaction at supports A and B, (b) sketch the shear diagram and the moment diagram, (c) determine the location of neutral axis of the cross section and calculate its area moment of inertia about the neutral axis, and (d) determine absolute maximum bending stress and (e) absolute maximum transverse shear stress.
The flanged member shown below is subjected to an internal axial force of P = 6500 lb, an internal shear force of V = 4500 lb, and an internal bending moment of M = 19200 lb-ft, acting in the directions shown. d M Iw y HI a y Ilk thu The dimensions of the cross section are: bf = 8.0 in. tp = 0.61 in. d = 11.0 in. tw = 0.38 in. The cross-sectional area of the flanged shape...
