Homework Answers

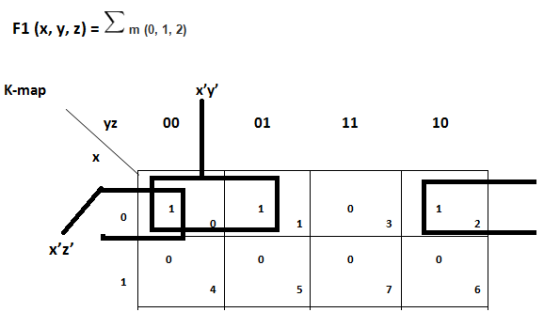

F1 (x, y, z) =
m (0, 1,
2)
The Simplified SOP of F1 = x'y'+x'z'

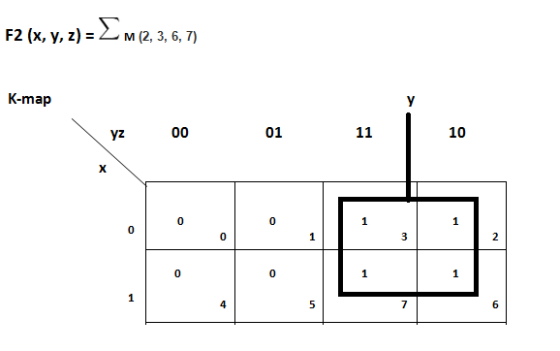

F2 (x, y, z) =
M (2, 3,
6, 7)
The Simplified SOP of F2 = y

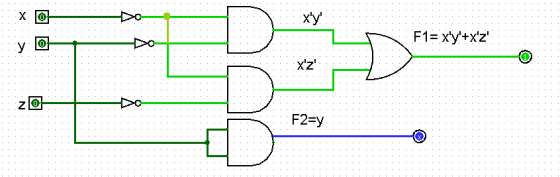

Single Logic Circuit for F1 & F2 Using AND, OR & NOT gates

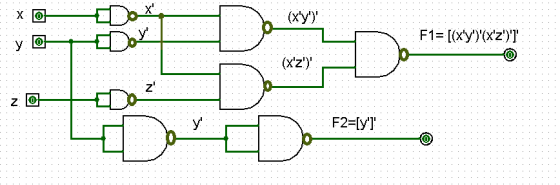

Circuit Using NAND gates
F1 = x'y'+x'z'
[F1']' = [(x'y'+x'z')']'.
F1 = [(x'y')'(x'z')']'
F2 = y
[F2']' = [y']'
