e: Find the minimum NOR Realization for the following Switching Function 10 Marks Ft4) x,y,z)-m(1,2,3,5,6,7,8,9,12,1

Question

Question

engineering Computer-Science

Answer 1

Answer #1

Below gives the steps to find the minimum NOR realization:

Given,

F(x,y,z)= ∑m(1,2,3,5,6,7,8,9,12,14)

Which is as follows:

F(x,y,z,w)= ∑m(1,2,3,5,6,7,8,9,12,14)

This gives the sum of product that can be represented with NAND circuit.

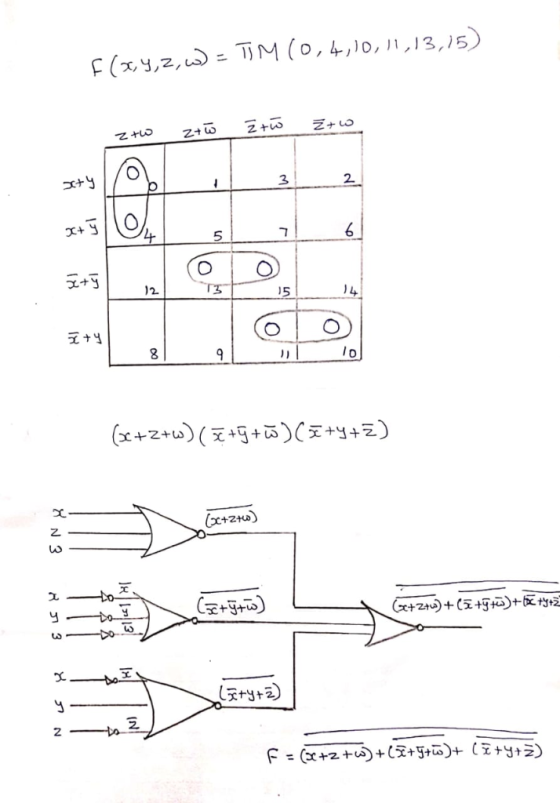

F(x,y,z,w)= πM(0,4,10,11,13,15)

This gives the product of sum that can be represented with NOR circuit.

乙ゴナy 0 5 ゴナy 乙 (x+2+o) 2 2.

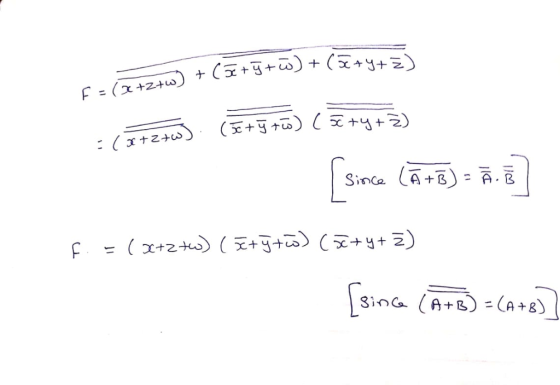

- - Since (AA)= · sina (A+ (a+)
