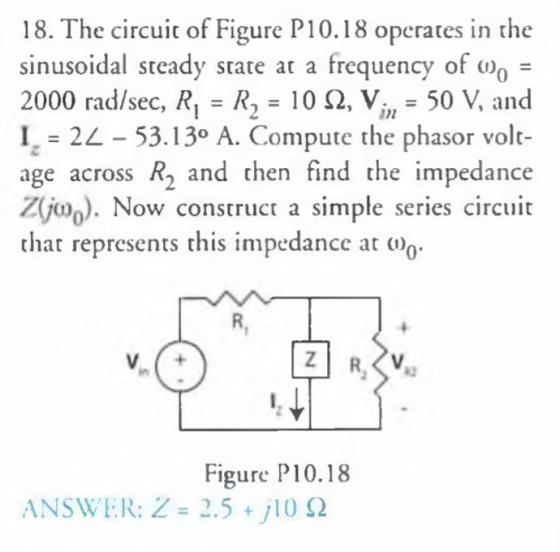

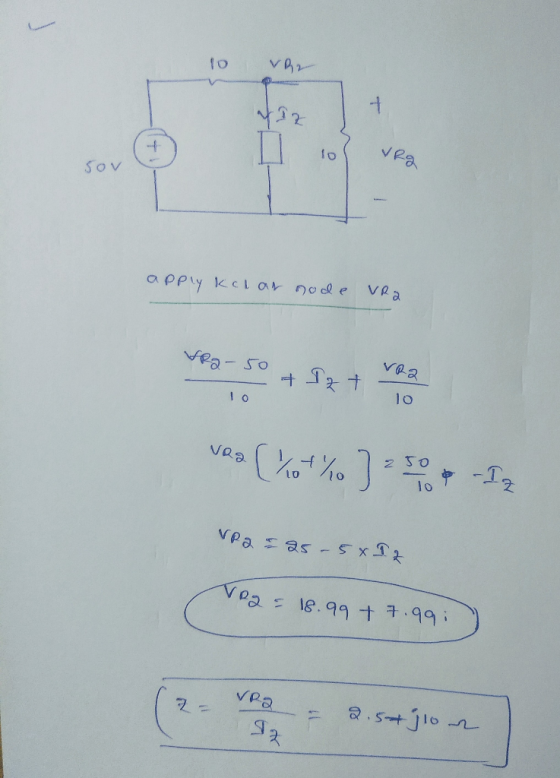

18. The circuit of Figure P10.18 operates in the sinusoidal steady state at a frequency of...
2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2. The steady-state expression for the source voltage is v;=50.cos(1000t+20). (40 points) 12 mH 100 MF 10 Figure 2 a) Construct the frequency-domain equivalent circuit. b) Calculate the steady-state current i by the phasor method.
Review I LUSIDIIS The circuit in (Figure 1) is operating in the sinusoidal steady state. Part A Find the steady-state expression for v. (t) if yg = 30 sin 50,000+ V. Suppose that v.(t) = V, cos(ut + o), where -180º < < 180°. Determine the values V, w, and . Express your answers using three significant figures separated by commas. Express Vo in volts, win radians per second, o in degrees. O ACO vec o a ? Figure <...
Question 1 (3 pts) A circuit in sinusoidal steady state (Figure 1): With given mesh currents write a set of equation by using mesh analysis Sand load b. Removing voltage source impedance Z the circuit is a network. Find the transimission parameters of the circuit at the frequency 1000Hz, if M-0; Z = 300 Z, 450; Z-200; Z, = 602; 2-port Im Figure 1
Question 1 (3 pts) A circuit in sinusoidal steady state (Figure 1): With given mesh currents...
Problem 24: (18 points) 1. (6 points) Figure 2 shows an RC circuit with input f(t) and output y(t) Function Generator R, v, (r) y1) Figure 2: RC circuit. (a) (1 point) Sketch the circuit in the phasor domain by replacing the capacitor with its impedance represen- (b) (3 points) Using circuit analysis techniques, show that the frequency response function is Specify the DC gain, K, and the time constant, T, in terms of the parameters R, R, and C...
681) Given a sinusoidal voltage source in series with R,L, and C. The sinusoidal frequency is 400 Hz. R=7 Ohms, L=4 milliHenry, C=100 microFarad, V=60sin(wt) volts. Determine the phasor current, phasor voltages across the capacitor, resistor, and inductor
Find the Steady State Voltage and Current
Values.
Develop the equation for i(t) , the current through
the inductor and Vout(t).
I need help, I don't know if my calculations are correct, I
found the neper frequency to be: a=439.109 rad/sec and resonant
frequency to be Wo=14586.5 rad/sec.
This is a parallel step response RLC circuit
The circuit is underdamped.
Please show all work clearly so that I can understand the
process.
Vout(t) is the voltage across R2 (which is...
The frequency of the sinusoidal voltage source in the circuit in Figure 1 is adjusted until the current i, is in-phase with v. a) Calculate the value of (f) in Hertz at which both the voltage and current are in phase. b) If vg = 30 cos(2nft) V[where'f' is the frequency obtained in part a ), Determine the steady state expression for current, i, (50/3) kN2 1.2k12 w 50 nF 200 mH Figure 1
You have the following circuit in sinusoidal
steady-state.
Use phasor circuit analysis to find the time domain expression
for the steady-state current, i(t), and steady-state voltages,
VR(t), VC(t) and VL(t).
Vs(t) = 50 cos(1000t) Volts.
Problem 1 (20 points) You have the following circuit in sinusoidal steady-state. Use phasor circuit analysis to find the time domain expression for the steady-state current, i(t), and steady- state voltages, Vr(t), Vc(t) and Vl(t). Vs(t) = 50 cos(1000t) Volts. i(t) 100 12 25 mH...
R2 L2 400 100mHV V1 C2 500Hz 0° Figure 3. AC voltage source in series with a resistor and capacitor Simulate this circuit in transient analysis mode and measure the voltage indicated by the probe Determine the sinusoidal steady-state amplitude [V] and frequency [Hz and rad/sec] of the capacitor voltage indicated by the probe
A sinusoidal voltage V(t) = (80.0V)sin(500t) is applied to a series RLC circuit with L= 700 mH, C = 80.0 uF and R = 90.0 12. (a) What is the impedance of the circuit in 2? (b) Find Imax (in A), o (in rad/s) and Q (in degrees) in i(t) = Imax sin(@t-0). (c) What is the ratio Pout for the resistor? (d) What is the average power dissipated by the resistor in W? (e) What is the resonant frequency...
