The figure below shows three charged spheres arranged along the y axis. (Assume 1-2.40 C and...

Question

Question

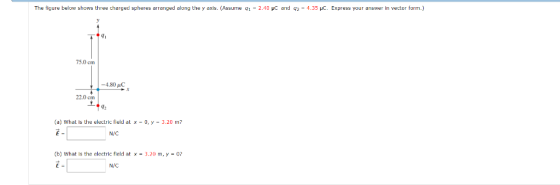

The figure below shows three charged spheres arranged along the y axis. (Assume 1-2.40 C and q2-4.35 uC. Express your answer

science physics

Answer 1

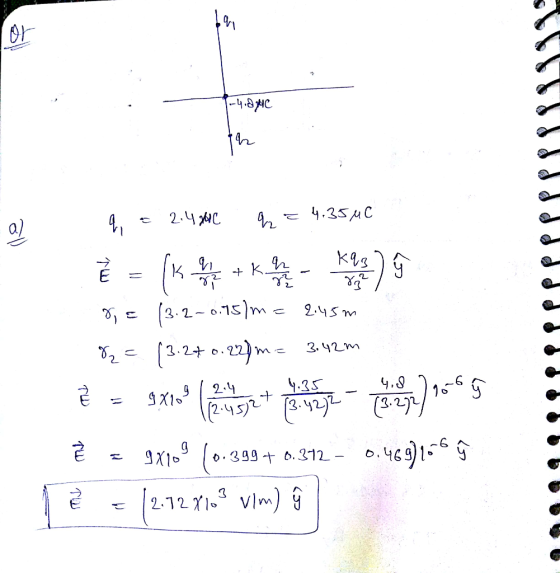

Answer #1

Answer 2
