A 256kiB (2^18 bytes) cache has a block size of 32 bytes and is 32-way set-associative....
A 256kiB (2^18 bytes) cache has a block size of 32 bytes and is 32-way set-associative.
How many bits of a 32-bit address will be in the Tag, Index, and Bock Offset?
Homework Answers

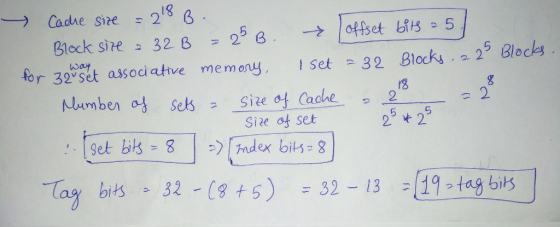

Solution :
tag bits = 19, index bits = 8,
offset bits = 5
if you have any doubts then you can ask in comment section if you find the solution helpful then upvote the answer. Thank you.
