Prove that for a three-wire, wye-connected, stator winding . For this to be true, is it...
Prove that for a three-wire, wye-connected, stator winding
.

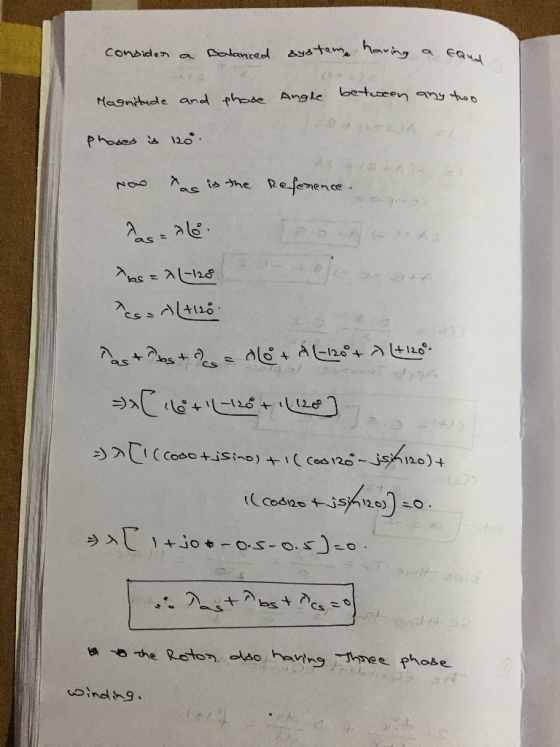

For this to be true, is it necessary for the rotor windings to also be connected in a three-wire wye arrangement?
Homework Answers
Add Answer to:
Prove that for a three-wire, wye-connected, stator winding
.
For this to be true, is it...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position of the rotor at standstill (rest position) a) Schematic view of SPPMSM b) Electrical equivalent circuit of SPPMSM Description of the motor: In Fig. a, cross-section of a Single Phase Permanent Magnet Synchronous Motor (SPPMSM) is seen. A U shaped stator is wound with a stator winding consisting of two coils connected in series (you can consider a single coil with N turns). A...
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The...
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The self-inductance of each stator winding is Laa and of the rotor is Lff. The air gap is uniform. The mutual inductance between a stator winding depends on the angular position of the rotor and may be assumed to be of the form where...
Question 2 [10 marks) A six pole, three phase induction motor, with a star connected stator...
Question 2 [10 marks) A six pole, three phase induction motor, with a star connected stator winding is energised from a 380V, 50Hz supply. The ratio of the stator to rotor turns is assumed 1.8 and a full load slip of 4%. If the respective per phase rotor resistance and standstill reactance are 0.120 and 0.8502, determine: a. Torque developed at full load b. The maximum torque and the speed at maximum torque
You are tasked with designing the stator winding distribution of a three-phase, 60 Hz induction motor, whose rated speed will be 900 rpm. You will have only 36 equidistant stator slots at your disposal to place in conductors.
You are tasked with designing the stator winding distribution of a three-phase, 60 Hz induction motor, whose rated speed will be 900 rpm. You will have only 36 equidistant stator slots at your disposal to place in conductors.(a) Determine and sketch on separate axes the winding distribution of phases a, b and c. Adopt a conductor placement approach that will minimize thegeneration of higher-order harmonics in the rotating magnetic flux wave. Assume you have 132 turns to distribute per phase.(b) Sketch on separate axes the air gap H-field...
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connecte...
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Prelab 1. In your lab notebook draw the schematic diagram for a three-phase wye-connected induction motor...
Prelab 1. In your lab notebook draw the schematic diagram for a three-phase wye-connected induction motor with its three-phase stator winding connected to the three-phase power supply through 25-Ω resistors. Connect two er analyzers in the circuit (between the 25-Ω resistors and the motor) to read the total power absorbed by the induction motor. What is the function of the resistors inserted in the circuit? 2. After reading this lab handout, draw the circuit diagram for the induction motor-synchronous generator...
1. A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has...
A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has negligible stator winding resistance and a synchronous reactance of 8 Wper phase. It is operated in parallel with a three-phase, 208 V, 60 Hz power supply.Determine the excitation voltage and the power angle when the machine is delivering rated kVA at 0.8 pf lagging. Draw the phasor diagram
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The...
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The rated voltage is 217V (line-line, rms) at 60 Hz. Lm65mH, and the peak flux density in the air gap is 0.89T. Consider that the phase-a voltage reaches its positive peak at wt-0. Assuming that the rotor circuit is somehow open circuited, calculate the position(angle) of the magnetizing current space vector ims at wt-4g°.
A certain circuit consists of three resistors connected in parallel across 200V mains. The rate of...
A certain circuit consists of three resistors connected in parallel across 200V mains. The rate of production of heat in them is in the ratio of 5:3:2 and together they generate heat at the rate of 1 kWh in 2 h. Find the power used if the three resistances are connected in series across 248V mains. A 3-phase six pole, 60 hz, 230-V wound rotor motor has its stator connected in delta and its rotor connected in wye. The stator...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position of the rotor at standstill (rest position) a) Schematic view of SPPMSM b) Electrical equivalent circuit of SPPMSM Description of the motor: In Fig. a, cross-section of a Single Phase Permanent Magnet Synchronous Motor (SPPMSM) is seen. A U shaped stator is wound with a stator winding consisting of two coils connected in series (you can consider a single coil with N turns). A...
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The self-inductance of each stator winding is Laa and of the rotor is Lff. The air gap is uniform. The mutual inductance between a stator winding depends on the angular position of the rotor and may be assumed to be of the form where...
Question 2 [10 marks) A six pole, three phase induction motor, with a star connected stator winding is energised from a 380V, 50Hz supply. The ratio of the stator to rotor turns is assumed 1.8 and a full load slip of 4%. If the respective per phase rotor resistance and standstill reactance are 0.120 and 0.8502, determine: a. Torque developed at full load b. The maximum torque and the speed at maximum torque
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Prelab 1. In your lab notebook draw the schematic diagram for a three-phase wye-connected induction motor with its three-phase stator winding connected to the three-phase power supply through 25-Ω resistors. Connect two er analyzers in the circuit (between the 25-Ω resistors and the motor) to read the total power absorbed by the induction motor. What is the function of the resistors inserted in the circuit? 2. After reading this lab handout, draw the circuit diagram for the induction motor-synchronous generator...
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The rated voltage is 217V (line-line, rms) at 60 Hz. Lm65mH, and the peak flux density in the air gap is 0.89T. Consider that the phase-a voltage reaches its positive peak at wt-0. Assuming that the rotor circuit is somehow open circuited, calculate the position(angle) of the magnetizing current space vector ims at wt-4g°.
