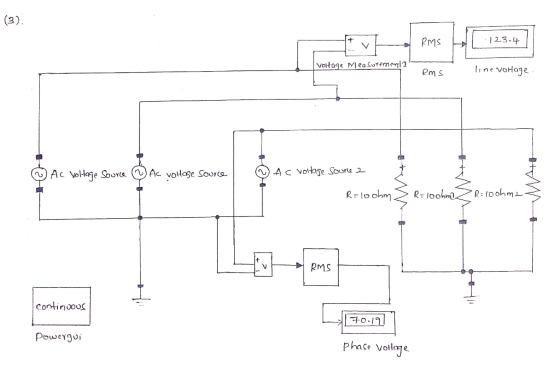

Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connecte...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta connected load with the impedance of each phase ?∆ = 60∠450Ω. The impedance of the threephase line connecting the source and the load is ?l = 2∠300Ω/phase. Calculate the line current and phase current magnitudes of the load. Also find real and reactive power at the terminals (abc) of the load and at the terminals (ABC) of the source.
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
A three-phase system is in "abc" sequence with a wye-connected load, and one phase voltage is...
A three-phase system is in "abc" sequence with a wye-connected load, and one phase voltage is given by ?AN = 60V?40° . What is the line voltage ?CA ?
3- A balanced wye-connected load of (4 + j3) Ω is connected across a three-phase delta...
3- A balanced wye-connected load of (4 + j3) Ω is connected across a three-phase delta connected source. the source phase voltage is 173 V . • Find the load current. • Find the power factor, P and Q
A 3-phase Y-connected motor is connected to a three phase Y-connected source with 440V line voltage....
A 3-phase Y-connected motor is connected to a three phase Y-connected source with 440V line voltage. It draws a line current of 5A from the source. If the power factor of the motor is 0.8, calculate Active power and Reactive power absorbed by the load Total Apparent power
4-9 Question Completion Status: QUESTION 4 A three phase delta source is connected to a three...
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find t
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find the line currents and the phase currents in each load. (Hint: use per phase analysis, then do angle shift for each phase.)
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
