I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...

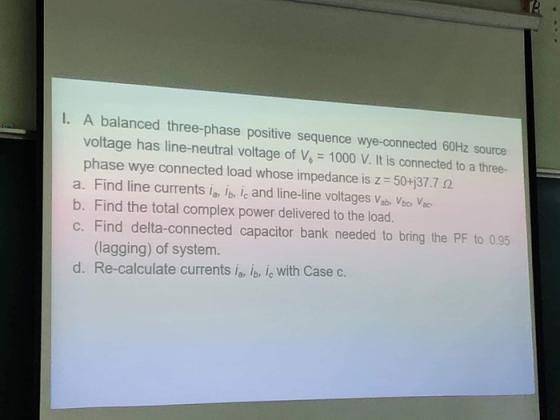

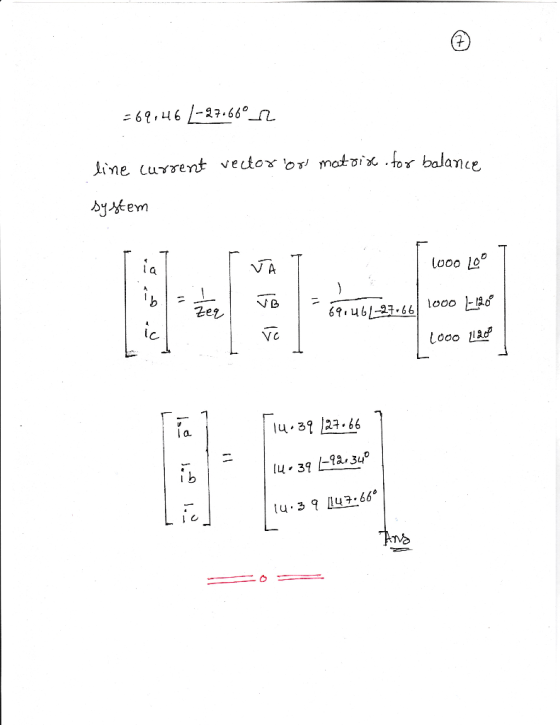

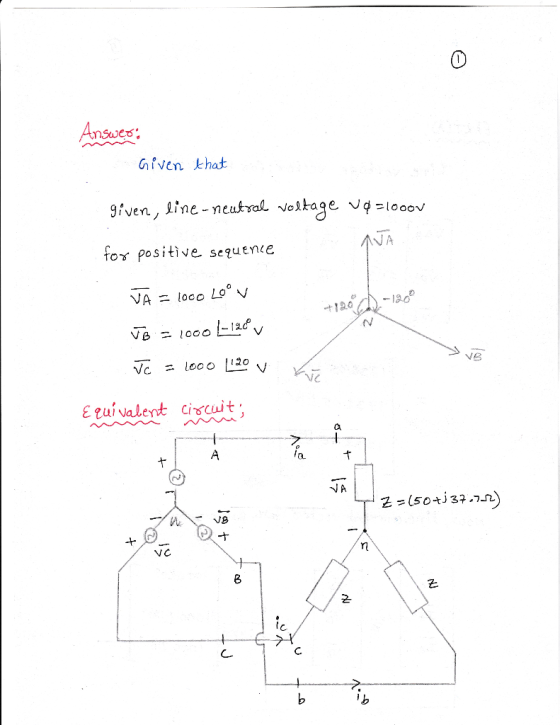

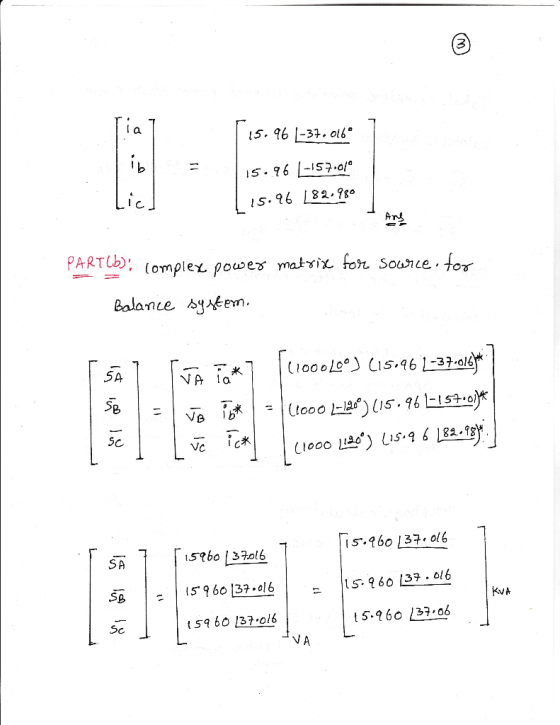

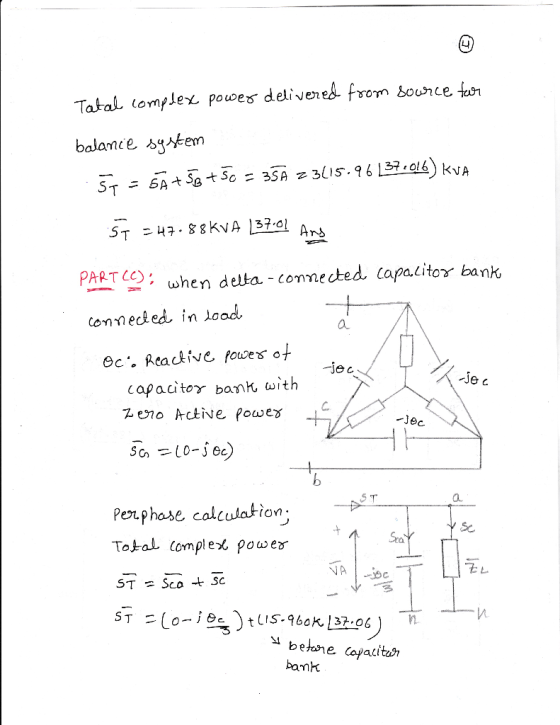

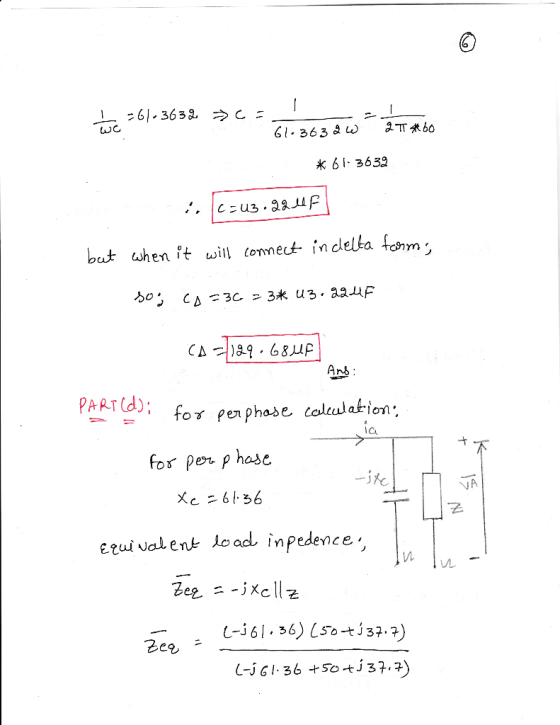

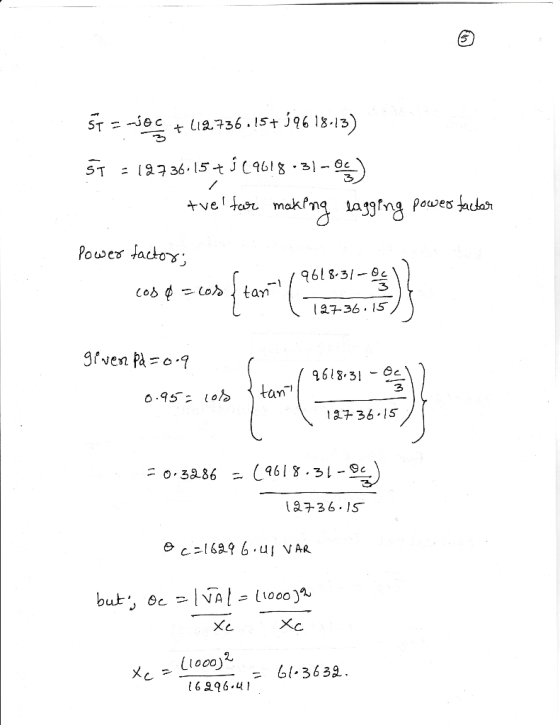

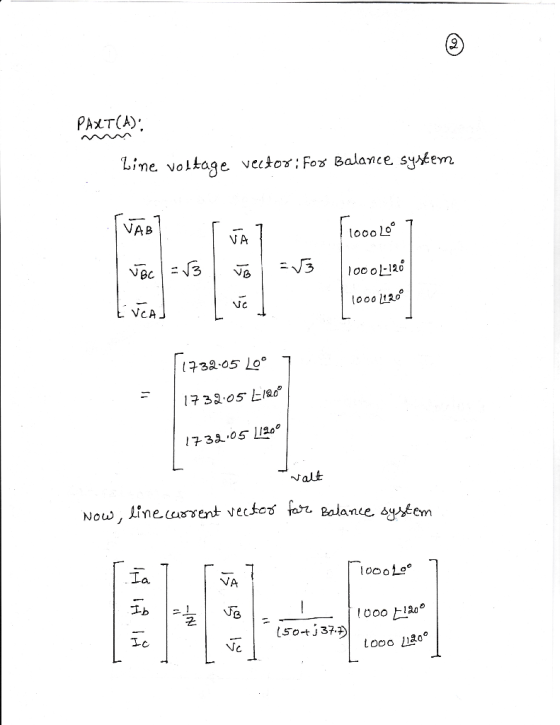

I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
A wye-delta balanced three-phase system with a positive phase sequence has negligible line impedance and a...
A wye-delta balanced three-phase system with a positive phase sequence has negligible line impedance and a load impedance of Z, = (12+j8) 12. If LAB=14.42286.31° A-rms, determine the line currents and the source voltages.
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21...
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21 ?, is connected in delta, and the other load has per phase impedance 15 2 and is connected in wye. Ignore the line impedance. If the line voltage is a 208230° Vrms, determine (a) the phase voltage for phase-a, ) the line current Ia*, (c) the phase currents in the delta load (d) the complex power of the load and the power factor.
1. A balanced delta-connected load has 12 +j16 ohms impedance per phase, and is energized by...
1. A balanced delta-connected load has 12 +j16 ohms impedance per phase, and is energized by 208 V line-to-line. The phase sequence is ‘a-b-c'. (a) Find the line and phase voltages and currents at the delta load, and show them in a phasor diagram. (b) If the delta-connected load is rewired and connected in wye, show the line and phase voltages and currents at the wye load in a phasor diagram.
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltag...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta connected load with the impedance of each phase ?∆ = 60∠450Ω. The impedance of the threephase line connecting the source and the load is ?l = 2∠300Ω/phase. Calculate the line current and phase current magnitudes of the load. Also find real and reactive power at the terminals (abc) of the load and at the terminals (ABC) of the source.
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find t
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find the line currents and the phase currents in each load. (Hint: use per phase analysis, then do angle shift for each phase.)
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
A wye-delta balanced three-phase system with a positive phase sequence has negligible line impedance and a load impedance of Z, = (12+j8) 12. If LAB=14.42286.31° A-rms, determine the line currents and the source voltages.
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21 ?, is connected in delta, and the other load has per phase impedance 15 2 and is connected in wye. Ignore the line impedance. If the line voltage is a 208230° Vrms, determine (a) the phase voltage for phase-a, ) the line current Ia*, (c) the phase currents in the delta load (d) the complex power of the load and the power factor.
1. A balanced delta-connected load has 12 +j16 ohms impedance per phase, and is energized by 208 V line-to-line. The phase sequence is ‘a-b-c'. (a) Find the line and phase voltages and currents at the delta load, and show them in a phasor diagram. (b) If the delta-connected load is rewired and connected in wye, show the line and phase voltages and currents at the wye load in a phasor diagram.
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
