Homework Answers
Add Answer to:

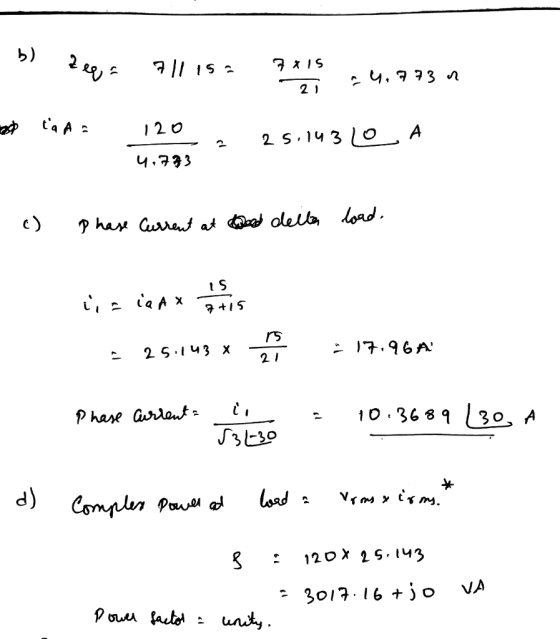

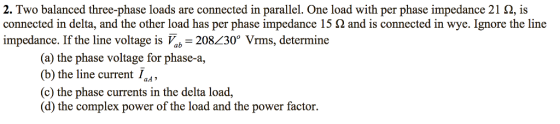

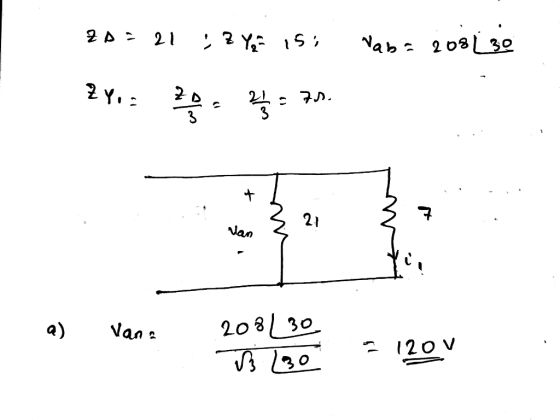

2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21...
Three balanced three-phase loads are connected in parallel. Load 1 is Y-connected with an impedance of...
Three balanced three-phase loads are connected in parallel. Load 1 is Y-connected with an impedance of 400+j300 2/0; load 2 is A-connected with an impedance of 2400-j18000/0; and load 3 is 172.8+j2203.2 kVA. The loads are fed from a distribution line with an impedance of 2+j16 0/0. The magnitude of the line-to-neutral voltage at the load end of the line is 2413 kV. Calculate the total complex power at the sending end of the line. :) Magnitude of the total...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two balanced three-phase loads that are connected in parallel. One of the loads is Y- connected with an impedance of (30 + j40) Ω per phase, and the other is delta- connected with an impedance of (60 + j45) Ω per phase. The line is energized at the sending end from a 60-Hz, three phase, balanced voltage source of 120√3 V (rms, line- to-line). Determine...
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line...
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line with an impedance (0.2 +j1.0) 12/phase serves two balan to-line voltage at the load end of the line is 480 V (rms). Load 1: Wye-connected and absorbs a total of 200 kW with a lagging p.f. of 0.87. Load 2: Delta-connected with an impedance of (20+30) 2/phase. a. Draw the single phase representation of the circuit b. How much current flows through phase A...
Please quickly .I will grade 2. Three balanced three-phase loads are connected in parallel. Load 1...
Please quickly .I will grade
2. Three balanced three-phase loads are connected in parallel. Load 1 is Y- connected with an impedance of 400 + 13001/0 load 2 is A-connected with an impedance of 2400 - 218000/0; and load 3 is 172.8 + j2203.2 kVA. The loads are fed from a distribution line with an impedance of 2 + j1612/0. The magnitude of the line-to-neutral voltage at the load end of the line is 24V3 kv. a) Calculate the total...
1- A balanced delta connected load of 15 + j18 12 per phase is connected at...
1- A balanced delta connected load of 15 + j18 12 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + j2 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of the...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
Three balanced three-phase loads are connected in parallel. Load 1 is Y-connected with an impedance of 400+j300 2/0; load 2 is A-connected with an impedance of 2400-j18000/0; and load 3 is 172.8+j2203.2 kVA. The loads are fed from a distribution line with an impedance of 2+j16 0/0. The magnitude of the line-to-neutral voltage at the load end of the line is 2413 kV. Calculate the total complex power at the sending end of the line. :) Magnitude of the total...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line with an impedance (0.2 +j1.0) 12/phase serves two balan to-line voltage at the load end of the line is 480 V (rms). Load 1: Wye-connected and absorbs a total of 200 kW with a lagging p.f. of 0.87. Load 2: Delta-connected with an impedance of (20+30) 2/phase. a. Draw the single phase representation of the circuit b. How much current flows through phase A...
Please quickly .I will grade
2. Three balanced three-phase loads are connected in parallel. Load 1 is Y- connected with an impedance of 400 + 13001/0 load 2 is A-connected with an impedance of 2400 - 218000/0; and load 3 is 172.8 + j2203.2 kVA. The loads are fed from a distribution line with an impedance of 2 + j1612/0. The magnitude of the line-to-neutral voltage at the load end of the line is 24V3 kv. a) Calculate the total...
1- A balanced delta connected load of 15 + j18 12 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + j2 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of the...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
