PHYSICS!! PLEASE HELP! MY
TEACHER GIVES US THE ANSWERS BUT WE HAVE TO SHOW ALL WORK! PLEASE
SHOW WORK FOR EACH PART OF THE QUESTION! THANK YOU!!
PLEASE GIVE IT A THUMBS UP AND LET ME KNOW IF YOU HAVE ANY DOUBT.
---------------------------------------------------------------------------------------------------------------------------
First of all,we will find speed of sound for given temperature
v = 331m/s + 0.6m/s/C * T
v = 331 + 0.6*18.9
v = 342.34 m/s
Now, we will use Doppler's equation
(a) Here bat is source and wall is observer
f' = (v / v - vs)f
v = Velocity of sound or light in medium,
f = Real frequency,
f' = Apparent frequency
vs = speed of source
f' = (342.34 / 342.34 - 0.025*342.34 )39,000
f' = 40000 Hz
Therefore, frequency detected by wall is 40000 Hz
------------------------------------------------------------------------------------------------
(b) Now, the frequency which is reflected off the wall is caught by bat
so,
f = (342.34 + 0.025 * 342.34 / 342.34 ) * 40000
f = (350.9 / 342.34) * 40000
f = 41001 Hz
PHYSICS!! PLEASE HELP! MY TEACHER GIVES US THE ANSWERS BUT WE HAVE TO SHOW ALL WORK!...

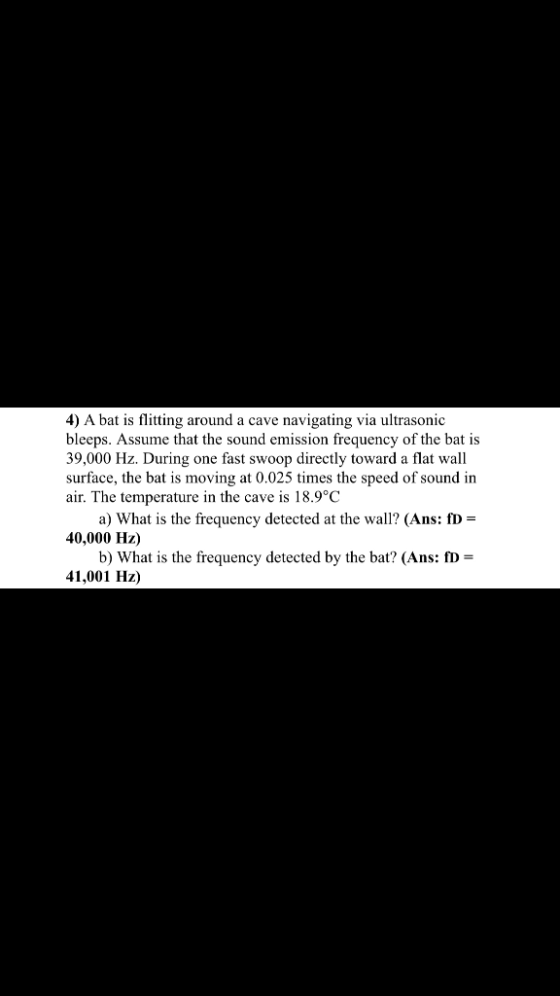

A bat is flitting about in a cave navigating via ultrasonic bleeps. Assume that the sound emission frequency of the bat is 39,000 Hz. During one fast swoop directly toward a flat wall surface, the bat is moving at 0.025 times the speed of sound in air. The temperature in the cave is 66°F. a) What is the frequency detected by the wall? b) What is the frequency detected by the bat?
