1. Use Turtle Graphics to create a tic tac toe grid in Python. Write a Python...

Question

Question

1. Use Turtle Graphics to create a tic tac toe grid in Python. Write a Python...

1. Use Turtle Graphics to create a tic tac toe grid in Python.

Write a Python program that prints a tic tac toe grid. Use Turtle Graphics to create the

graphic.

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

CODE

===============

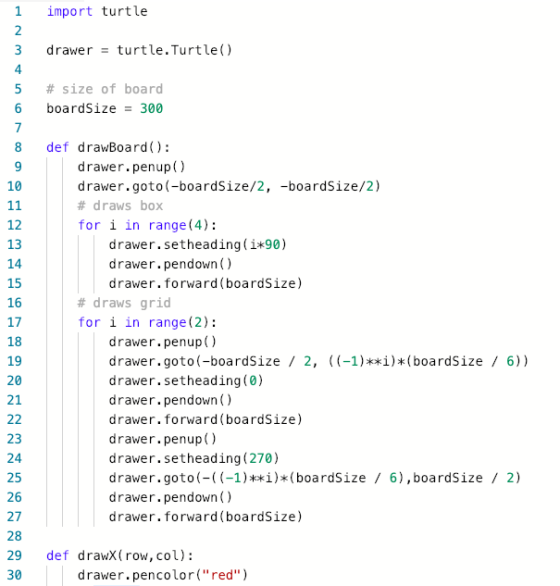

import turtle

drawer = turtle.Turtle()

# size of board

boardSize = 300

def drawBoard():

drawer.penup()

drawer.goto(-boardSize/2, -boardSize/2)

# draws box

for i in range(4):

drawer.setheading(i*90)

drawer.pendown()

drawer.forward(boardSize)

# draws grid

for i in range(2):

drawer.penup()

drawer.goto(-boardSize / 2, ((-1)**i)*(boardSize / 6))

drawer.setheading(0)

drawer.pendown()

drawer.forward(boardSize)

drawer.penup()

drawer.setheading(270)

drawer.goto(-((-1)**i)*(boardSize / 6),boardSize / 2)

drawer.pendown()

drawer.forward(boardSize)

def drawX(row,col):

drawer.pencolor("red")

# change is 1/3 board size

change = boardSize/3

# math for hypotenuse of right triangle divided by 3

forwardAmt = ((2*boardSize**2)**(1/2))/3

# setting x and y cord

x = col * change - boardSize/2

y = boardSize/2 - row * change

# first line

drawer.penup()

drawer.goto(x,y)

drawer.pendown()

drawer.setheading(360-45)

drawer.forward(forwardAmt)

# second line

drawer.penup()

drawer.goto(x+change,y)

drawer.pendown()

drawer.setheading(180 + 45)

drawer.forward(forwardAmt)

def drawO(row,col):

drawer.pencolor("blue")

# change is 1/3 board size

change = boardSize / 3

# set x and y cord

x = col * change - boardSize / 2

y = boardSize / 3 - row * change

# moves to x and y cord and draws circle

drawer.setheading(270)

drawer.penup()

drawer.goto(x,y)

drawer.pendown()

drawer.circle(boardSize/6)

drawBoard()

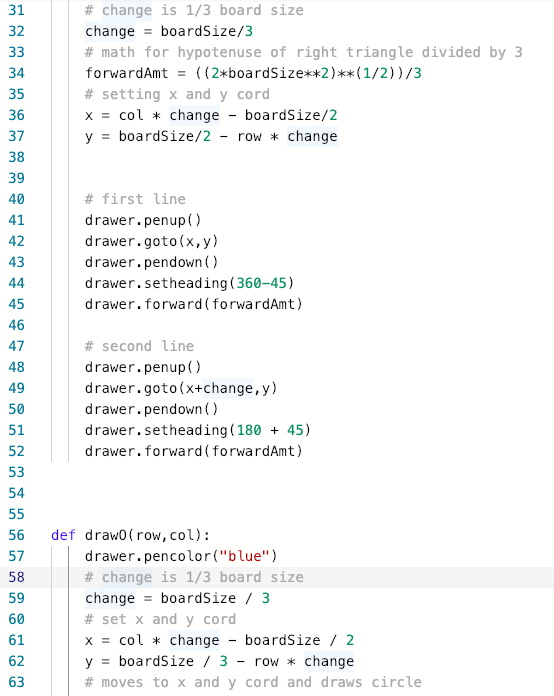

# change is 1/3 board size change - boardSize/3 # math for hypotenuse of right triangle divided by 3 forwardAmt((2*boardSize*

OUTPUT

> Is there any chance you know how to make a graph paper using turtle graphic when the lines have a length and of 300?

Flor García Mon, Feb 28, 2022 8:00 PM

Add a comment
