parts A and B please. Thank you!
Homework Answers

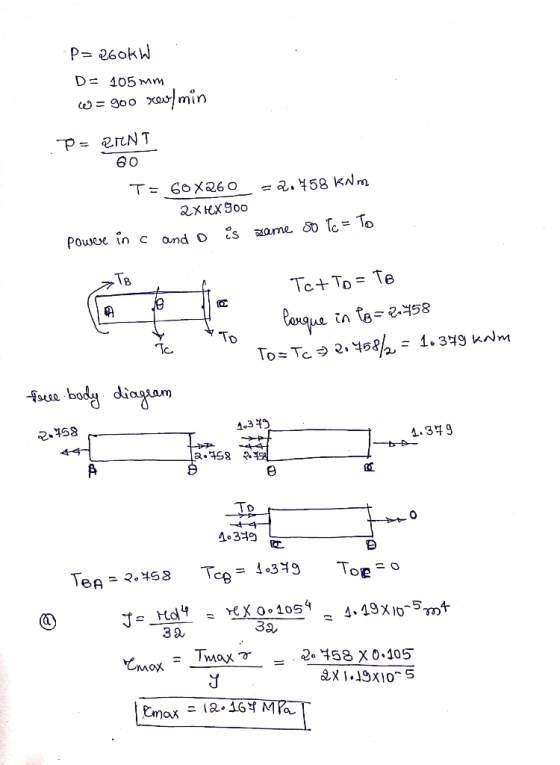

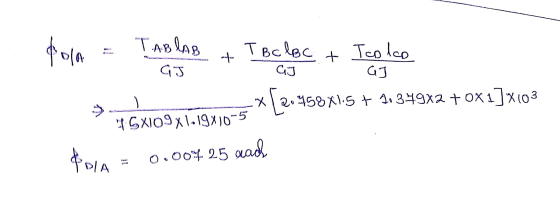

![I TABLAB a TBC BC + Toolco GJ GJ GI -X12.458X1.5 + 1.349x2 + 0x1] X103 5X109X119x10-5 Pola = 0.004 25 cach](http://img.homeworklib.com/questions/21307590-aa8a-11ea-8dd2-e3a44cbb63fb.png?x-oss-process=image/resize,w_560)
Add Answer to:
parts A and B please. Thank you!

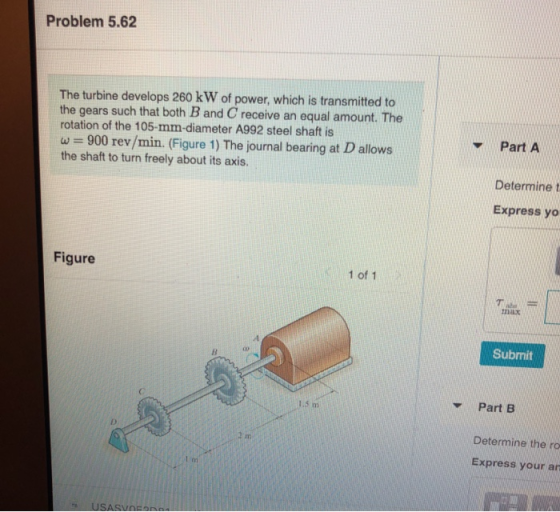

Problem 5.62 The turbine develops 260 kW of power,...
Problem 5.58 < 18 of 18 > a Review Part A The turbine develops 150 kW...
Problem 5.58 < 18 of 18 > a Review Part A The turbine develops 150 kW of power, which is transmitted to the gears such that both C and I receive an equal amount. The rotation of the 100-CELELL-diameter A-36 steel shaft is w = 800 rev/min. The journal bearing at allows the shaft to turn freely about its axis. The shear modulus of elasticity for the A-36 steel is 75 GPa (Figure 1) Determine the absolute maximum shear stress...
The turbine develops 150 kW of power, which is transmitted to the gears such that both...
The turbine develops 150 kW of power, which is transmitted to the gears such that both C and D receive an equal amount. If the rotation of the A-36 steel shaft (inner diameter of 25 mm and an outer diameter of 100 mm) is 600 rev/min., determine the absolute maximum shear stress in the shaft and the rotation of end B of the shaft relative to E. The journal bearing at E allows the shaft to turn freely about its...
Prob #5: The turbine develops 150 kW of power, which is transmitted to the gears such...
Prob #5: The turbine develops 150 kW of power, which is transmitted to the gears such that C and D each receive 50%. The steel shaft has a 100 mm diameter, the rotation is ω = 700 rev/min., and the shear modulus is Gst-75 GPa. The journal bearing at E allows the shaft to turn freely about its axis rn 17· The torque delivered by gear D is A) 93.8 B)512 C)895 D1025 E) 1195 F) 1790 The torque in...
The two 3-ft-long shafts are made of 2014-16 aluminum. Each has a diameter of 1.5 in....
The two 3-ft-long shafts are made of 2014-16 aluminum. Each has a diameter of 1.5 in. and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by bearings at C and D, which allow free rotation of the shafts along their axes. (Figure 1) A torque of T=500 lb-ft is applied to the top gear as shown. Part A Determine the maximum shear...
(Torsion: Angle of Twist Problem 5.49 < 3 of 3 > The splined ends and gears...
(Torsion: Angle of Twist Problem 5.49 < 3 of 3 > The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown where T = 200 N.m. 1200 Nm 400 Nm B 500 mm The shaft has a diameter of 30 mm. Part A Determine the angle of twist of end B with respect to end A. Express your answer to three significant figures and include appropriate units. HA O 2 ? $B/A =...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure 1). The shaft has a diameter of 0.5 in, and is fixed to the wall at C. Part A Determine the normal stress acting at point A. Express your answer to three significant figures and include appropriate units. ЦА ? (CA), - Value Units Submit Request Answer Part B Determine the shear stress acting along the yr plane at point A. Express your answer...
The A-36 steel drill shaft of an oil well extends 12000 ft into the ground. The...
The A-36 steel drill shaft of an oil well extends 12000 ft into the ground. The pipe used to drill the well is suspended freely from the derrick at A. (Figure 1) The shaft consists of three different sizes of pipe, AAB = 2.10 in.2, ABC = 1.50 in?, and ACD = 1.00 in., each having the length and weight per unit length indicated. Figure < 1 of 1 > AAB 5000 ft WAB= 3.2 lb/ft Авс 5000 ft Wec=...
4.54 p=530 kN please help! Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the...
4.54
p=530 kN
please help!
Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P 530 kN is applied Express your answer to three significant figures and include appropriate units. HAO? F = Value Units Submit Request...
▼ Part A The A-36 steel dinill shaft of an oil well extends 12000 ft into...
▼ Part A The A-36 steel dinill shaft of an oil well extends 12000 ft into the ground. The pipe used to drill the well is suspended freely from the derrick at A. (Figure 1) The shaft consists of three different sizes of pipe. AAB = 2.90 in.. ABC 2.10 in, and ACD = 1.50 in.2, each having the length and weight per unit length indicated. Determine the maximum average normal stress in pipe string AB Express your answer to...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The column is subjected to an axial force of P 190 kip Each rod has a diameter of 1 in. For A992 steel Et 29.0(103) ksi, and for high-strength concrete Ee 4.20(10) ksi (Figure 1) Determine the average normal stress in the concrete and in each rod Express your answer to three significant figures and include appropriate units o,o.-1 Value Units | Submit Part B...
Problem 5.58 < 18 of 18 > a Review Part A The turbine develops 150 kW of power, which is transmitted to the gears such that both C and I receive an equal amount. The rotation of the 100-CELELL-diameter A-36 steel shaft is w = 800 rev/min. The journal bearing at allows the shaft to turn freely about its axis. The shear modulus of elasticity for the A-36 steel is 75 GPa (Figure 1) Determine the absolute maximum shear stress...
The turbine develops 150 kW of power, which is transmitted to the gears such that both C and D receive an equal amount. If the rotation of the A-36 steel shaft (inner diameter of 25 mm and an outer diameter of 100 mm) is 600 rev/min., determine the absolute maximum shear stress in the shaft and the rotation of end B of the shaft relative to E. The journal bearing at E allows the shaft to turn freely about its...
Prob #5: The turbine develops 150 kW of power, which is transmitted to the gears such that C and D each receive 50%. The steel shaft has a 100 mm diameter, the rotation is ω = 700 rev/min., and the shear modulus is Gst-75 GPa. The journal bearing at E allows the shaft to turn freely about its axis rn 17· The torque delivered by gear D is A) 93.8 B)512 C)895 D1025 E) 1195 F) 1790 The torque in...
The two 3-ft-long shafts are made of 2014-16 aluminum. Each has a diameter of 1.5 in. and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by bearings at C and D, which allow free rotation of the shafts along their axes. (Figure 1) A torque of T=500 lb-ft is applied to the top gear as shown. Part A Determine the maximum shear...
(Torsion: Angle of Twist Problem 5.49 < 3 of 3 > The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown where T = 200 N.m. 1200 Nm 400 Nm B 500 mm The shaft has a diameter of 30 mm. Part A Determine the angle of twist of end B with respect to end A. Express your answer to three significant figures and include appropriate units. HA O 2 ? $B/A =...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure 1). The shaft has a diameter of 0.5 in, and is fixed to the wall at C. Part A Determine the normal stress acting at point A. Express your answer to three significant figures and include appropriate units. ЦА ? (CA), - Value Units Submit Request Answer Part B Determine the shear stress acting along the yr plane at point A. Express your answer...
The A-36 steel drill shaft of an oil well extends 12000 ft into the ground. The pipe used to drill the well is suspended freely from the derrick at A. (Figure 1) The shaft consists of three different sizes of pipe, AAB = 2.10 in.2, ABC = 1.50 in?, and ACD = 1.00 in., each having the length and weight per unit length indicated. Figure < 1 of 1 > AAB 5000 ft WAB= 3.2 lb/ft Авс 5000 ft Wec=...
4.54
p=530 kN
please help!
Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P 530 kN is applied Express your answer to three significant figures and include appropriate units. HAO? F = Value Units Submit Request...
▼ Part A The A-36 steel dinill shaft of an oil well extends 12000 ft into the ground. The pipe used to drill the well is suspended freely from the derrick at A. (Figure 1) The shaft consists of three different sizes of pipe. AAB = 2.90 in.. ABC 2.10 in, and ACD = 1.50 in.2, each having the length and weight per unit length indicated. Determine the maximum average normal stress in pipe string AB Express your answer to...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The column is subjected to an axial force of P 190 kip Each rod has a diameter of 1 in. For A992 steel Et 29.0(103) ksi, and for high-strength concrete Ee 4.20(10) ksi (Figure 1) Determine the average normal stress in the concrete and in each rod Express your answer to three significant figures and include appropriate units o,o.-1 Value Units | Submit Part B...
