In an RLC circuit such as that of the figure assume that R = 5.12 Ω,...

In an RLC circuit such as that of the figure assume that R = 5.12 Ω, L = 70.3 mH, fd = 87.7 Hz, and εm = 38.2 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e)power factor? What are (f) the minimum dissipation rate and the corresponding (g) phase angle and (h) power factor?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

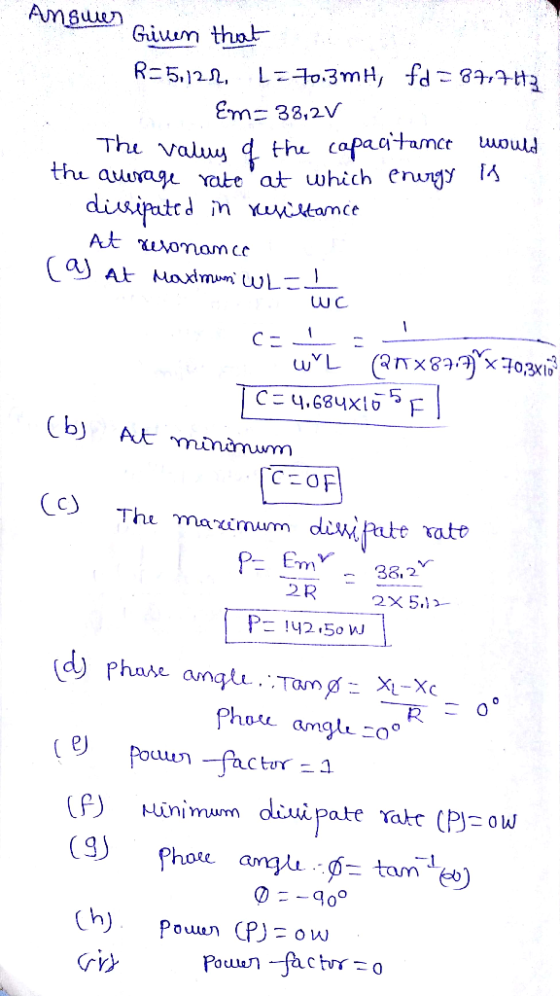

Answer #1

とm= 382V (b) A七mín.mwm Thi maximum divM ratt าว! 38,2 -. 2 R w.ni mum

0 0
Add a comment
Know the answer?
Add Answer to:
In an RLC circuit such as that of the figure assume that R = 5.12 Ω,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • In an RLC circuit such as that of the figure assume that R = 5.20 Ω,...

    In an RLC circuit such as that of the figure assume that R = 5.20 Ω, L = 45.2 mH, fd = 54.5 Hz, and εm = 37.8 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e) power factor? What are (f) the minimum dissipation rate and...

  • In an RLC circuit such as that of the figure assume that R = 3.99 Ω,...

    In an RLC circuit such as that of the figure assume that R = 3.99 Ω, L = 77.8 mH, fd = 79.4 Hz, and εm = 31.2 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e) power factor? What are (f) the minimum dissipation rate and...

  • Chapter 31, Problem 057 In an RLC circuit such as that of the figure asssume that...

    Chapter 31, Problem 057 In an RLC circuit such as that of the figure asssume that R 6.97 , L 46.3 mH, f89.3 Hz, and m= 40.7 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e) power factor? What are (f) the minimum dissipation rate and the...

  • An RLC series circuit has a 198 Ω resistor and a 25.0 mH inductor. At 8200...

    An RLC series circuit has a 198 Ω resistor and a 25.0 mH inductor. At 8200 Hz, the phase angle is 45.0°. (a) What is the impedance? Ω (b) Find the minimum possible capacitance of the circuit. nF (c) If Vrms = 408 V is applied, what is the average power supplied? W

  • An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900...

    An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900 Hz, the phase angle is 45.0°. (a) What is the impedance (in ohms)?   Ω (b) Find the minimum possible capacitance (in nanofarads) of the circuit.   nF (c) If Vrms = 408 V is applied, what is the average power (in watts) supplied?   W

  • A series RLC circuit with a resistance of 490 Ω has capacitive and inductive reactances of...

    A series RLC circuit with a resistance of 490 Ω has capacitive and inductive reactances of 330 Ω and 460 Ω , respectively. a)What is the power factor of the circuit? b)If the circuit operates at 60 Hz, what additional capacitance should be connected to the original capacitance to give a power factor of unity? (F) c)How should the capacitors be connected?

  • An RLC circuit has a resistance of 12.7 Ω, an inductance of 15.9 mH, and a...

    An RLC circuit has a resistance of 12.7 Ω, an inductance of 15.9 mH, and a capacitance of 353.0 μF. By what factor does the impedance of this circuit change when the frequency at which it is driven changes from 60 Hz to 120 Hz? Does the impedance increase or decrease?

  • A series RLC circuit is driven by an alternating source at a frequency of 296 Hz...

    A series RLC circuit is driven by an alternating source at a frequency of 296 Hz and an emf amplitude of 78.2 V. The resistance is 27.1 Ω, the capacitance is 10.5 µF, and the inductance is 25.5 mH. What is the rms potential difference across (a) the resistor, (b) the capacitor, and (c) the inductor? (d) What is the average rate at which energy is dissipated?

  • 5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0 mH, the capacitance is 0.400 μΕ, and the resistance is 200 Ω. (a) What...

    5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0 mH, the capacitance is 0.400 μΕ, and the resistance is 200 Ω. (a) What is the phase constant in radians? (b) What is the current amplitude? 5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0...

  • In an RLC circuit, assume ω, and ω2 such that 1(joi) = 1(ju).) = Imax/V2 and Δω such that Δω-: ω2...

    In an RLC circuit, assume ω, and ω2 such that 1(joi) = 1(ju).) = Imax/V2 and Δω such that Δω-: ω2-ω| . In other words, Δω is the width of the current curve where the current has fallen to 1/V2 = 0.707 of its maximum value at the resonance frequency. At these frequencies, the power dissipated in a resistance becomes one-half of the dissipated power at the resonance frequency (they are called the half-power points). In an RLC circuit with...
