Task: Simulate the growth of a biological population. The Game of Life, invented by John H....

Task: Simulate the growth of a biological population. The Game of Life, invented by John H. Conway, is supposed to model the genetic laws for birth, survival, and death. Our implementation of the game will use a 2-dimensional array with 12 rows and 12 columns. Each cell of the array will hold either a 1 (an organism is present) or a 0 (no organism there). You will calculate 4 generations of the organisms’ birth, survival, and death.

An organism’s neighbors affect its survival. Each organism has 8 adjoining cells where its neighbors may live, as shown in this grid:



0

0

1

1

X

0

0

1

0

The neighbors for cell X would be located in the 8 shaded cells surrounding it. In the situation illustrated, X has 3 neighbors.

Rules for the game:

Birth: An organism will be born in each empty location that has exactly 3 neighbors.

Death: An organism with 4 or more organisms as neighbors will die from overcrowding. An organism with 1 or 0 neighbors will die of loneliness.

Survival: An organism with 2 or 3 neighbors will survive to the next generation.

You will not have to process the border cells (i.e., rows 0 and 11, and columns 0 and 11)

of the game, but the border cells’ contents will affect the internal cells. Assume that border cells are infertile regions where organisms can neither survive nor be born.

The population configuration as shown below will be the initial contents of one array. For each generation, calculate the results of the first array’s births, deaths, and survivals, and store those results in a second array. After printing the results, copy the second array’s data back into the first one (replacing the original data), and repeat the process to calculate the next generation.

Input: The first array will be initialized as follows:

int life[12][12] =

            { {0,0,0,0,0,0,0,0,0,0,0,0},

            {0,0,0,0,1,0,1,0,1,0,0,0},

            {0,0,0,1,0,1,0,1,0,0,0,0},

            {0,0,0,0,0,0,0,0,0,0,0,0},

            {0,0,0,0,1,0,1,0,1,0,0,0},

            {0,0,0,1,0,1,0,1,0,0,0,0},

            {0,1,1,1,1,1,1,1,1,1,1,0},

            {0,0,0,0,1,1,1,1,0,0,0,0},

            {0,0,0,0,1,0,1,0,1,0,0,0},

            {0,0,0,1,0,1,0,1,0,0,0,0},

                  {0,0,0,0,1,0,1,0,1,0,0,0},

            {0,0,0,0,0,0,0,0,0,0,0,0} };

Output: You will print out the initial situation and the results of each of 4 generations of growth. Send all the print output to a single external file. Provide header information (including name and date) in your printed version, and include row numbers and column numbers. Line up the columns. The initial generation would look something like this:

                                                            Game of Life

                                                             ---------------

                                                  Original Configuration:

                         0   1   2   3   4   5   6   7   8   9 10 11

                  0    0   0   0   0   0   0   0   0   0   0   0   0

                   1    0   0   0   0   1   0   1   0   1   0   0   0

                   2    0   0   0   1   0   1   0   1   0   0   0   0

                   3    0   0   0   0   0   0   0   0   0   0   0   0

                   4    0   0   0   0   1   0   1   0   1   0   0   0

                   5    0   0   0   1   0   1   0   1   0   0   0   0

                   6    0   1   1   1   1   1   1   1   1   1   1   0

                   7    0   0   0   0   1   1   1   1   0   0   0   0

                   8    0   0   0   0   1   0   1   0   1   0   0   0

                   9    0   0   0   1   0   1   0   1   0   0   0   0

                 10    0   0   0   0   1   0   1   0   1   0   0   0

                 11    0   0   0   0   0   0   0   0   0   0   0   0

---------------------------------------------------------------------------------------------------------------------------------------------

So here is code and I want the output to send to the data file, not on the console, Also, it should run 4 generations.

Please, help me!

#include <iostream>
#include <fstream>


using namespace std;

const int SIZE = 12;
const int ALIVE = 1;
const int DEAD = 0;


void printWorld(int x[SIZE][SIZE], fstream &fout)
{
int i, j;
cout<<"\n";
fout<<"\n";
for(i = 0; i < SIZE; i++)
{
for(j = 0; j < SIZE; j++)
if(x[i][j] == ALIVE)
{
cout << " 1 ";
fout << " 1 ";
}
else
{
cout << " 0 ";
fout << " 0 ";
}
cout << "\n";
fout << "\n";
}
}

int evolve(int x[][SIZE], int row, int col)
{
int i = row;
int j = col;
return x[i-1][j-1] + x[i-1][j] + x[i-1][j+1] + x[i][j-1] + x[i][j+1] + x[i+1][j-1] + x[i+1][j] +x[i+1][j+1];
}

void copyWorld(int x[][SIZE], int y[][SIZE])
{
int i, j;
for(i = 0; i < SIZE; i++)
for(j = 0; j < SIZE; j++)
y[i][j] = x[i][j];
}

int extinct(int x[][SIZE])
{
int i, j, flag = 0;
for(i = 0; i < SIZE; i++)
for(j = 0; j < SIZE; j++)
if(x[i][j] == 1)
return 1;
return flag;
}

int main()
{
int i, j;
int nextGeneration[SIZE][SIZE];
int currentGeneration[SIZE][SIZE] = { {0,0,0,0,0,0,0,0,0,0,0,0},
{0,0,0,0,1,0,1,0,1,0,0,0},
{0,0,0,1,0,1,0,1,0,0,0,0},
{0,0,0,0,0,0,0,0,0,0,0,0},
{0,0,0,0,1,0,1,0,1,0,0,0},
{0,0,0,1,0,1,0,1,0,0,0,0},
{0,1,1,1,1,1,1,1,1,1,1,0},
{0,0,0,0,1,1,1,1,0,0,0,0},
{0,0,0,0,1,0,1,0,1,0,0,0},
{0,0,0,1,0,1,0,1,0,0,0,0},
{0,0,0,0,1,0,1,0,1,0,0,0},
{0,0,0,0,0,0,0,0,0,0,0,0} };

char choice;
fstream fout;

fout.open("ConwayGenerations.txt", fstream::app);
while(1)
{
copyWorld(currentGeneration, nextGeneration);

for(i = 1; i < SIZE-1; i++)
for(j = 1; j < SIZE-1; j++)
if(evolve(currentGeneration, i, j) < 2 || evolve(currentGeneration, i, j) > 3)

nextGeneration[i][j] = DEAD;
else if(evolve(currentGeneration, i, j) == 3)
nextGeneration[i][j] = ALIVE;

cout << "OldWorld:\n";
printWorld(currentGeneration, fout);
cout << endl;

cout <<"NewWorld:\n";
printWorld(nextGeneration, fout);
cout << endl;

cout << "Do you want to evolve into further generation?(Y/N): ";
cin >>choice;

copyWorld(nextGeneration, currentGeneration);
if(choice == 'N' || choice == 'n')
return 0;
}
}

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

// C++ program to simulate Game of life for the given original configuration and write the output for 4 generations in a file

#include <iostream>

#include <fstream>

using namespace std;

const int SIZE = 12;

const int ALIVE = 1;

const int DEAD = 0;

void printWorld(int x[SIZE][SIZE], fstream &fout);

int evolve(int x[][SIZE], int row, int col);

void copyWorld(int x[][SIZE], int y[][SIZE]);

int extinct(int x[][SIZE]);

int main() {

               int i, j;

               int nextGeneration[SIZE][SIZE];

               int currentGeneration[SIZE][SIZE] = { {0,0,0,0,0,0,0,0,0,0,0,0},

               {0,0,0,0,1,0,1,0,1,0,0,0},

               {0,0,0,1,0,1,0,1,0,0,0,0},

               {0,0,0,0,0,0,0,0,0,0,0,0},

               {0,0,0,0,1,0,1,0,1,0,0,0},

               {0,0,0,1,0,1,0,1,0,0,0,0},

               {0,1,1,1,1,1,1,1,1,1,1,0},

               {0,0,0,0,1,1,1,1,0,0,0,0},

               {0,0,0,0,1,0,1,0,1,0,0,0},

               {0,0,0,1,0,1,0,1,0,0,0,0},

               {0,0,0,0,1,0,1,0,1,0,0,0},

               {0,0,0,0,0,0,0,0,0,0,0,0} };

               // open the file in append mode

               fstream fout;

               fout.open("ConwayGenerations.txt", fstream::app);

               int num_generation = 0;

               fout<<"\t\tGame of life\n";

               fout<<"\t\t---------------------\n\n";

               fout<<"Original Configuration:\n";

               printWorld(currentGeneration, fout);

               // loop to simulate for 4 generation of growth

               while(num_generation < 4)

               {

                              copyWorld(currentGeneration, nextGeneration);

                              for(i = 1; i < SIZE-1; i++)

                                             for(j = 1; j < SIZE-1; j++)

                                                            if(evolve(currentGeneration, i, j) < 2 || evolve(currentGeneration, i, j) > 3)

                                                                           nextGeneration[i][j] = DEAD;

                                                            else if(evolve(currentGeneration, i, j) == 3)

                                                                           nextGeneration[i][j] = ALIVE;

                              fout <<"Configuration "<<(num_generation+1)<<"\n";

                              printWorld(nextGeneration, fout);

                              copyWorld(nextGeneration, currentGeneration);

                              num_generation++;

               }

               fout.close();

               return 0;

}

void printWorld(int x[SIZE][SIZE], fstream &fout)

{

               int i, j;

               fout<<"\n\t";

               for(i=0;i<SIZE;i++)

               {

                              fout<<i<<"\t";

               }

               fout<<"\n\n";

               for(i = 0; i < SIZE; i++)

               {

                              fout<<i<<"\t";

                              for(j = 0; j < SIZE; j++)

                                             {

                                                            fout<<x[i][j]<<"\t";

                                             }

                              fout << "\n";

               }

               fout<<"\n";

}

int evolve(int x[][SIZE], int row, int col)

{

               int i = row;

               int j = col;

               return x[i-1][j-1] + x[i-1][j] + x[i-1][j+1] + x[i][j-1] + x[i][j+1] + x[i+1][j-1] + x[i+1][j] +x[i+1][j+1];

}

void copyWorld(int x[][SIZE], int y[][SIZE])

{

               int i, j;

               for(i = 0; i < SIZE; i++)

                              for(j = 0; j < SIZE; j++)

                                             y[i][j] = x[i][j];

}

int extinct(int x[][SIZE])

{

               int i, j, flag = 0;

               for(i = 0; i < SIZE; i++)

               for(j = 0; j < SIZE; j++)

               if(x[i][j] == 1)

                              return 1;

               return flag;

}

// end of program

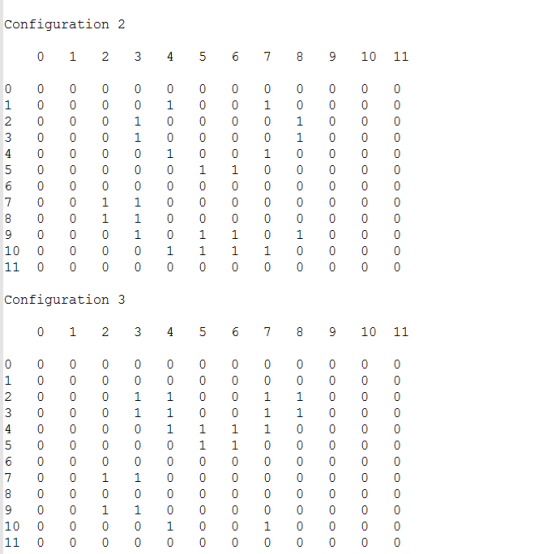

Output:

Game of life original Configuration: 0 123 4 5 678 9 10 11 1 0 00 0 1 01 0 10 0 0 2 0 001 01 0 1000 0 3 0 00 000 0 000 0 0 4

Configuration <2 0 1 23 45678910 11 1 0 00 0 1 0 0 100 0 0 2 0 001 000 0 1 00 0 3 0 00 1 00 0 0 10 0 0 4 0 00 0 1 0 0 100 0 0

1 000000000000 1 000000000000 9 000000000000 8 001010000000 7 001001000000 6 000000000000 5 000000000000 4 001001000000 3 001
