MATLAB
CODE:
t=0:0.01:10;
x1 = t>=2;
x2 = t>=4;
us=x1-x2;
h=exp(-t)-exp(-2*t);
y=conv(h,us);

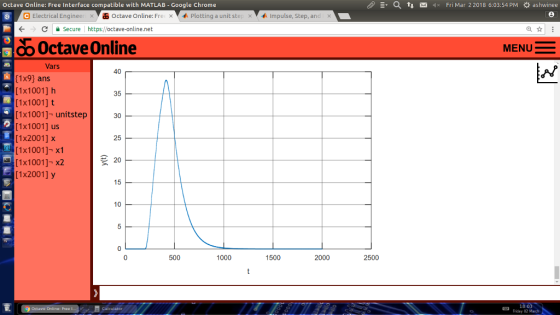

plot(y);
grid();
xlabel('t');
ylabel('y(t)')

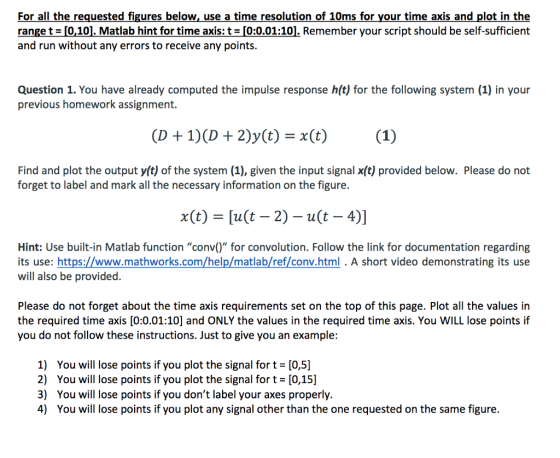

For all the requested figures below, use a time resolution of 10ms for your time axis...
Please read the instructions carefully and show me the matlab
code in detail and the graph
For all the questions below, whenever necessary, use a time resolution of 10ms for your time axis and plot in the range t 10,10]. Matlab hint for time axis: t [0:0.01:101 Remember your script should be self-sufficient and run without any errors to receive any points. Question 1. Find the impulse response h(t) for the LTIC system (1) provided below, using Matlab's built in...
