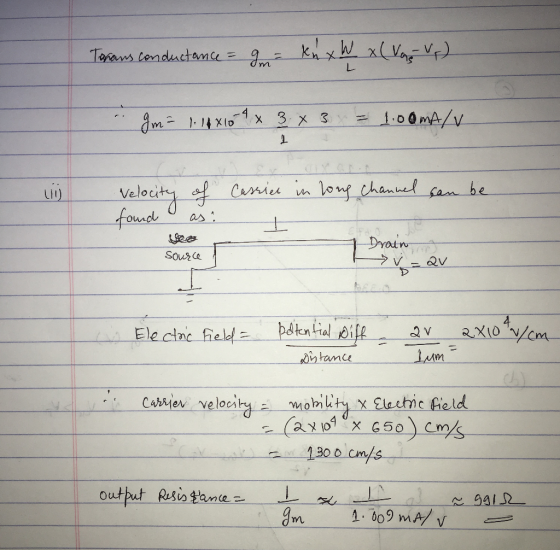

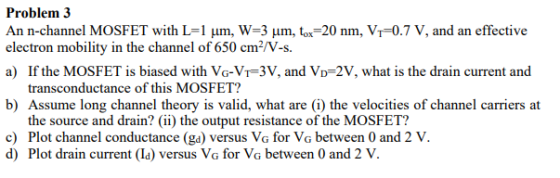

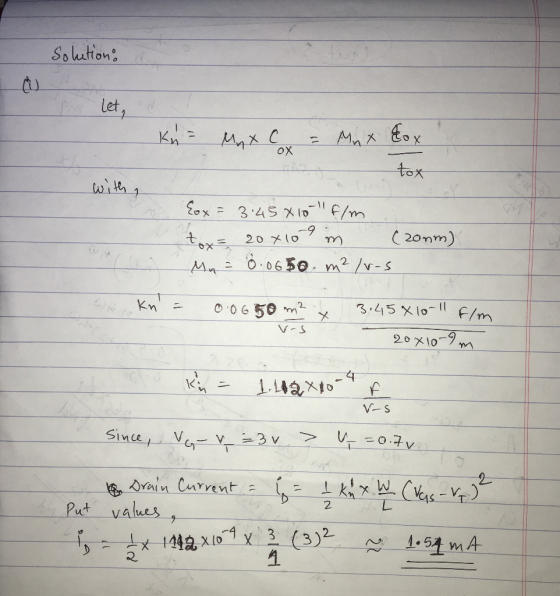

Problem 3 An n-channel MOSFET with L=1 um, W=3 um, tox=20 nm, V=0.7 V, and an...
3. For an n-channel MOSFET with gate oxide (SiO2) thickness of 30 nm, threshold voltage of 0.7 V, Z = 30 um, and length of the device is 0.9 μm, calculate the drain current for VG-3 V and VD-0.2 V. Assume that the electron channel mobility is 200 cm'/V-sec. What will be the required drain current to drive the MOS in saturation region? How the drain current will change if HfO2 with Ks 25 will be used as a gate...
2. Square-law theory of the MOSFET Biases VGs 3 V and Vbs 0 V are applied to an ideal n-channel MOSFET with W 70 um, L-7m, An 550 cm2/V.s, tox 50 nm, and V 1 V. Making use of the square-lavw theory, (a) determine the inversion layer charge/cm, at the midpoint 0, = L/2) of the channel. (b) determine the drain conductance (gd dip/dvps) at the specified bias point. Repeat the above calculation for Vas3 V and VDs 3 V....
Please help, and explain as much as possible. Thank
you!
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...
An n-channel MOSFET has parameters VTN = 0.75 V, W = 40 µm, L = 4 µm, tox = 450 Å, and µn = 650 cm2/V-s. Determine the value of the drain current if the transistor is biased in the saturation region and VGS = 2 VTN.
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in
the figure. The VT = 1 V, tox = 100 nm
(SiO2) and the source is grounded. (a) What regions of operation do
points (1), (2), and (3) correspond to? (b) What is the applied
gate voltage? (c) What is the inversion charge density (in
electrons per cm2) at the source end of the channel, n(y = 0), and
at the drain end of the channel, n(y =...
Vgs for part b, not Vds
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ,-425 cm2V-1 s-1, tox-11 nm, w: 20 μm' and L-1.2 μm at T-300 K. nm, W- 20 a) Plot the drain current ID [mA] versus drain-source voltage Vos over the range 0 < VD 3V with VGS--0.8 V, VGs 0 V and Vas +0.8 V b) Plot root saturation current ID12(sat) [mA12] versus gate-source voltage V6s over the range...
Q2 MOSFET and I-V Curves (Total 30 pts) Q2.1 Consider the band diagrams (conduction band) of a N-MOSFET along the channel (x) direction as shown in fig. 1. In fig. 1, the solid curve shows the band diagram with the gate voltage VG = 0. All the variables have their usual meaning. Which of the dashed curves (case I or case II) in fig. 1 represents of the band diagram (conduction band) of the N-MOSFET with VG >0? 5 pts...
Calculate the current ID in an n-channel MOSFET with following parameters: VTH=0.4 V, W=20 µm, L=0.8 µm, µn=650 cm2 /V·s, Cox=0.17×10-6 F/cm2 . Determine the current when the transistor is biased in the saturation region for VGS=0.8 V.
Calculate Vrofa Si n-channel MOSFET with @ms =-0.25 V, 100 nm gate oxide thickness, NA = 1017 /cm, and oxide charge density 5 x 1018 C/cm2 for a substrate bias of -2 V. (QD = 6x10-8 C/cm) If the channel mobility is un = 250 cm-/V-sec, then what will be the drive current for a 50-nm channel MOSFET with gate bias at 2 V working at satu- ration region? The length of the MOSFET is 2 um.
4. Consider an N channel MOSFET with the following parameters L=1.5e-6m Na=1e16 W=25e-6m Tox=500 angstroms μn=600 Q’ss=10^11 ?ms=-1.13 The saturation current density of the device at a gate bias of 2V, and 5V Calculate the Vds(sat) at each of these gate voltages.
