Calculate the current ID in an n-channel MOSFET with following parameters: VTH=0.4 V, W=20 µm, L=0.8...

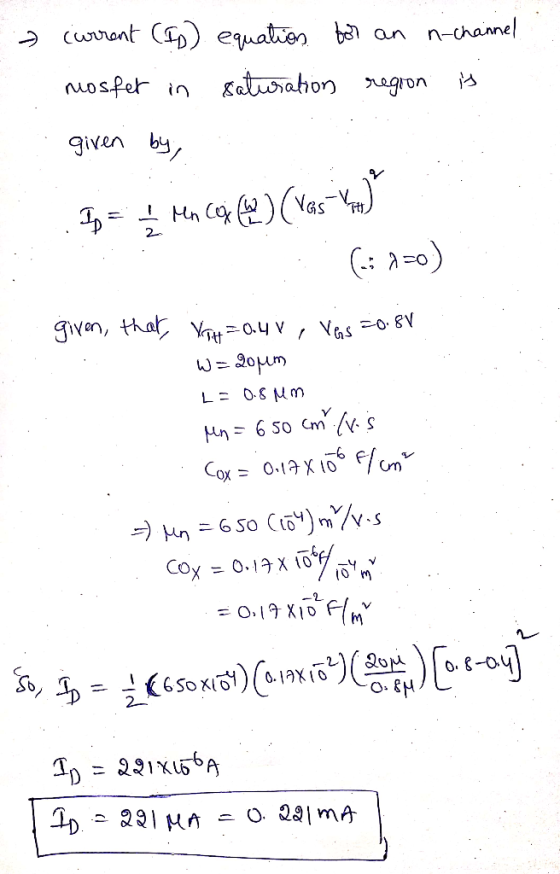

Calculate the current ID in an n-channel MOSFET with following parameters: VTH=0.4 V, W=20 µm, L=0.8 µm, µn=650 cm2 /V·s, Cox=0.17×10-6 F/cm2 . Determine the current when the transistor is biased in the saturation region for VGS=0.8 V.
Homework Answers
Add Answer to:
Calculate the current ID in an n-channel MOSFET with following
parameters: VTH=0.4 V, W=20 µm, L=0.8...
An n-channel MOSFET has parameters VTN = 0.75 V, W = 40 µm, L = 4...
An n-channel MOSFET has parameters VTN = 0.75 V, W = 40 µm, L = 4 µm, tox = 450 Å, and µn = 650 cm2/V-s. Determine the value of the drain current if the transistor is biased in the saturation region and VGS = 2 VTN.
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ...
Vgs for part b, not Vds
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ,-425 cm2V-1 s-1, tox-11 nm, w: 20 μm' and L-1.2 μm at T-300 K. nm, W- 20 a) Plot the drain current ID [mA] versus drain-source voltage Vos over the range 0 < VD 3V with VGS--0.8 V, VGs 0 V and Vas +0.8 V b) Plot root saturation current ID12(sat) [mA12] versus gate-source voltage V6s over the range...
For the n-channel E-MOSFET transistor in the circuit, the parameters are VT N = 0.4 V,...
For the n-channel E-MOSFET transistor in the circuit, the
parameters are VT N = 0.4 V, Kn =
120μA/V2. Determine VGS, ID, and
VDS. Sketch the DC and AC load lines and plot the
Q-point. Assume AC input is connected to the gate and output is
connected to the drain.
+5 V S RD= 1.2 kΩ = 14 kΩ S R) = 6 ΚΩ: Rs= 0.5 ΚΩ –5 V
Consider an nMOS transistor with VTH = 0.4 V, Kn = 140μA/V2 , length, L =...
Consider an nMOS transistor with VTH = 0.4 V, Kn = 140μA/V2 , length, L = 0.25μm, and width, W = 1.25μm. (a) Given that VGS = 1V, determine the range of values of VDS for which the device is in the saturation region. (b) Given that VGS = 1V, determine the range of values of VDS for which the device is in the triode/linar region. (c) Plot IDS vs VGS for operation in the saturation region. Ignore channel length...
4. A p-channel MOSFET has the following parameters: K, - 0.15 mAN W/L = 20, and...
4. A p-channel MOSFET has the following parameters: K, - 0.15 mAN W/L = 20, and VT-0.4 V. Calculate the drain current ID for a. VsG = 0.8 V,Vso = 0.25 V b. Vs.-0.8V,Vso = 1.0 V c. Vs.-1.2V,VSD = 1.0 V d. Vsc = 1.2V,VSD-2.0 V. SD
Problem 4 (25 points) Consider an n-channel MOSFET at T=300K. Assume: n polysilicon gate, t =...
Problem 4 (25 points) Consider an n-channel MOSFET at T=300K. Assume: n polysilicon gate, t = 500 A, N = 2x105cm-3,9' =10cm-2 Ox a W = 5 um, L = lum, 4. = 1000m, = 3.9€ , € = 8.854x10 " F/cm Qc is the number of electronic charges per unit area in the oxide a) (10 points) Determine the threshold voltage. b) (5 points) Is the transistor enhancement or depletion mode? Explain. c) (10 points) Assume the transistor is...
An N-channel MOSFET transistor works in the saturated region. At a certain point, ID = 5mA...
An N-channel MOSFET transistor works in the saturated region. At a certain point, ID = 5mA and transconductance gm = 10 ms. VGS is now increased by 10uV. How much does the drain current ID increase?
Problem 3 An n-channel MOSFET with L=1 um, W=3 um, tox=20 nm, V=0.7 V, and an...
Problem 3 An n-channel MOSFET with L=1 um, W=3 um, tox=20 nm, V=0.7 V, and an effective electron mobility in the channel of 650 cm/V-s. a) If the MOSFET is biased with VG-V=3V, and Vp=2V, what is the drain current and transconductance of this MOSFET? b) Assume long channel theory is valid, what are (i) the velocities of channel carriers at the source and drain? (ii) the output resistance of the MOSFET? c) Plot channel conductance (ga) versus VG for...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in the figure. The VT = 1 V, tox = 100 nm (SiO2) and the s...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in
the figure. The VT = 1 V, tox = 100 nm
(SiO2) and the source is grounded. (a) What regions of operation do
points (1), (2), and (3) correspond to? (b) What is the applied
gate voltage? (c) What is the inversion charge density (in
electrons per cm2) at the source end of the channel, n(y = 0), and
at the drain end of the channel, n(y =...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are V 25 V and lpss - 10 mA. Calculate the quiescent values of ID, Vps, and VGS Assume R 1 MO, R2 = 60 k 2 and Rolk. -- + 18V < R, ΟΜΩ SND 3 R 3600k
Vgs for part b, not Vds
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ,-425 cm2V-1 s-1, tox-11 nm, w: 20 μm' and L-1.2 μm at T-300 K. nm, W- 20 a) Plot the drain current ID [mA] versus drain-source voltage Vos over the range 0 < VD 3V with VGS--0.8 V, VGs 0 V and Vas +0.8 V b) Plot root saturation current ID12(sat) [mA12] versus gate-source voltage V6s over the range...
For the n-channel E-MOSFET transistor in the circuit, the
parameters are VT N = 0.4 V, Kn =
120μA/V2. Determine VGS, ID, and
VDS. Sketch the DC and AC load lines and plot the
Q-point. Assume AC input is connected to the gate and output is
connected to the drain.
+5 V S RD= 1.2 kΩ = 14 kΩ S R) = 6 ΚΩ: Rs= 0.5 ΚΩ –5 V
4. A p-channel MOSFET has the following parameters: K, - 0.15 mAN W/L = 20, and VT-0.4 V. Calculate the drain current ID for a. VsG = 0.8 V,Vso = 0.25 V b. Vs.-0.8V,Vso = 1.0 V c. Vs.-1.2V,VSD = 1.0 V d. Vsc = 1.2V,VSD-2.0 V. SD
Problem 4 (25 points) Consider an n-channel MOSFET at T=300K. Assume: n polysilicon gate, t = 500 A, N = 2x105cm-3,9' =10cm-2 Ox a W = 5 um, L = lum, 4. = 1000m, = 3.9€ , € = 8.854x10 " F/cm Qc is the number of electronic charges per unit area in the oxide a) (10 points) Determine the threshold voltage. b) (5 points) Is the transistor enhancement or depletion mode? Explain. c) (10 points) Assume the transistor is...
Problem 3 An n-channel MOSFET with L=1 um, W=3 um, tox=20 nm, V=0.7 V, and an effective electron mobility in the channel of 650 cm/V-s. a) If the MOSFET is biased with VG-V=3V, and Vp=2V, what is the drain current and transconductance of this MOSFET? b) Assume long channel theory is valid, what are (i) the velocities of channel carriers at the source and drain? (ii) the output resistance of the MOSFET? c) Plot channel conductance (ga) versus VG for...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in
the figure. The VT = 1 V, tox = 100 nm
(SiO2) and the source is grounded. (a) What regions of operation do
points (1), (2), and (3) correspond to? (b) What is the applied
gate voltage? (c) What is the inversion charge density (in
electrons per cm2) at the source end of the channel, n(y = 0), and
at the drain end of the channel, n(y =...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are V 25 V and lpss - 10 mA. Calculate the quiescent values of ID, Vps, and VGS Assume R 1 MO, R2 = 60 k 2 and Rolk. -- + 18V < R, ΟΜΩ SND 3 R 3600k
