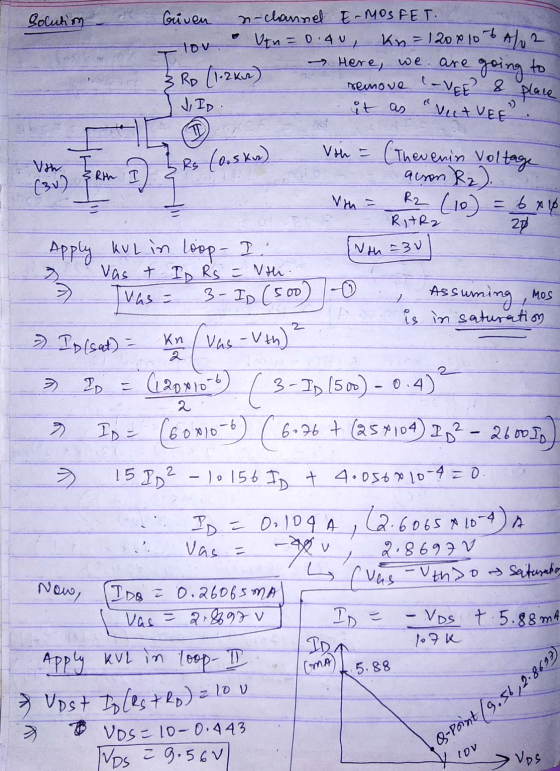

For the n-channel E-MOSFET transistor in the circuit, the
parameters are VT N = 0.4 V, Kn =
120μA/V2. Determine VGS, ID, and
VDS. Sketch the DC and AC load lines and plot the
Q-point. Assume AC input is connected to the gate and output is
connected to the drain.
Homework Answers
Add Answer to:
For the n-channel E-MOSFET transistor in the circuit, the
parameters are VT N = 0.4 V,...
1.) 120 pointsl The parameters of n-channel enhancement MOSFET in the amplifier circuit below are...
1.) 120 pointsl The parameters of n-channel enhancement MOSFET in the amplifier circuit below are: 2.042 mA/V2, 1 Val ½ 2.4 V, Kn 150 V a.) Find quiescent values: drain current i, gate-to-source voltage vGs, and drain-to-source voltage vDs b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d) Determine the output voltage Vl across the load RL ǐfv, 1 mYn +VDD GI〈 R ls R Mi RL
1.) 120 pointsl The...
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ...
Vgs for part b, not Vds
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ,-425 cm2V-1 s-1, tox-11 nm, w: 20 μm' and L-1.2 μm at T-300 K. nm, W- 20 a) Plot the drain current ID [mA] versus drain-source voltage Vos over the range 0 < VD 3V with VGS--0.8 V, VGs 0 V and Vas +0.8 V b) Plot root saturation current ID12(sat) [mA12] versus gate-source voltage V6s over the range...
1.) [20 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are Ve...
1.) [20 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are Ve = 2.4 V, Kn = 2.042 mA/V2, 1VMI = 150 V a.) Find quiescent values: drain current ip, gate-to-source voltage vGs, and drain-to-source voltage vps b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d.) Determine the output voltage vi across the load Rl if vs- 1 mVp SRC
Consider an n-channel MOSFET (Von = 0.4 V and K = 3.0 mA/V2). Let VDD =...
Consider an n-channel MOSFET (Von = 0.4 V and K = 3.0
mA/V2). Let VDD = 5.0 V, VSS =
-5.0 V, R1 = 14.0 kohm, R2 = 6.0 kohm,
RD = 1.2 kohm and RS = 0.5 kohm. Answer the
following questions assuming the transistor is at its saturation
mode.
a) Calculate VG versus ground (not VGS)
(hint: voltage division by R1 and R2 between
VDD and VSS).
b) Calculate VGS. (hint: IDS obtained by
formula = IDS obtained...
1.) 120 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are: 2.042...
1.) 120 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are: 2.042 mA/V2, İVMİ V: 2.4 V, Kn 150 V a) Find quiescent values: drain current İD, gate-to-source voltage UGS, and drain-to-source voltage UDS b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d.) Determine the output voltage vi across the load RL f 1 mVp
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether...
Please help, and explain as much as possible. Thank
you!
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in the figure. The VT = 1 V, tox = 100 nm (SiO2) and the s...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in
the figure. The VT = 1 V, tox = 100 nm
(SiO2) and the source is grounded. (a) What regions of operation do
points (1), (2), and (3) correspond to? (b) What is the applied
gate voltage? (c) What is the inversion charge density (in
electrons per cm2) at the source end of the channel, n(y = 0), and
at the drain end of the channel, n(y =...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are V 25 V and lpss - 10 mA. Calculate the quiescent values of ID, Vps, and VGS Assume R 1 MO, R2 = 60 k 2 and Rolk. -- + 18V < R, ΟΜΩ SND 3 R 3600k
Calculate the current ID in an n-channel MOSFET with following parameters: VTH=0.4 V, W=20 µm, L=0.8...
Calculate the current ID in an n-channel MOSFET with following parameters: VTH=0.4 V, W=20 µm, L=0.8 µm, µn=650 cm2 /V·s, Cox=0.17×10-6 F/cm2 . Determine the current when the transistor is biased in the saturation region for VGS=0.8 V.
Question 17 (1 point) The transconductance of an n-channel MOSFET is found to be Sm- lo/aVGs 1.75...
Question 17 (1 point) The transconductance of an n-channel MOSFET is found to be Sm- lo/aVGs 1.75 mA/V when measured at VDs 50 mV. The threshold voltage is VT 0.5 V. What is the current at VGS-0.8 V and VDs 1.5 V? Use the conductance parameter Kn found previously. a) D 6.30 mA b) ID 7.21 mA c) D, 0.963 mA d) ID-0.695 mA
Question 17 (1 point) The transconductance of an n-channel MOSFET is found to be Sm- lo/aVGs...
1.) 120 pointsl The parameters of n-channel enhancement MOSFET in the amplifier circuit below are: 2.042 mA/V2, 1 Val ½ 2.4 V, Kn 150 V a.) Find quiescent values: drain current i, gate-to-source voltage vGs, and drain-to-source voltage vDs b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d) Determine the output voltage Vl across the load RL ǐfv, 1 mYn +VDD GI〈 R ls R Mi RL
1.) 120 pointsl The...
Vgs for part b, not Vds
7. Consider an ideal n-channel silicon MOSFET with the following device parameters: VT --0.8 V, μ,-425 cm2V-1 s-1, tox-11 nm, w: 20 μm' and L-1.2 μm at T-300 K. nm, W- 20 a) Plot the drain current ID [mA] versus drain-source voltage Vos over the range 0 < VD 3V with VGS--0.8 V, VGs 0 V and Vas +0.8 V b) Plot root saturation current ID12(sat) [mA12] versus gate-source voltage V6s over the range...
1.) [20 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are Ve = 2.4 V, Kn = 2.042 mA/V2, 1VMI = 150 V a.) Find quiescent values: drain current ip, gate-to-source voltage vGs, and drain-to-source voltage vps b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d.) Determine the output voltage vi across the load Rl if vs- 1 mVp SRC
Consider an n-channel MOSFET (Von = 0.4 V and K = 3.0
mA/V2). Let VDD = 5.0 V, VSS =
-5.0 V, R1 = 14.0 kohm, R2 = 6.0 kohm,
RD = 1.2 kohm and RS = 0.5 kohm. Answer the
following questions assuming the transistor is at its saturation
mode.
a) Calculate VG versus ground (not VGS)
(hint: voltage division by R1 and R2 between
VDD and VSS).
b) Calculate VGS. (hint: IDS obtained by
formula = IDS obtained...
1.) 120 points] The parameters of n-channel enhancement MOSFET in the amplifier circuit below are: 2.042 mA/V2, İVMİ V: 2.4 V, Kn 150 V a) Find quiescent values: drain current İD, gate-to-source voltage UGS, and drain-to-source voltage UDS b.) Determine AC model parameters: gm and ro c.) Determine amplifier model parameters: Ri, Ro and Avo d.) Determine the output voltage vi across the load RL f 1 mVp
Please help, and explain as much as possible. Thank
you!
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...
The ID–VDS of a 1980s vintage (but “ideal”) N-MOSFET is shown in
the figure. The VT = 1 V, tox = 100 nm
(SiO2) and the source is grounded. (a) What regions of operation do
points (1), (2), and (3) correspond to? (b) What is the applied
gate voltage? (c) What is the inversion charge density (in
electrons per cm2) at the source end of the channel, n(y = 0), and
at the drain end of the channel, n(y =...
3. A circuit for an n-channel depletion MOSFET is shown in below. The transistor parameters are V 25 V and lpss - 10 mA. Calculate the quiescent values of ID, Vps, and VGS Assume R 1 MO, R2 = 60 k 2 and Rolk. -- + 18V < R, ΟΜΩ SND 3 R 3600k
Question 17 (1 point) The transconductance of an n-channel MOSFET is found to be Sm- lo/aVGs 1.75 mA/V when measured at VDs 50 mV. The threshold voltage is VT 0.5 V. What is the current at VGS-0.8 V and VDs 1.5 V? Use the conductance parameter Kn found previously. a) D 6.30 mA b) ID 7.21 mA c) D, 0.963 mA d) ID-0.695 mA
Question 17 (1 point) The transconductance of an n-channel MOSFET is found to be Sm- lo/aVGs...
