is MOSFET inverstion charge is fromulated as Qinv=Cox(Vg-V(y)-Vt)
where V(y) is the voltage on a point in the channel,so near the Drain Qinv decreases .the charge density "n" in the formula bellow decreases as well (pinch off)

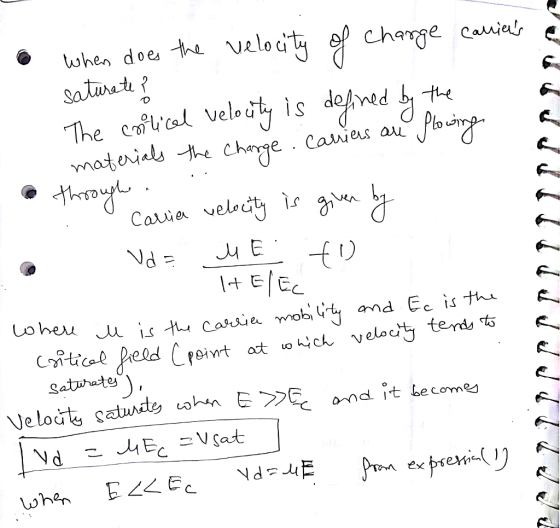

J=q*n*v=q*n*miu*E (because J is constant ,n decreases) so E field goes up near drain (speed saturation)

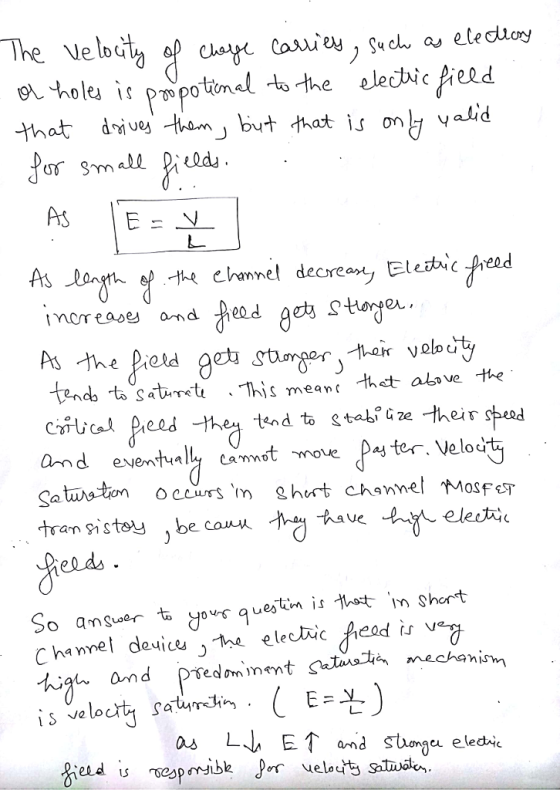

So why in long channnel the predominant saturation mechanism is pinch off
and in short channel its velosity saturation?
Thanks
