9. Consider the code below. At the location indicated by “RIGHT HERE”, what does the stack...

9. Consider the code below. At the location indicated by “RIGHT HERE”, what does the stack currently look like? Please draw a picture. Where will ESP and EBP currently be pointing? Add these pointers to your picture.

main:
push 13

push 17
call func_a
add esp, 8 ret

func_a:
push ebp

mov ebp, esp

sub esp, 12

mov DWORD [ebp – 4], 19
mov DWORD [ebp – 8], 23

     ;  <-- RIGHT HERE.  Draw a picture
     ;  What does the stack look like?
     ;  Where are ESP and EBP pointing?

mov esp, ebp
pop ebp
ret

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

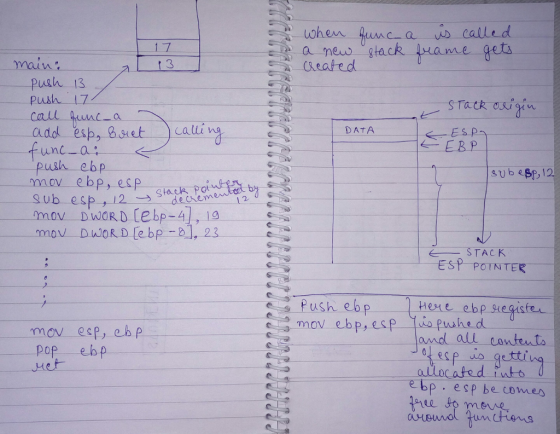

Please check the attached screenshots

when unc a vs called 1 7 lack ame maiu: eated Push 13 push 17 STatk sin Cu DATA ESP fun push ebp sub esp1 Sub esp, decem 12 ヒーーー. STACK ESP POTNTER ush ebpHere ebp segiste mov esp, ebp pop ebp all canteuts ebp. esP be comes

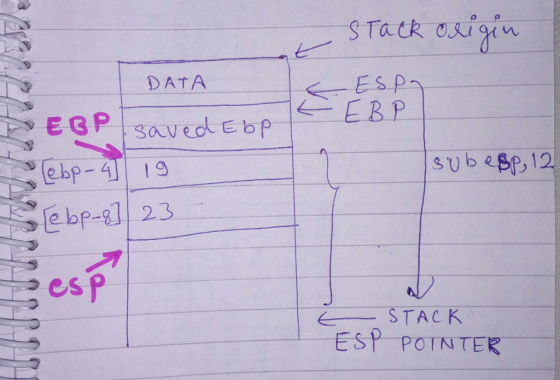

please check the pink marker for required position of esp and ebp
