Five identical 10 mF capacitors are connected to a 5V source as shown in the schematic....

Question

Question

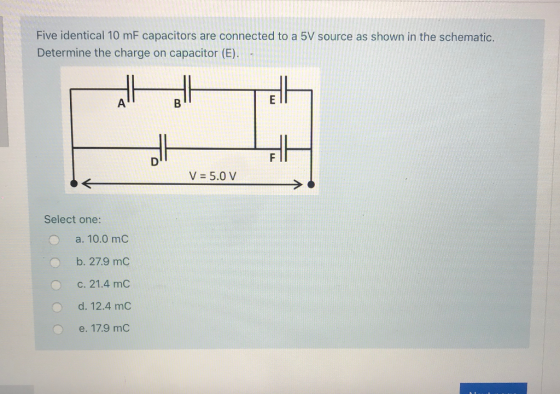

Five identical 10 mF capacitors are connected to a 5V source as shown in the schematic. Determine the charge on capacitor (E)

science physics

Answer 1

Answer #1

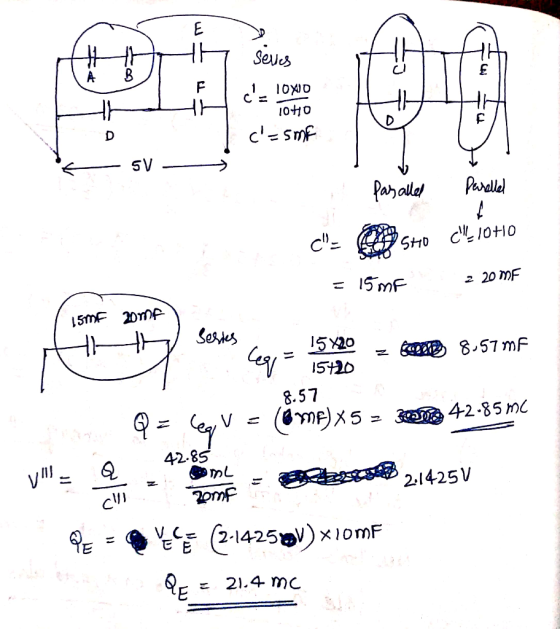

E Seves AP cSmf D SV Parallo Palle Sto C10t10 2 20 MF 5mF 20p Seses 5X20 y 8.57 mF I520 8.57 eme)X5= 3 42-85mc 42.85 2.1425V

Answer 2

Similar Homework Help Questions

capacitors are connected as shown to a potential difference of V=14.0 volts. CisC,-Cr=C,-C,-20 μ1: The charge...

capacitors are connected as shown to a potential difference of V=14.0 volts. CisC,-Cr=C,-C,-20 μ1: The charge on C5 is A) 40 pC B) 60 HC C) 80 uC D) 120 HC E) 160 μC C1 C3 C2 29·Four identical 1 mF capacitors are connected together electrically what is the greatest possible capacitance of the combination? A) 8 mF B) 4 mF 30 Five capacitors are connected as shown. C2 40 μ F, C4# 10 μ1, Ci=C,sCF 20 μ F The...
Q3. Three capacitors are connected to a voltage source V= 12 Volt as shown in figure...

Q3. Three capacitors are connected to a voltage source V= 12 Volt as shown in figure I. ll. Determine the equivalent capacitance (Ceq?) Calculate charge and voltage in the second capacitor (Q2 ? and V2 Total energy stored at the capacitors. C2-8mfl C3-4mf V-12V
Problem 24.62 Two identical capacitors are connected in parallel and each acquires a charge Q0 when...

Problem 24.62 Two identical capacitors are connected in parallel and each acquires a charge Q0 when connected to a source of voltage V0. The voltage source is disconnected and then a dielectric (K = 2.8) is inserted to fill the space between the plates of one of the capacitors. Assume that the capacitor without the dielectric is the first and the capacitor with the dielectric is the second. Part A Determine the charge now on each capacitor. Express your answer...

5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a...

5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
Five identical resistors are connected to a source of emf, as shown in the figure. The...

Five identical resistors are connected to a source of emf, as shown in the figure. The source has negligible resistance. How does the current ic through resistor C compare with the current ie through resistor E? Explain your reasoning Four identical Resistors Are Co W1sPhys1010,133 ch19p8Lakehead University PHYSN Nt php?id-429908 Jump t0.. 10/1133-Winter19-MACKAY> Activities and Due Dates Chapter 21 Bridge Assignment: Circuits ent Score: 0/600 Hint Check Answes 1 of 6 Five identical resistors are connected to a source of...
Four capacitors are connected as shown in the figure below. (Let C = 10.0 μF)

Four capacitors are connected as shown in the figure below. (Let C = 10.0 μF) (a) Find the equivalent capacitance between points a and b. (b) Calculate the charge on each capacitor, taking ΔVab = 20.0 V.

33) Four identical 1.5-mF capacitors are connected together electrically. What is the least possible capacitance of...

33) Four identical 1.5-mF capacitors are connected together electrically. What is the least possible capacitance of the combination? A)3.0E-4 F B)2.5E-4 F C)3.8E-4 F D) 1.5E-3 F E) 6.7E-4F
A capacitor with capacitance C1916 mF is connected in series to a second capacitor with capacitance...

A capacitor with capacitance C1916 mF is connected in series to a second capacitor with capacitance 2 2.53 mF. The figure doesn't show the entire circuit, it shows only the capacitors. C1 C2 If the voltage across capacitor C Is V 1.29x10 mC 14.1 V, then how much electric charge Is stored by C1? ou are correct. Your recelpt no. Is 166-8044 Previous Tries How much electric charge does C2 store? Suhmit Angw Incorrect. Tries 1/12 Previous Tries What is...
Three identical isolated capacitors, each with capacitance C, are connected in parallel, with a 11.3 V...

Three identical isolated capacitors, each with capacitance C, are connected in parallel, with a 11.3 V potential difference across their plates. Each capacitor carries a charge of 4.60 uC. (a) Find C (b) Find the equivalent capacitance. (c) Suppose that one of the capacitors is first disconnected and then reconnected with its terminals reversed. Find the final voltage drop across the capacitors

3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an...

3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an 18 V battery is connected to terminals A and B, find the charge on each capacitor, the voltage across the 8.2 pF and 22 F capacitors, and the total energy stored in the circuit A B 8.2uF 22uF
