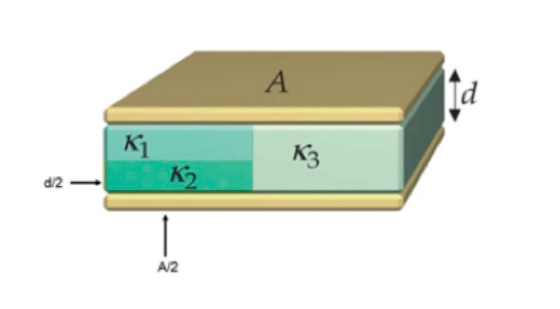

Determine the capacitance of the next parallel plate capacitor. Id Ki Kr K3 d/2 A/2

Question

Question

Determine the capacitance of the next parallel plate capacitor.

science physics

Answer 1

Answer #1

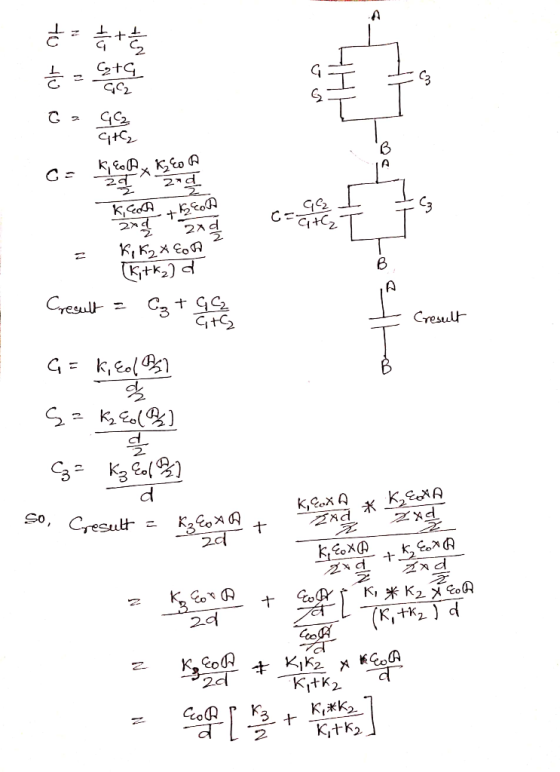

후+북 = 무 C지 A 2 d -Ci+C2 2거 2지 2 A Cyesul Cresu나 = d K,Cox A So, Cresut K,K2eoA +k, d 2여 Kitk2 Kk Kitk2 CaR 2

Answer 2

Similar Homework Help Questions

2. A parallel plate capacitor has an area of 80cm and the capacitance of the capacitor...

2. A parallel plate capacitor has an area of 80cm and the capacitance of the capacitor is 13 pF. Determine the seperation between the plates of the capacitor. (10 points)
(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate...

(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 130 cm^2 and insulation thickness of 0.0240 mm. (b) Determine the maximum voltage that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 130 cm^2 and insulation thickness of 0.0240 mm. 9.59 nF was not correct for part a)
(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate...

(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 225 cm2 and insulation thickness of 0.0370 mm. _______nF (b) Determine the maximum voltage that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 225 cm2 and insulation thickness of 0.0370 mm. _________kV

(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate...

(a) Determine the capacitance that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 135 cm2 and insulation thickness of 0.0430 mm. nF (b) Determine the maximum voltage that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 135 cm2 and insulation thickness of 0.0430 mm. kV
(a) Determine the capacitance of a Teflon-filled parallel-plate capacitor having a plate area of 1.75 cm2...

(a) Determine the capacitance of a Teflon-filled parallel-plate capacitor having a plate area of 1.75 cm2 and insulation thickness of 0.0800 mm (b) Determine the maximum potential difference that can be applied to the capacitor.
A parallel-plate capacitor has a capacitance of 8 μF. Its capacitance if the plate separation is...

A parallel-plate capacitor has a capacitance of 8 μF. Its capacitance if the plate separation is doubled is ? and if the plate area of the capacitor is doubled. The capacitance will be ?

upper plate (area A) K2 d Imagine a parallel plate capacitor made from two square plates...

upper plate (area A) K2 d Imagine a parallel plate capacitor made from two square plates of area A that are separated by a distance 2d. One half of the volume between the plates is filled with a dielectric material with a dielectric constant K1; the other half is filled with two equal, stacked layers of dielectric materials with constants K2 and K3, as shown. Find the capacitance of this capacitor. 2d K1 K3 d bottom plate (area A)

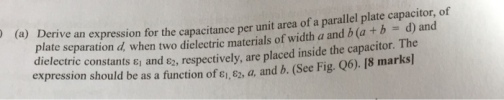

pression for the capacitance per unit area of a parallel plate capacitor, of tb d) and...

pression for the capacitance per unit area of a parallel plate capacitor, of tb d) and plate separation d when two dielectric materials of width a and b (a electric constants , and ?2, respectively, are placed inside the capacitor expression should be as a function of The e1, 82, a, and b. (See Fig. Q6). 18 marks 8 marks
[A a, 5 5. Determine the capacitance of a parallel plate capacitor using quartz as the...

[A a, 5 5. Determine the capacitance of a parallel plate capacitor using quartz as the dielectric that can withstand a maximum potential difference of 2000 V just before it breaks down. The plate area of the capacitor is 16 cm2, the dielectric constant of quartz is 3.78, and the dielectric strength of quartz is 8x106 V/m. Potenhal differente - 200DV Plat arca: eum2 A) 1.0nF B) 2.0 pF 0.21 nF 0.18 nF 10.0 pF D) E) Dicectne cunstant. 3.1...

Calculate the capacitance of a parallel plate capacitor with plate area A = 0.4 cm2, plate...

Calculate the capacitance of a parallel plate capacitor with plate area A = 0.4 cm2, plate separation d = 1.0 mm, with teflon filling the gap between the plates.
