Using Mesh Analysis in the circuit of figure P3.3, find the voltage V across the .25-ohm...

Question

Question

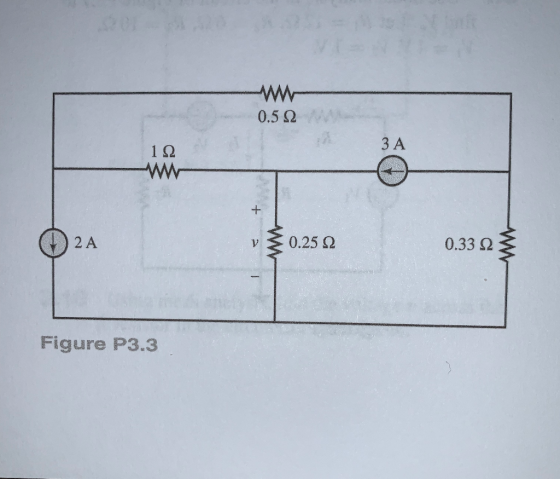

Using Mesh Analysis in the circuit of figure P3.3, find the voltage V across the .25-ohm resistance. 0.5 Ω 3Α 1Ω 2 A ν<0.25 Ω 0.33Ω Figure P3.3

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

The source voltage vg in the circuit in figure equals 32 V. Use the node-voltage method...

The source voltage vg in the circuit in figure equals 32 V. Use the node-voltage method to find the power developed by the 32 V source. ****NOT A 20V BUT A 32 V SOURCE. DISREGARD WHAT THE PICTURE SAYS. JUST USE THE PICTURE FOR THE CIRCUIT*** Use the node-voltage method to find the power devel- oped by the 20 V source in the circuit 35 i 2Ω 1Ω 4Ω ぢ> 3.125 v
DQuestion 12 Find the voltage (VR) across the resistor in the following circuit. j 10Ω ●...

DQuestion 12 Find the voltage (VR) across the resistor in the following circuit. j 10Ω ● 13.42 -63.43° V 11.18<-63.43° V 13.42 11.18 63.43° V (ii) -63.43° V
1. Determine the voltage across the diode for 1<R<100 Ohms and plot the results. V d...

1. Determine the voltage across the diode for 1<R<100 Ohms and plot the results. V d FBV-0.7 5Ω

a) Using nodal analysis determine the voltage across the 1 ohm resistor. b) using mesh analysis...

a) Using nodal analysis determine the voltage across the 1 ohm resistor. b) using mesh analysis determine the current across the voltage source. nr )edder me nu current Nh) wsern esh analysis
EE210 HW i] write the Mesh 42 2] write the Mesh Egs 3] Write the Mesh...

EE210 HW i] write the Mesh 42 2] write the Mesh Egs 3] Write the Mesh Egs CA © ¢6 'Is <8
Question 4) In the circuit in (Figure 1) the voltage and current expressions are v=36e-25 V,...

Question 4) In the circuit in (Figure 1) the voltage and current expressions are v=36e-25 V, t>0; i= 12e-25 mA, +0+ Part A Find R Express your answer to three significant figures and include the appropriate units. μΑ ? R= Value Units Submit Request Answer Figure < 1 of 1 > Part B Find C + Express your answer to three significant figures and include the appropriate units. uA ? v RS C= Value Units Submit Request Answer Question 4)...

Using the half-circuit analysis, find the differential voltage gain for the circuit All differential pairs are...

Using the half-circuit analysis, find the differential voltage gain for the circuit All differential pairs are symmetrical, λ > 0) in1 in2
Referring to the three-phase circuit in Figure 2, find the line currents, the voltage across the...

Referring to the three-phase circuit in Figure 2, find the line currents, the voltage across the load, and the average power absorbed by the connected delta load with ?∆ = 21 + ?24Ω. 100/0° Vrms 1Ω j0.5 Ω -- ΖΑ 100/-120° Vrms 1Ω j0.5Ω ΖΑ ZA 100/120° V rms 1Ω j0.5 Ω
In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm...

In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm resistor is 27.0 V. what are the emf of the battery and the current through the 6.00-Ohm resistor? (Let R2 = 1.00 Ohm) Epsilon = _____ V I = __________ A A capacitor is charged to a potential of 13.0 V and is connected to a voltmeter having an internal resistance of 3.45 Mohm. After a time of 3.50 s the voltmeter reads 3.0...

5. [RC Circuits] Consider the circuit shown in Figure 5 attached. As shown, the switch is...

5. [RC Circuits] Consider the circuit shown in Figure 5 attached. As shown, the switch is in position "A" for t < 0, and the circuit has been at rest for a long time. At time t = 0, the switch opens and the capacitor starts to drain across the resistor. (a) When the switch is closed and there is only a direct current (DC) source, the capacitor acts like an open circuit. Find the constant voltage across the capacitor...
