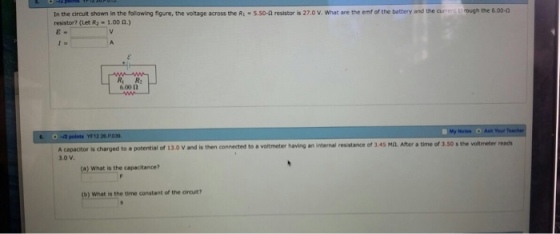

In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm...

Question

Question

science physics

Answer 1

Answer #1

E = 31.9Volts

I = 5.318A

C = 0.69 micro Farad

tau = 3.4 s

Answer 2

Similar Homework Help Questions

In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized.

In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 13.0 V. Find the emf epsilon of the battery. What will the ammeter read when the switch is closed?
For the circuit shown in the following figure both meters are idealized, the battery has no...

For the circuit shown in the following figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.22 A. (Let R_1 = 47.0 ft, R_2 = 28.0 Ohm, and R_3 = R_4 = 18 Ohm.) What does the voltmeter read? What is the emf epsilon of the battery?
A capacitor is charged to a potential of 11.5 V and is then connected to a...

A capacitor is charged to a potential of 11.5 V and is then connected to a voltmeter having an internal resistance of 3.50 MΩ. After a time of 3.50 s the voltmeter reads 3.0 V. (a) What is the capacitance? _____ F (b) What is the time constant of the circuit? ______ s

for the circuit in the following figure, both meters are idealized.please break it down the circuit,...

for the circuit in the following figure, both meters are idealized.please break it down the circuit, and answer questions a and b. For the circuit shown in the following figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.37 A. (Let R1-52.0 Ω, R2-27.0 Ω, and R3-R4-17 Ω·) (a) What does the voltmeter read? (b) what is the emf ε of the battery? R3 Ri R4 10.012 35.0 Ω a. 256 V b.465...
In the circuit shown in the figure. R1 = 15,00 Ohm, R2 = 10.0 Ohm, R3...

In the circuit shown in the figure. R1 = 15,00 Ohm, R2 = 10.0 Ohm, R3 = 5.0 Ohm, V emf,1 = 15.0 V. and Vemf,2 = 10.0 V. Using Kirchhoff's Loop and Junction Rules, determine the currents i1, i2, and i3 flowing through R1, R2, and R3, respectively, in the direction indicated in the figure.
A capacitor is charged to a potential of 10.5 V and is then connected to a...

A capacitor is charged to a potential of 10.5 V and is then connected to a voltmeter having an internal resistance of 3.20 M2. After a time of 3.50 s the voltmeter reads 3.0 V (a) What is the capacitance? (b) What is the time constant of the circuit?

Ras SR. Consider the circuit, as shown in the figure above. R1 = 12.0 ohm, R2...

Ras SR. Consider the circuit, as shown in the figure above. R1 = 12.0 ohm, R2 = 12.0 ohm, R3 = 6.00 ohm, R4 = 6.00 ohm, R5 = 21.0 ohm and V = 26.0 V. Calculate the magnitude of the current in the R5 = 21.0 ohm resistor. Submit Answer Tries 0/8 Calculate the magnitude of the potential difference between points a and b. Submit Answer Tries 0/8
R5 4 Consider the circuit, as shown in the figure above. R1 = 10.0 ohm, R2...

R5 4 Consider the circuit, as shown in the figure above. R1 = 10.0 ohm, R2 = 12.0 ohm, R3 = 5.00 ohm, R4 = 6.00 ohm, R5 = 22.0 ohm and V = 26.0 V. Calculate the magnitude of the current in the R5 = 22.0 ohm resistor. 2.49x101 A You are correct Your receipt no. is 157-5800 Previous Tries Calculate the magnitude of the potential difference between points a and b Submit Answer Tries 0/8
Consider a series RC circuit for which R1 = R2 = 1.0 Mohm, R3 = 2.0...

Consider a series RC circuit for which R1 = R2 = 1.0 Mohm, R3 = 2.0 Mohm, C1 = 5.0 mu F, C2 = 4.0 mu F, and epsilon = 30 V as in Figure P18.34. Find the charge on the capacitor 10 S after the switch S is closed.

The circuit in the figure below contains two resistors, R1-1.8 kΩ and R2 2.8 k. and...

The circuit in the figure below contains two resistors, R1-1.8 kΩ and R2 2.8 k. and two capacitors, C1-1.7 μF and C3 = 2.5 μF, connected to a battery with emf ε-105 v. If there are no charges on the capacitors before switch s is closed, determine the charges q1 and q2 on capacitors C1 and C2, respectively, as functions of time, after the switch is closed. Hint: First reconstruct the circuit so that it becomes a simple RC circuit...
