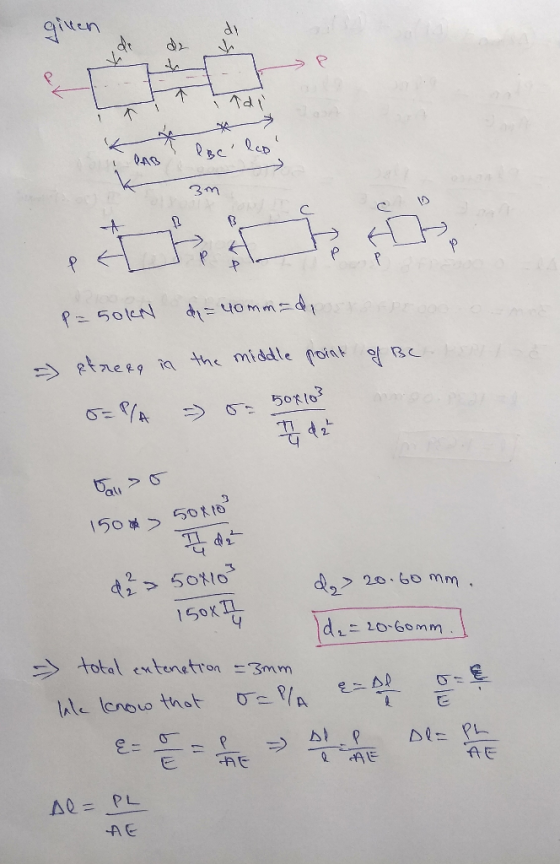

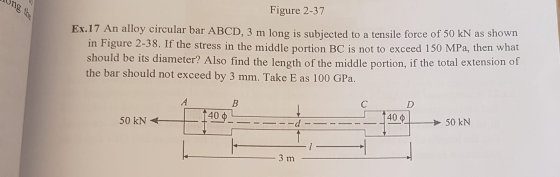

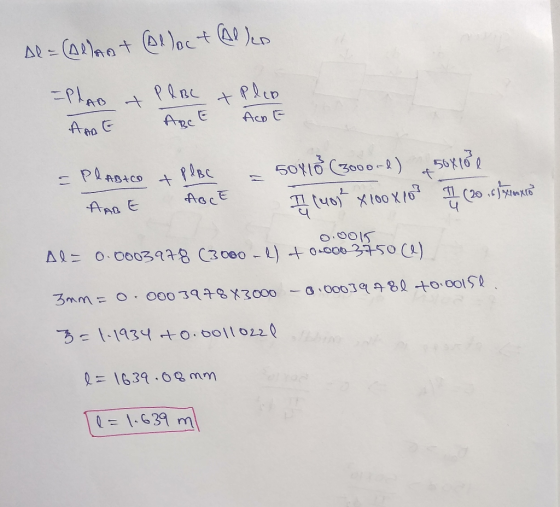

cong the Figure 2-37 Ex.17 An alloy circular bar ABCD, 3 m long is subjected to...
A bar ABCD with varying cross section and subjected to axial loads is shown schematically in Figure Q3. Take modulus of elasticity of bar as 202 GPa. The length of each section L1 = 111 mm; L2 = 205 mm; and L3 = 451 mm. The cross sectional dimensions are as follows: Section 1 is square with side 49 mm, Section 2 is circular with diameter 79 mm and Section 3 is circular with diameter 32 mm. The forces are...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
(a) Both tube and solid bar shown in Figure 3 are made of aluminium alloy with shear modulus of elasticity of 27 GPa. Analyse the structure and explain the type of stress experienced by the circular tube and solid circular bar. Determine the maximum shear stresses in both the bar and tube, and determine the angle of twist (in degrees) at end A of the bar. Given I tube = 1.0848 x 10 mm. 500 cm 500 cm Tube thickness...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
The cross section of the cantilever beam loaded as shown in
Fig. 8-20 is rectangular, 50 × 75 mm. The bar, 1 m long, is
aluminum for which E = 65 GPa. Determine the permissible maximum
intensity of loading if the maximum deflection is not to exceed 5
mm and the maximum stress is not to exceed 50 MPa.
Ans. w0 = 14.1 kN/m and 17.1 kN/m. Select 14.1 kN/m.
oment 3 Fig. 8-20
oment 3 Fig. 8-20
please help with steps to solve this problem
Figure 2 [25] QUESTION 3 A pinned-pinned round bar is to be 4m long. It is subjected to a purely axial load. Determine the diameter of the bar and determine the maximum load that it can carry if the bar is made of steel with yield strength of 280 MPa and an elastic modulus of 207 GPa. The safety factor on yield should not exceed 1.5. The moment of inertia for a...
The stool bar has the original dimensions shown in the Siguro. (Figure 1) It is subjected to an axial load of 50 kN E = 199 GPa, st = 0.30. Part A Determine the change in its length Express your answer to three significant figures and include appropriate units. THẢ * * * G3 ? BAD Value Units Submit Request Answer Part B Figure Determine the new height at section - Express your answer to six significant figures and include...
Full solution thank
The 12-m-long A-36 steel rails on a train track are laid with a small gap between them to allow for thermal expansion. The CROSS-sectional area of each railis 3100 mm . (Figure 1) - Part A Determine the required gap & so that the rails just touch one another when the temperature is increased from Ti -30°C to 30°C Express your answer to three significant figures and include the appropriate units. :MAO ? Value Units Fiqure 1...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, Ơalkw-168 MPa and allowable shear stress. llo 110 MPa, choose the lightest wide flange beam from Appendix. Given data E-225 GPa, p 7850 kg/m3. Assume A is a pin and B a roller support Rasuk yang dsokong mudah Disebabkan sebuah keperluan tertentu,...
40kN Uniform Load W kN/m X Span L L/2 Figure 1 SPAN L 6 W 11Kn/m Beam is 200 UB 18.2 Use the diagram above and the W and L values assigned to you to: a) Use your shear force diagram to calculate the Maximum longitudinal Shear Stress and where it occ Ccurs. b) Calculate the longitudinal Shear Stress at d/4 from the neutral axis. Check Figures 283 below this table BENDING MOMENT DIAGLAM Kp/m f:40 zm 7.5 KN-M 90...
