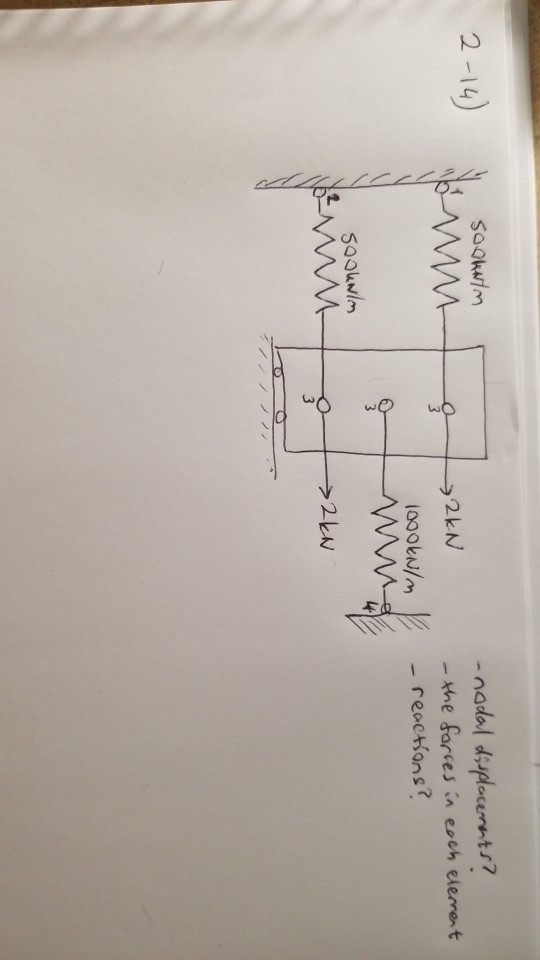

the problem must be solved with direct stiffness method. thank you!

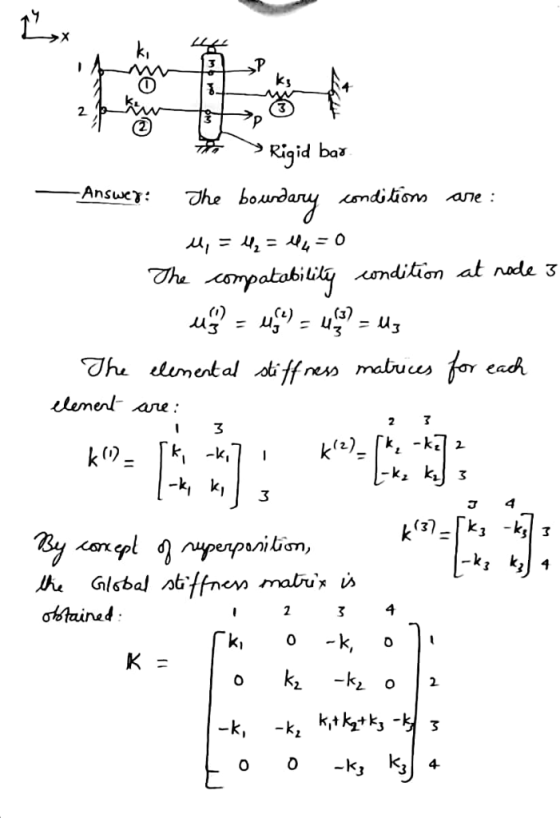

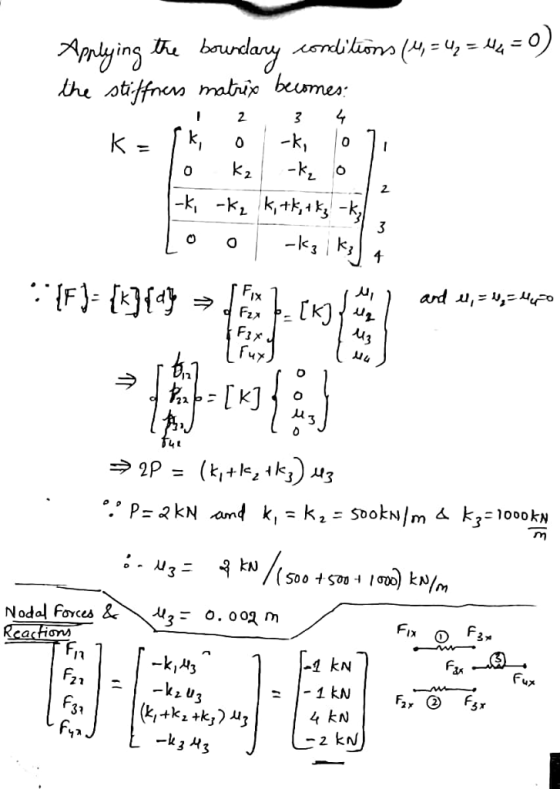

The negative direction for the reaction forces F1x, F2x,F4x implies their direction is opposite to that of the assumed positive direction of x-axis or simply in negative x-axis direction in the usual cartesian coordinate axes.
the problem must be solved with direct stiffness method. thank you! 2-14 - na the forces...
Calculate the following using THE DIRECT STIFFNESS METHOD :
a) The reaction forces, bending moments and deflections at nodes
1, 2 and 3.
E=200 Gpa
I= 4x10^-5 m^4
The force acting in the center of the beam is 115 kg x 9.81 = 1
128,15 N
(2 O2ISM 14 2154
Use the direct stiffness method and calculate the forces,
deflections and moments in each node.
Mass of UDL = 115 kg
E=200 Gpa
I= 4 x 10^-5 m^4
The downward arrow's force = 1 128,15 N
.
UDL wa O ह ह 14 Ri Rz
structural analysis
Figure Q() Question 2 For the bar assemblages shown in Figure Q(2), determine the nodal displacements, the forces in each element and the reactions. Use the direct stiffness method (25 marks) 35 kN E-210 GPa 2 A4 x 10m2 1 m im
Figure Q() Question 2 For the bar assemblages shown in Figure Q(2), determine the nodal displacements, the forces in each element and the reactions. Use the direct stiffness method (25 marks) 35 kN E-210 GPa 2...
Problem 2 [Required]: For the truss below (and using the Stiffness Method): (a) Determine the global stiffness matrix; (b) Calculate the vertical and horizontal displacement at joint B; (c) Calculate the force in members 1 and 5; (d) Calculate the reaction forces. NOTE: Joint A is pinned and Joint D is a roller. AE is constant. Use the chart below for selecting near and far nodes and use the provided coordination numbers. u2 2m 5 2 kN 3 Element 2...
Use the direct stiffness method and calculate the forces, deflections and moments in each node. Mess of UDL = 115 kg E=200 Gps I= 4 x 10^-5 m-4 The downward arrow's force = 1 128,15 N 0 UDL ma -0,3m As 93m Ri Rz
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4. Finally, draw the shear force and bending moment diagrams for each element. LetE 30 x 103 ksi, A = 8 in,2 , and 1-800 in.4 for all elements. 20 kip 25 ft 25 ft- 40 ft 20...
Q2. Statically determinate or indeterminate truss analysis by
the stiffness method. (50 marks)
a) Determine the stiffness matrix of the whole truss given in
problems 14.9 and 14.10 (p. 583). Indicate the degrees-of freedom
in all the stiffness matrices. (18 marks)
b) Calculate all the nodal displacements and all the member forces
for the truss.
(16 marks)
14-9. Determine the stiffness matrix K for the trus Take A 0.0015 m2 and E 200 GPa for each member. 2 12 4...
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4 Finally, draw the shear force and bending moment diagrams for each element. Let E 30x 103 ksi, A 8 in2, and I 800 in.4 for all elements. 20 kip 25 ft 25 ft 40 ft Figure P5-4...
Problem 3. (3 points). Determine the nodal displacements and reaction forces using the finite element direct method for the 1-D bar elements connected as shown below. Do not rename the nodes or elements when solving. Assume that the bars can only undergo translation in x (1 DOF at each node). Nodes 1 and 3 are fixed. Element 1 has Young's Modulus of 300 Pa, length of 1 m and cross-sectional area of m. Element 2 has Young's Modulus of 200...
