A set of gear is cast with a 17.5º pressure angle and a circular pitch of...

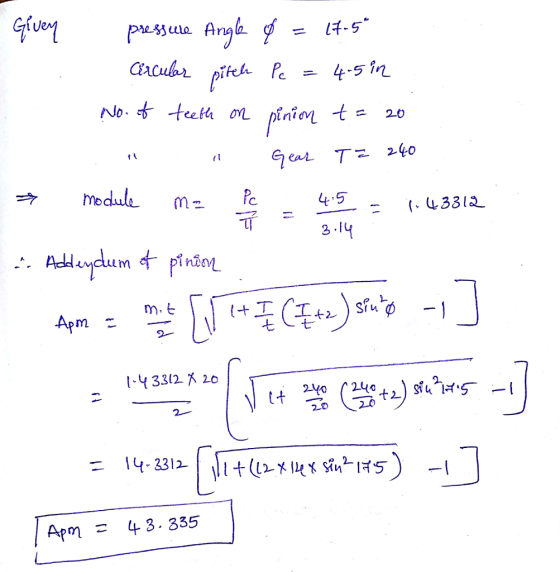

A set of gear is cast with a 17.5º pressure angle and a circular pitch of 4.5 in. The pinion has 20 full-depth teeth. If the gear has 240 teeth, what must its addendum be in order to avoid interference?
Homework Answers
Add Answer to:
A set of gear is cast with a 17.5º pressure angle and a circular
pitch of...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
For a pair of spur gears with a diametral pitch of 12, and a 20° degree...
For a pair of spur gears with a diametral pitch of 12, and a 20° degree pressure angle and with the number of teeth on the pinion 11 and the number of teeth on the gear 18, compute all the features of the gear teeth described below: (a) Pitch diameter for the gear, (b) Pitch diameter for the pinion (c) The circular pitch, (d) Addendum, (e) Dedendum, (f) Clearance, (g) Whole depth, (h) The tooth thickness (hint: based on circular...
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assu...
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assume same diametral pitch in both stages. 5 1) Specify appropriate numbers of teeth to minimize the gearbox size while avoiding the interference problem in the teeth. Use full-depth teeth Determine the gearbox outside dimension Y, assuming the wall...
A gear-set consists of a 16-tooth pinion driving a 40-tooth gear. The diametral pitch (P) is...
A gear-set consists of a 16-tooth pinion driving a 40-tooth gear. The diametral pitch (P) is 2, and the addendum and dedendum are 1/P and 1.25/P respectively. The gears are cut using a pressure angle of 20°. Compute the circular pitch, the center distance and the radii of the base circles. In mounting the gears, the center distance was incorrectly made ¼ in longer. Compute the new values of pressure angle and the pitch circle diameters. (Ans. 1.57 in, 14...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a face width of 0.25 in and helix angle of 45° The power comes from an electric motor, and the drive is to winch that will experience moderate shock. (a) If the gear transmits 0.50 HP at a speed of 3450 RPM, what would be the tangential force? (b) If the gear operates with a pinion having 16 teeth, what...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of 6 teeth/in, 22 full-depth teeth with a cut profile, and a 20° pressure angle. The pinion runs at a speed of 1280 rev/min and transmits 15 hp to a 60-tooth gear. If the face width is 2 in., estimate the bending stress. Take the value of Lewis form factor, Y, from the table 14-2. The bending stress is kpsi.
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4...
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4 in and pressure angle 25. Determine the pitch diameter of both the pinion and the gear, number of teeth of gear, and center distance between gear shafts. The reduction speed ratio is 7. (b) what is the significance of the involute form of gear teeth Tarly show the following: pitch and base circles mion and the pressure angle.
Question is in Metric not imperial MEA35TA/101/0/2019 Question 9 An uncrowned straight-bevel pinion has 30 teeth, a diametral pitch of 6, and a transmission accuracy number of 6. The driven gear h...
Question is in Metric not imperial
MEA35TA/101/0/2019 Question 9 An uncrowned straight-bevel pinion has 30 teeth, a diametral pitch of 6, and a transmission accuracy number of 6. The driven gear has 60 teeth. Both are made of No. 30 cast iron. The shaft angle is 90 . The face width is 1.25 in, the pinion speed is 900 rev/min, and the normal pressure angle is 20.. The pinion is mounted outboard of its bearings: the bearings of the gear...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°,...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
A pair of helical gears is used with the following properties: 14.5 degree normal pressure angle,...
A pair of helical gears is used with the following properties: 14.5 degree normal pressure angle, 45 degree helix angle, diametral pitch of 8 teeth/in, 1.5-in face width, and normal diametral pitch of 11.31 teeth/in. The pinion has 12 teeth and a 1.5in pitch diameter, and the gear has 32 teeth and a 4.0 in pitch diameter. Both gears have full-depth teeth. If a right-hand pinion and a left hand gear are placed in mesh, find the transverse contact ratio,...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
For a pair of spur gears with a diametral pitch of 12, and a 20° degree pressure angle and with the number of teeth on the pinion 11 and the number of teeth on the gear 18, compute all the features of the gear teeth described below: (a) Pitch diameter for the gear, (b) Pitch diameter for the pinion (c) The circular pitch, (d) Addendum, (e) Dedendum, (f) Clearance, (g) Whole depth, (h) The tooth thickness (hint: based on circular...
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assume same diametral pitch in both stages. 5 1) Specify appropriate numbers of teeth to minimize the gearbox size while avoiding the interference problem in the teeth. Use full-depth teeth Determine the gearbox outside dimension Y, assuming the wall...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a face width of 0.25 in and helix angle of 45° The power comes from an electric motor, and the drive is to winch that will experience moderate shock. (a) If the gear transmits 0.50 HP at a speed of 3450 RPM, what would be the tangential force? (b) If the gear operates with a pinion having 16 teeth, what...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of 6 teeth/in, 22 full-depth teeth with a cut profile, and a 20° pressure angle. The pinion runs at a speed of 1280 rev/min and transmits 15 hp to a 60-tooth gear. If the face width is 2 in., estimate the bending stress. Take the value of Lewis form factor, Y, from the table 14-2. The bending stress is kpsi.
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4 in and pressure angle 25. Determine the pitch diameter of both the pinion and the gear, number of teeth of gear, and center distance between gear shafts. The reduction speed ratio is 7. (b) what is the significance of the involute form of gear teeth Tarly show the following: pitch and base circles mion and the pressure angle.
Question is in Metric not imperial
MEA35TA/101/0/2019 Question 9 An uncrowned straight-bevel pinion has 30 teeth, a diametral pitch of 6, and a transmission accuracy number of 6. The driven gear has 60 teeth. Both are made of No. 30 cast iron. The shaft angle is 90 . The face width is 1.25 in, the pinion speed is 900 rev/min, and the normal pressure angle is 20.. The pinion is mounted outboard of its bearings: the bearings of the gear...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
