Question

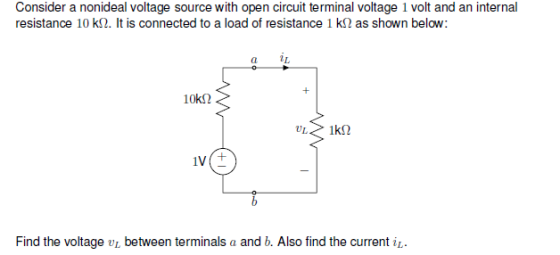

Consider a nonideal voltage source with open circuit terminal voltage 1 volt and an internal resistance 10 k(2. It is connected to a load of resistance 1 k? as shown below. 1k2 Find the voltage UL between terminals a and b. Also find the current i1.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

* Consider a non-ideal Voltagt ㅅ0uYCC Wilk Drendi curt termi nel Vott a Volt and an internㅚ reAiAtanteLOKO and an intemd res

0 0
Add a comment
Know the answer?
Add Answer to:
Consider a nonideal voltage source with open circuit terminal voltage 1 volt and an internal resistance...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Question 2. Consider a nonideal AC voltage source v, with open circuit terminal voltage ampli- tude...

    Question 2. Consider a nonideal AC voltage source v, with open circuit terminal voltage ampli- tude a and an internal resistance R. In this question we consider the problem of amplifying the input voltage with a modified non-inverting amplifier configuration shown in Figure 2. Ri RA Uo Us Figure 2: Circuit for Question 2. Suppose that R2 - R4. What should be the value of R3 so that the output voltage amplitude is A?

  • A signal source with an open-circuit voltage of Vs = 2 mV rms and an internal...

    A signal source with an open-circuit voltage of Vs = 2 mV rms and an internal resistance of 50 kΩ is connected to the input terminals of an amplifier having an open-circuit voltage gain of 100, an input resistance of 135 kΩ , and an output resistance of 4 Ω. A 4 Ω load is connected to the output terminals. Find Voltage gain Avs = V0/Vs Find voltage gain Av = V0/Vi Find current gain Ai Find power gain G...

  • Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance.

     Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Immediately after the switch is closed, what is the voltage across the resistor?Immediately after the switch is closed, what is the direction of the current in the circuit?

  • A battery has an emf of 12.0 V and an internal resistance of 0.050 0. Its terminals are connected to a load resistance of 3.00 V.

    A battery has an emf of 12.0 V and an internal resistance of 0.050 0. Its terminals are connected to a load resistance of 3.00 V.  (A) Find the current in the circuit and the terminal voltage of the battery(B) Calculate the power delivered to the load resistor, the power delivered to the internal resistance of the battery, and the power delivered by the battery

  • A battery has an emf of 12.0 V and an internal resistance of 0.210 Q. Its...

    A battery has an emf of 12.0 V and an internal resistance of 0.210 Q. Its terminals are connected to a load resistance of 3.00 . Circuit diagram of a source of emf (in this case, a battery), of internal resistance r, connected to an external resistor of resistance R. for ning R (a) Find the current in the circuit and the terminal voltage of the battery. SOLUTION Conceptualize Study the figure, which shows a circuit consistent with the problem...

  • 1. Two amplifiers are placed in a cascade. The first (leftmost) has an input resistance of...

    1. Two amplifiers are placed in a cascade. The first (leftmost) has an input resistance of 10K, an output resistance of 1K, and an open circuit gain (no load at the output) of Avo = 10V/V. The second (rightmost) has an input resistance of 20K, an output resistance of 2K, and an open circuit gain of Avo = 20V/V. Also, assume that a nonideal source with internal resistance equal to 100 Ohms is placed at the input of the cascade....

  • Consider the following circuit involving a 2F capacitor connected to resistors and a voltage source. (e)...

    Consider the following circuit involving a 2F capacitor connected to resistors and a voltage source. (e) (5 points) Determine the mathematical expression for UL (10 points) Consider the following circuit involving a 2F capacitor connected to resistors and a voltage source. Given that vc(0) = 2V, find the voltage of the capacitor as a function of time for t > 0 692 232 10V 332 2F+ VC Figure 2: (a) (5 points) Find the Thevenin equivalent circuit with Thevenin voltage...

  • 1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is...

    1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is connected in parallel with a d.c. generator of e.m.f. 110 V and internal resistance of 0.5 Ω to supply a load having a resistance of 8 Ω. Calculate: (a) the currents in the battery, the generator and the load; (b) the potential difference across the load. 1)b.Two batteries are connected in parallel. The e.m.f. and internal resistance of one battery are 120 V and...

  • Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance.

    Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...

  • 3.12 Consider a source terminal connected to a power electronic circuit whose current and voltage waveforms...

    3.12 Consider a source terminal connected to a power electronic circuit whose current and voltage waveforms are shown in Fig. P3.12, with t-4us and T-10us. (a) Calculate the average and rms source current and source voltage values (b) Caleulate the average input power Power Electronic Circuit -18A 4-12A Fig、 P3.12
