Homework Answers
Add Answer to:

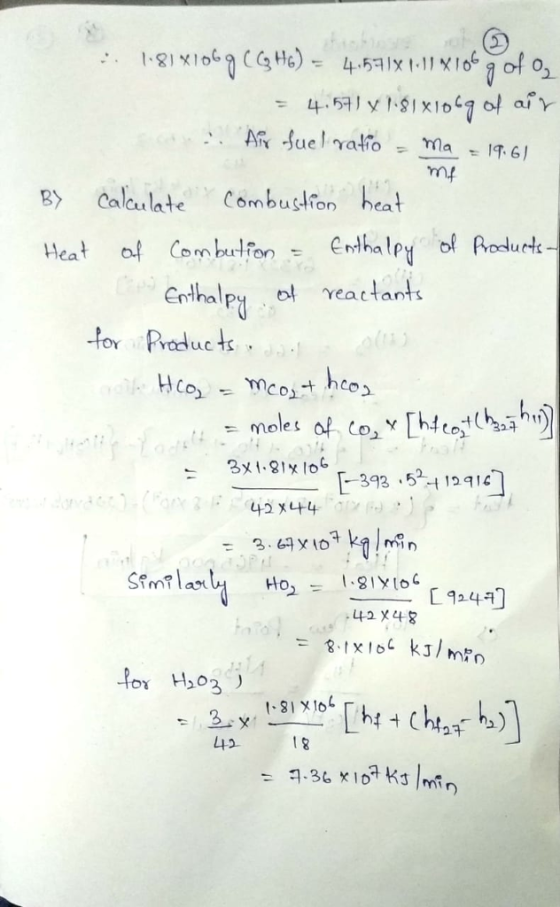

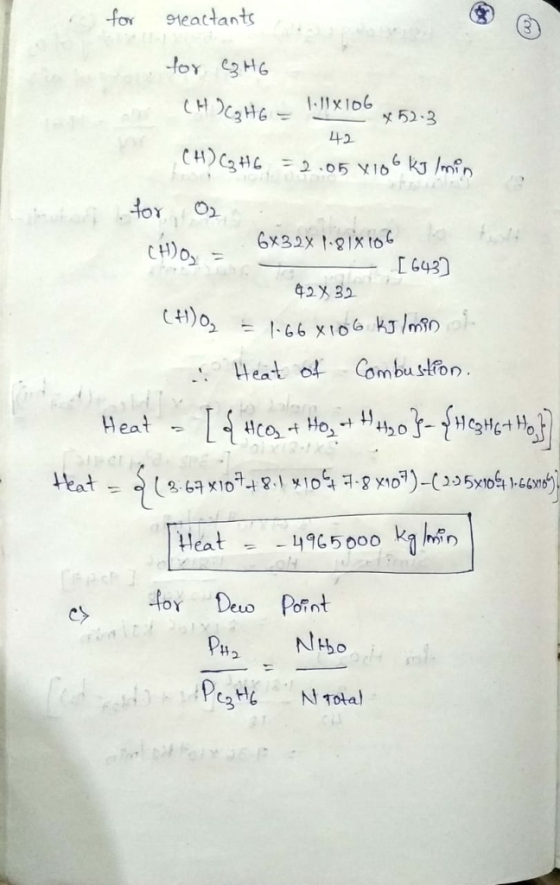

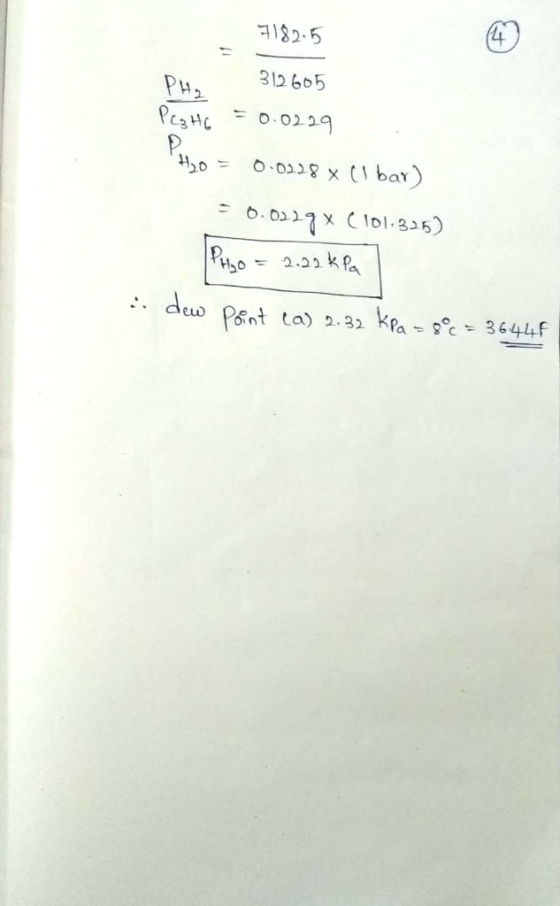

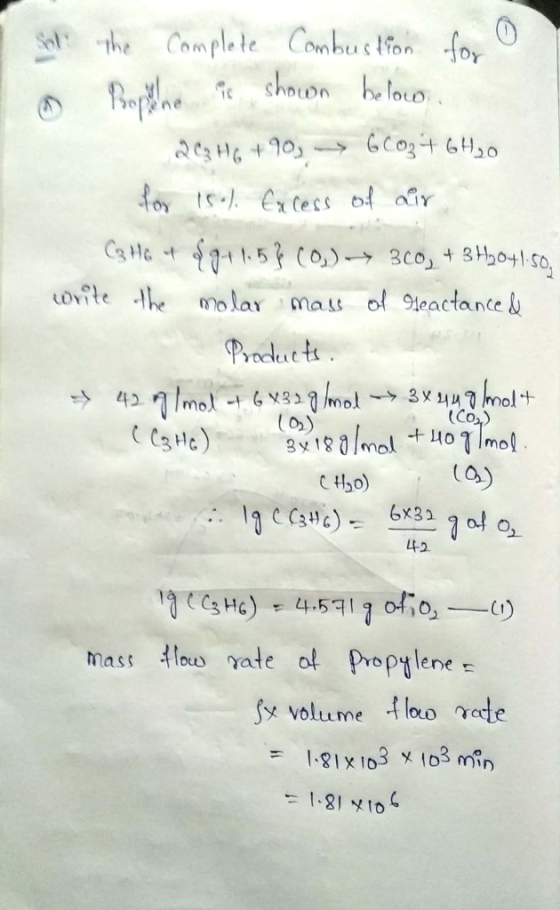

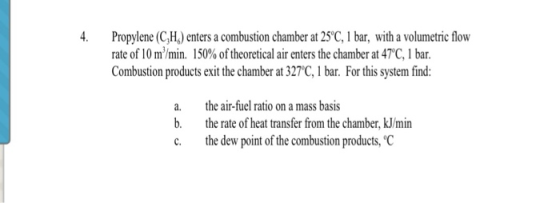

4. Propylene (C,H) enters a combustion chamber at 25 C, 1 bar, with a volumetric flow...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
A2. Ethylene vapour C2H4 at 27°C is burned in a combustion chamber with 15% excess air, which is also supplied at 27 °C. The temperature and pressure of the products of combustion are 640 °C and 1.1...
A2. Ethylene vapour C2H4 at 27°C is burned in a combustion chamber with 15% excess air, which is also supplied at 27 °C. The temperature and pressure of the products of combustion are 640 °C and 1.1 bar respectively. The heat released in the combustion chamber is used to heat oil. The combustion chamber is well insulated (a) Obtain the stoichiometric and the actual chemical equation for this process [1596] [1096] (b) The air fuel ratio by mass for the...
Problem 15.10: Liquid octane (CsHis) enters a steady-flow combustion chamber at 25°C and 1 atm at...
Problem 15.10: Liquid octane (CsHis) enters a steady-flow combustion chamber at 25°C and 1 atm at a rate of 0.35 kg/min. It is burned with 50 percent excess air that also enters at 25°C and 1 atm. After combustion, the products are allowed to cool to 25°C. Assuming complete combustion and that all the H2O in the products is in liquid form, determine (a) the heat transfer rate from the combustion chamber, (b) the entropy generation rate, and (c) the...
Octane gas at 25 C and 118 kPa enters a combustion chamber at a rate of...
Octane gas at 25 C and 118 kPa enters a combustion chamber at a rate of 0.09 m /min. The fuel is burned completely with 10 kg/min of dry air which enters the chamber at 22oC and 118 kPa. After combustion, the products are allowed to cool to 37oC and 118 kPa. The heat released by the combustion process is absorbed by another system which is at 460 K. If the surroundings are at 25oC, determine: (a) The heat transfer...
Gasoline enters a combustion chamber, at 1 atm, 298 K and a rate of 0.08 kg/min, where it burns s...
Gasoline enters a combustion chamber, at 1 atm, 298 K and a rate of 0.08 kg/min, where it burns steadily and completely, with 70% excess air that enters the chamber at 1 atm, 200 K. The exit temperature of the combustion products is 800 K. Use the IG mixture model for gases. Represent gasoline with liquid octane. a. Determine the mass flow rate, [kg of air/min], of air. b. Determine the rate of heat transfer, . c. What is the...
3. (35 P) Diesel fuel (C,H,) at 25°C is burned in a steady flow combustion chamber...
3. (35 P) Diesel fuel (C,H,) at 25°C is burned in a steady flow combustion chamber with 40 percent excess air air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. a) Using conservation of atoms, find number of moles and a , b) Actual AF (A/F) c) Actual Air flow rate (g/s), d) Calculate the exit temperature of the product gases. (h - h.) kJ/kmole Mkg/kmolc, T=298 K kJ/kmole CH, 0...
Moist air enters a duct at 10 °C, 80% relative humidity, and a volumetric flow rate...
Moist air enters a duct at 10 °C, 80% relative humidity, and a volumetric flow rate of 150 m3/min. The mixture is heated as it flows through the duct and exits at 30 °C. No moisture is added or removed and the mixture stays at 1 atm. Determine the rate of heat transfer and the relative humidity at the exit.
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with...
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. Calculate; a) Using conservation of atoms, find number of moles and a, b) stoichiometric AF (A/F) c) Air flow rate (g/s), c) calculate the exit temperature of the product gases for stoichiometric combustion.. CH, 29K (h - h.) kJ/kmole Mkg/kmol C, kJ/kmole T-298 K kJ/kmole -267120...
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion...
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion process with 95% theoretical air that enters the combustion chamber at 25 deg C. All the hydrogen in the fuel bums to H20, the carbon bums to CO and CO. f the products leave at 1000 K, determine a the mole fraction of the CO in the products [101 the heat transfer from the combustion chamber per kmol of fuel (15] b. (0.021cr
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow combustion chamber. An analysis of the combustion gases reveals that all the hydrogen in the fuel burns to H2O but 95 percent of the Carbon burns to CO2 with the remaining 5 percent forming CO. Treating the air as dry air, determine; (a)The balanced combustion equation. (b)The air-fuel ratio. (c)The amount of heat transfer (in kJ/kg of fuel) from the combustion process if the...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
A2. Ethylene vapour C2H4 at 27°C is burned in a combustion chamber with 15% excess air, which is also supplied at 27 °C. The temperature and pressure of the products of combustion are 640 °C and 1.1 bar respectively. The heat released in the combustion chamber is used to heat oil. The combustion chamber is well insulated (a) Obtain the stoichiometric and the actual chemical equation for this process [1596] [1096] (b) The air fuel ratio by mass for the...
Problem 15.10: Liquid octane (CsHis) enters a steady-flow combustion chamber at 25°C and 1 atm at a rate of 0.35 kg/min. It is burned with 50 percent excess air that also enters at 25°C and 1 atm. After combustion, the products are allowed to cool to 25°C. Assuming complete combustion and that all the H2O in the products is in liquid form, determine (a) the heat transfer rate from the combustion chamber, (b) the entropy generation rate, and (c) the...
3. (35 P) Diesel fuel (C,H,) at 25°C is burned in a steady flow combustion chamber with 40 percent excess air air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. a) Using conservation of atoms, find number of moles and a , b) Actual AF (A/F) c) Actual Air flow rate (g/s), d) Calculate the exit temperature of the product gases. (h - h.) kJ/kmole Mkg/kmolc, T=298 K kJ/kmole CH, 0...
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. Calculate; a) Using conservation of atoms, find number of moles and a, b) stoichiometric AF (A/F) c) Air flow rate (g/s), c) calculate the exit temperature of the product gases for stoichiometric combustion.. CH, 29K (h - h.) kJ/kmole Mkg/kmol C, kJ/kmole T-298 K kJ/kmole -267120...
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion process with 95% theoretical air that enters the combustion chamber at 25 deg C. All the hydrogen in the fuel bums to H20, the carbon bums to CO and CO. f the products leave at 1000 K, determine a the mole fraction of the CO in the products [101 the heat transfer from the combustion chamber per kmol of fuel (15] b. (0.021cr
