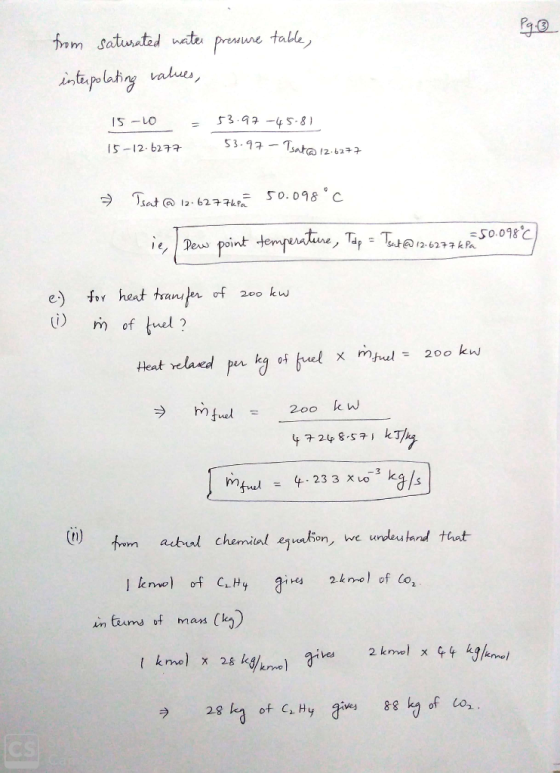

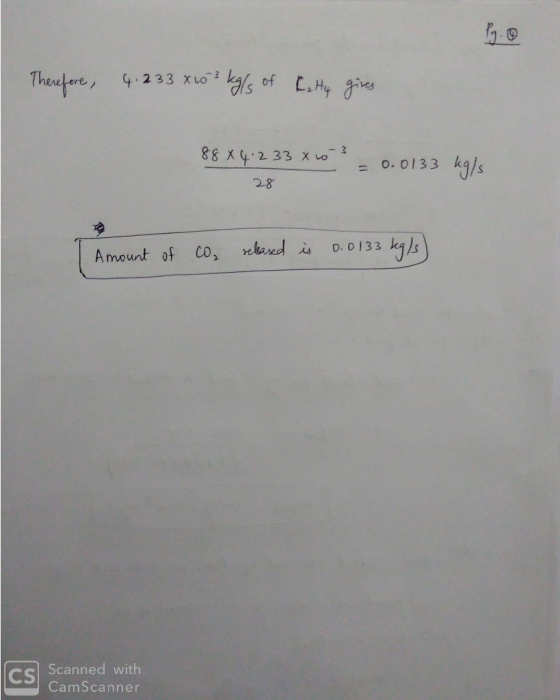

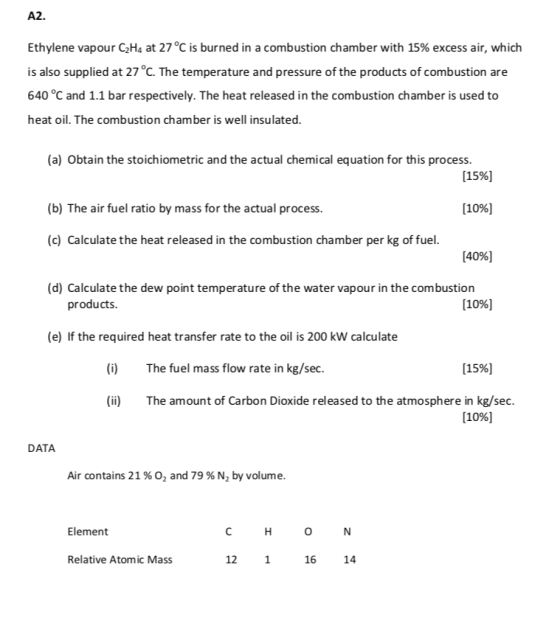

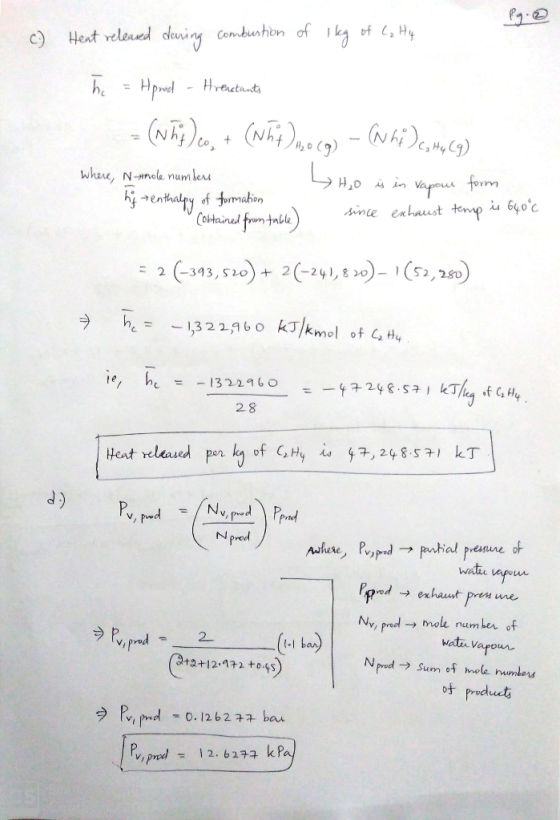

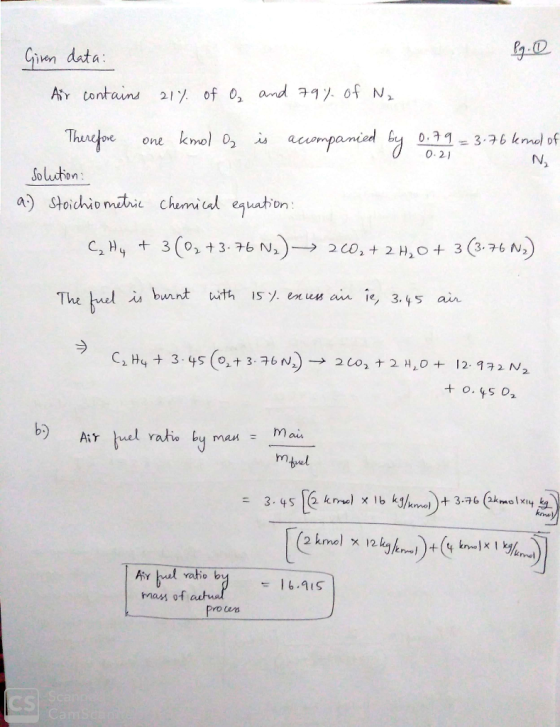

A2. Ethylene vapour C2H4 at 27°C is burned in a combustion chamber with 15% excess air, which is also supplied at 27 °C. The temperature and pressure of the products of combustion are 640 °C and 1.1...
Full Solutions please. Thank you! Dodecane is burned with 50% excess air and with a molar-base...
Full Solutions please. Thank you!
Dodecane is burned with 50% excess air and with a molar-base combustion efficiency of 90%. The emissions leave the combustion chamber at a total pressure of 100 kPa. a) Calculate the mass-base and molar-base fuel-to-air ratio. (10 pts) b) Calculate the mass-base and molar-base equivalence ratio. (10 pts) c) You should get the same result for the mass-base and molar-base equivalence ratios in part (b). Prove mathematically that it was not a fluke. (10 pts)...
a) Explain the reason why heat is released when a hydrocarbon fuel is burned in a combustion chamber.
a) Explain the reason why heat is released when a hydrocarbon fuel is burned in a combustion chamber.b) Why excess air is necessary to use in an actual combustion? Explain.c) \(n\) - Dodecane \(\left(C_{12} H_{26}\right)\) in gas form is burned in a combustion chamber with \(150 \%\) excess air.Determine the following:i) the chemical reaction equation showing all reactants and products.ii) the required air to fuel ratio by mass, \(A F_{m}\left(\frac{k g \text { air }}{k g \text { fuel }}\right)\),iii)...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow combustion chamber. An analysis of the combustion gases reveals that all the hydrogen in the fuel burns to H2O but 95 percent of the Carbon burns to CO2 with the remaining 5 percent forming CO. Treating the air as dry air, determine; (a)The balanced combustion equation. (b)The air-fuel ratio. (c)The amount of heat transfer (in kJ/kg of fuel) from the combustion process if the...
Octane gas at 25 C and 118 kPa enters a combustion chamber at a rate of...
Octane gas at 25 C and 118 kPa enters a combustion chamber at a rate of 0.09 m /min. The fuel is burned completely with 10 kg/min of dry air which enters the chamber at 22oC and 118 kPa. After combustion, the products are allowed to cool to 37oC and 118 kPa. The heat released by the combustion process is absorbed by another system which is at 460 K. If the surroundings are at 25oC, determine: (a) The heat transfer...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with...
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. Calculate; a) Using conservation of atoms, find number of moles and a, b) stoichiometric AF (A/F) c) Air flow rate (g/s), c) calculate the exit temperature of the product gases for stoichiometric combustion.. CH, 29K (h - h.) kJ/kmole Mkg/kmol C, kJ/kmole T-298 K kJ/kmole -267120...
1.f) Methane gas (CH4) enters a combustion chamber at a rate of 3 kg/sec at a...
1.f) Methane gas (CH4) enters a combustion chamber at a rate of 3 kg/sec at a temperature of 25 °C. A 200% theoretical air is supplied at a temperature of 400K. At the middle of methane combustion process (i.e., after 50% of methane gas is burnt), liquid propane (C3H8) at 25°C is injected at a rate that produces neither CO nor O2 in the flue gases. Assume steady state and adiabatic process at 1 atm, calculate the following i. The...
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by...
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by mass of 39.25 percent C, 6.93 percent H2, 41.11 percent 02, 0.72 percent N2, 0.79 percent S, and 11.20 percent Ash (non-combustibles) is burned steadily with 40% excess air. Assuming the combustion process as complete and treating the air as dry air, determine: (a) The balanced combustion equation for the combustion process. [6 Marks] (6) The Air-Fuel ratio [6 Marks) (c) The heat transfer...
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calcu...
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calculate the heat transferred in this heater, in kJ/kmol fuel. Use data from the tables The heat transfer in the heater iskJ/kmol.
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater...
In a gas turbine engine, the compressor takes in air at a temperature of 15°C, pressure...
In a gas turbine engine, the compressor takes in air at a temperature of 15°C, pressure of 100 kPa, and a volumetric flow rate of 5 m3 /s and compresses it to four times the initial pressure with an isentropic efficiency of 82%. The air then passes through a heat exchanger heated by the turbine exhaust before reaching the combustion chamber. In the heat exchanger 78% of the available heat is given to the air. The maximum temperature after constant...
Full Solutions please. Thank you!
Dodecane is burned with 50% excess air and with a molar-base combustion efficiency of 90%. The emissions leave the combustion chamber at a total pressure of 100 kPa. a) Calculate the mass-base and molar-base fuel-to-air ratio. (10 pts) b) Calculate the mass-base and molar-base equivalence ratio. (10 pts) c) You should get the same result for the mass-base and molar-base equivalence ratios in part (b). Prove mathematically that it was not a fluke. (10 pts)...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
2. (35P) Gasoline fuel (CH) at 25°C is burned in a steady flow combustion chamber with air that also enters at 25°C. The required mass flow rate of the diesel fuel is 49.5 g/s. Calculate; a) Using conservation of atoms, find number of moles and a, b) stoichiometric AF (A/F) c) Air flow rate (g/s), c) calculate the exit temperature of the product gases for stoichiometric combustion.. CH, 29K (h - h.) kJ/kmole Mkg/kmol C, kJ/kmole T-298 K kJ/kmole -267120...
1.f) Methane gas (CH4) enters a combustion chamber at a rate of 3 kg/sec at a temperature of 25 °C. A 200% theoretical air is supplied at a temperature of 400K. At the middle of methane combustion process (i.e., after 50% of methane gas is burnt), liquid propane (C3H8) at 25°C is injected at a rate that produces neither CO nor O2 in the flue gases. Assume steady state and adiabatic process at 1 atm, calculate the following i. The...
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by mass of 39.25 percent C, 6.93 percent H2, 41.11 percent 02, 0.72 percent N2, 0.79 percent S, and 11.20 percent Ash (non-combustibles) is burned steadily with 40% excess air. Assuming the combustion process as complete and treating the air as dry air, determine: (a) The balanced combustion equation for the combustion process. [6 Marks] (6) The Air-Fuel ratio [6 Marks) (c) The heat transfer...
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calculate the heat transferred in this heater, in kJ/kmol fuel. Use data from the tables The heat transfer in the heater iskJ/kmol.
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater...
