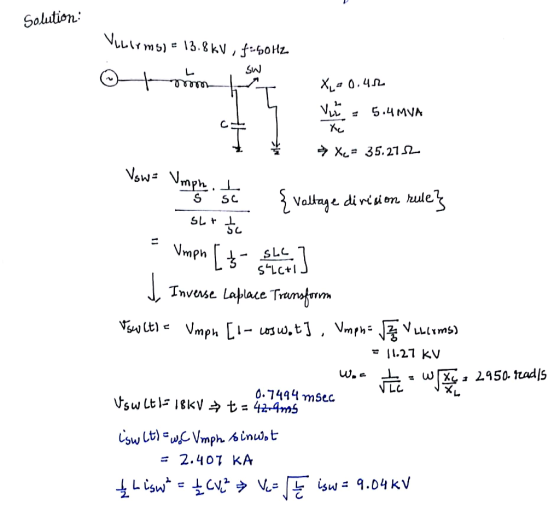

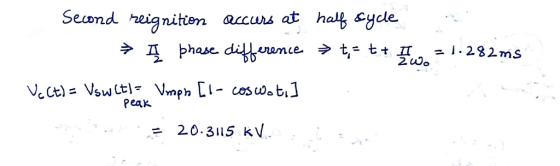

A 13.8 kV, three-phase bus is supplied from a solidly grounded system with an effective reactance of 0.4 Ohm. A 5.4 MVA capacitor bank is connected to a bus. During switching operation to disconnect the capacitor from the bus, the switch reignites, the reignite ion occurring when the voltage across the switch is 18 kV. What will be the peak value of the reignition current? What voltage will be left trapped on the capacitor if this reignition current is interrupted? At its first current zero? At its second current zero? If following (a), a second reignition occurs exactly half a cycle after the first, what would then be the peak transient voltage appearing on the capacitor? Note: supply voltage is of the form vs(t) = Vs * sqrt(2) * cos(wt)
STOP COPYING THE SAME ESSAY FROM PREVIOUS SUBMISSIONS OF THIS QUESTION. THIS SHOULD BE CALCULATIONS NOT A RESEARCH PAPER
