A 2.0-Kg mass and a 3.0-Kg mass are on a horizontal friction-less surface, connected by a...

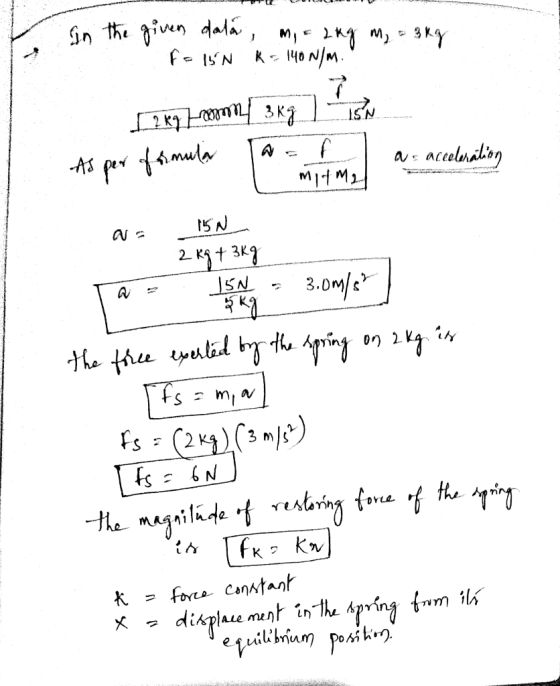

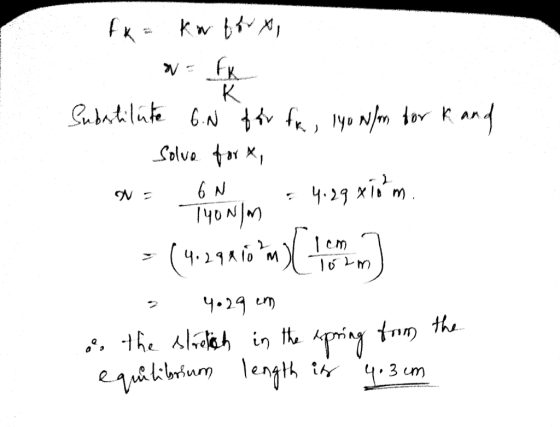

A 2.0-Kg mass and a 3.0-Kg mass are on a horizontal friction-less surface, connected by a massless spring with spring constant k = 140N/m. A 15-N force us applied to the larger mass.
1. How much does the spring stretch from its equilibrium length?
