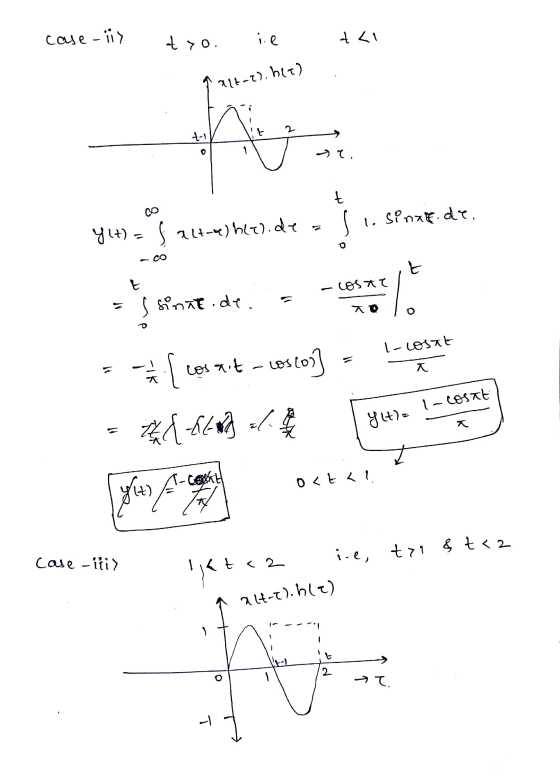

![case-ii7 d. so. ie 441 (tor).ht) se. ll.sinate.de. Ylt) = falta) 6(e).de a -00 To a natide. = -los ats = -{cos *t - 18stor] =](http://img.homeworklib.com/questions/27b59910-240b-11eb-8c74-e76a10650e71.png?x-oss-process=image/resize,w_560)
Add Answer to:

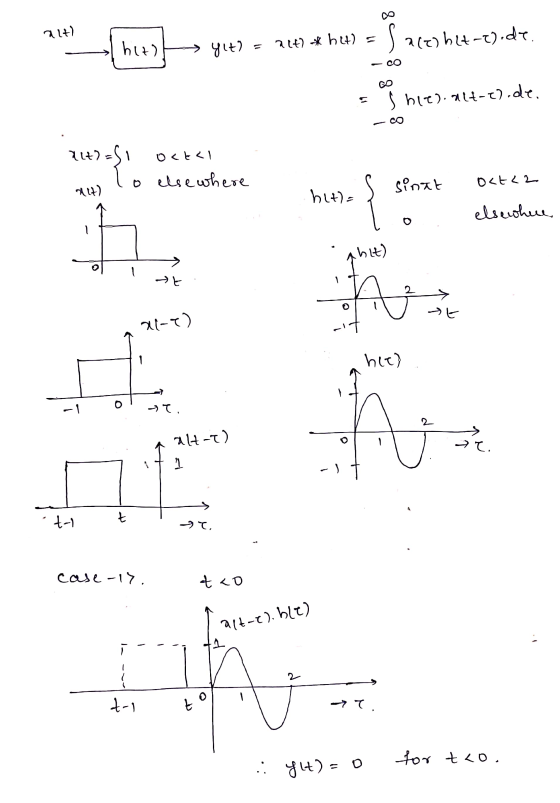

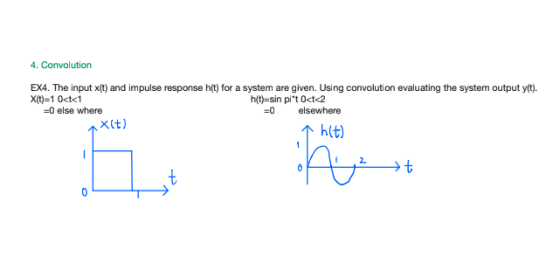

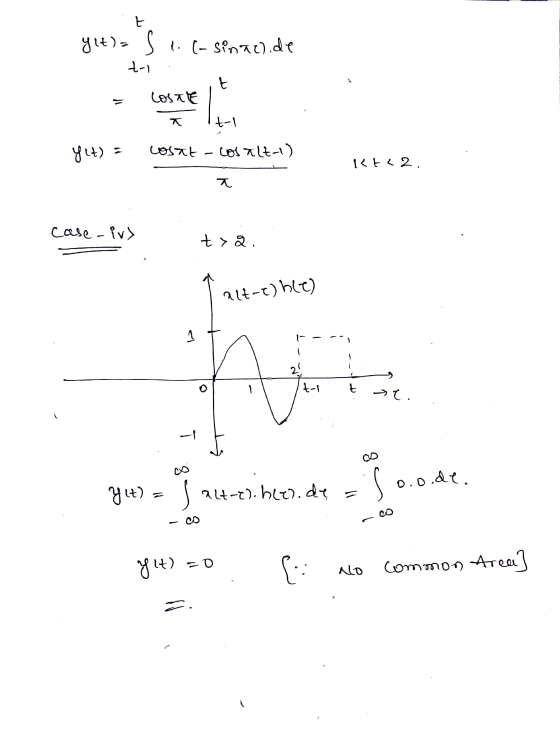

4. Convolution EX4. The input X(t) and impulse response h(t) for a system are given. Using...
A system has an input, x(t) and an impulse response, h(t). Using the convolution integral, find...
A system has an input, x(t) and an impulse response, h(t). Using
the convolution integral,
find and plot the system output, y(t), for the combination given
below.
x(t) is P3.2(e) and h(t) is P3.2(f).
1/2 cycle of 2 cos at -2. (e)
(1) For the impulse response (h(t)) and input signal (x(t)) of an LTI system shown below,...
(1) For the impulse response (h(t)) and input signal (x(t)) of an LTI system shown below, find and plot the output response (y(t)) by integrating the convolution analytically h(t) x(t) t (s)
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n)...
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
The output of this system v(t) is a convolution of the input r(t) and an impulse...
The output of this system v(t) is a convolution of the input r(t) and an impulse response h(t). Find a simple expression for the impulse response h(t). Simplify the expression so that it doesn't contain any explicit convolutions. y(t) dt
Let x(t) = tu(t) be the input to a LTI with impulse response h(t) = t...
Let x(t) = tu(t) be the input to a LTI with impulse response h(t) = t 2u(t). Find the output y(t) using convolution
Let a system have impulse response h(t) and input x(t) given by (1257) (37704) +20 cos...
Let a system have impulse response h(t) and input x(t) given by (1257) (37704) +20 cos t0.01 20 cos C = 628 e-628t u(t), h(t) r(t) 0, else Using the same frequency scale (you can use different magnitude scales), plot the following over the range 1500 Hz (a) Hf) (b) X(f)(e) |Y(f)|
1. Evaluate and sketch the convolution integral (the output y(t)) for a system with input x(t)...
1. Evaluate and sketch the convolution integral (the output y(t)) for a system with input x(t) and impulse response h(t), where x(t) = u(1-2) and h(t)= "u(t) u(t) is the unit step function. Please show clearly all the necessary steps of convolution. Determine the values of the output y(t) at 1 = 0,1 = 3,1 = 00. (3 pts)
Roblem1 hat is the output of the system if the input and the impulse response are X(t) h(t) 4 -1
roblem1 hat is the output of the system if the input and the impulse response are X(t) h(t) 4 -1
roblem1 hat is the output of the system if the input and the impulse response are X(t) h(t) 4 -1
Problem 4: [10 Points A LTIC systems has impulse response as showm betlow t h(t) Using analytical or graphical convolution, find and sketch the system's output yto if the input x (t) is: x(t)...
Problem 4: [10 Points A LTIC systems has impulse response as showm betlow t h(t) Using analytical or graphical convolution, find and sketch the system's output yto if the input x (t) is: x(t):#6(t) _ 26(t-1)[31 a) b) x(o) - rect ()17 Solution:
Problem 4: [10 Points A LTIC systems has impulse response as showm betlow t h(t) Using analytical or graphical convolution, find and sketch the system's output yto if the input x (t) is: x(t):#6(t) _ 26(t-1)[31 a)...
Problem 1: Let the impulse response of an LTI system be given by 0 t< h(t)...
Problem 1: Let the impulse response of an LTI system be given by 0 t< h(t) = 〉 1 0 < t < 1 0 t>1 Find the output y(t) of this system if the input is given by a) x(t) = 1 + cos(2nt) b) x(t)-cos(Tt) c) x(t) sin (t )l d) x(t) = 1 0 < t < 10 0 t 10 e) x(t) = δ(t-2)-5(t-4) f) a(t)-etu(t) Problem 2: For the same LTI system in Problem 1,...
A system has an input, x(t) and an impulse response, h(t). Using
the convolution integral,
find and plot the system output, y(t), for the combination given
below.
x(t) is P3.2(e) and h(t) is P3.2(f).
1/2 cycle of 2 cos at -2. (e)
(1) For the impulse response (h(t)) and input signal (x(t)) of an LTI system shown below, find and plot the output response (y(t)) by integrating the convolution analytically h(t) x(t) t (s)
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
The output of this system v(t) is a convolution of the input r(t) and an impulse response h(t). Find a simple expression for the impulse response h(t). Simplify the expression so that it doesn't contain any explicit convolutions. y(t) dt
Let a system have impulse response h(t) and input x(t) given by (1257) (37704) +20 cos t0.01 20 cos C = 628 e-628t u(t), h(t) r(t) 0, else Using the same frequency scale (you can use different magnitude scales), plot the following over the range 1500 Hz (a) Hf) (b) X(f)(e) |Y(f)|
1. Evaluate and sketch the convolution integral (the output y(t)) for a system with input x(t) and impulse response h(t), where x(t) = u(1-2) and h(t)= "u(t) u(t) is the unit step function. Please show clearly all the necessary steps of convolution. Determine the values of the output y(t) at 1 = 0,1 = 3,1 = 00. (3 pts)
roblem1 hat is the output of the system if the input and the impulse response are X(t) h(t) 4 -1
roblem1 hat is the output of the system if the input and the impulse response are X(t) h(t) 4 -1
Problem 4: [10 Points A LTIC systems has impulse response as showm betlow t h(t) Using analytical or graphical convolution, find and sketch the system's output yto if the input x (t) is: x(t):#6(t) _ 26(t-1)[31 a) b) x(o) - rect ()17 Solution:
Problem 4: [10 Points A LTIC systems has impulse response as showm betlow t h(t) Using analytical or graphical convolution, find and sketch the system's output yto if the input x (t) is: x(t):#6(t) _ 26(t-1)[31 a)...
Problem 1: Let the impulse response of an LTI system be given by 0 t< h(t) = 〉 1 0 < t < 1 0 t>1 Find the output y(t) of this system if the input is given by a) x(t) = 1 + cos(2nt) b) x(t)-cos(Tt) c) x(t) sin (t )l d) x(t) = 1 0 < t < 10 0 t 10 e) x(t) = δ(t-2)-5(t-4) f) a(t)-etu(t) Problem 2: For the same LTI system in Problem 1,...
