Homework Answers
Add Answer to:

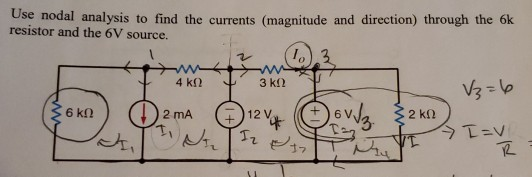

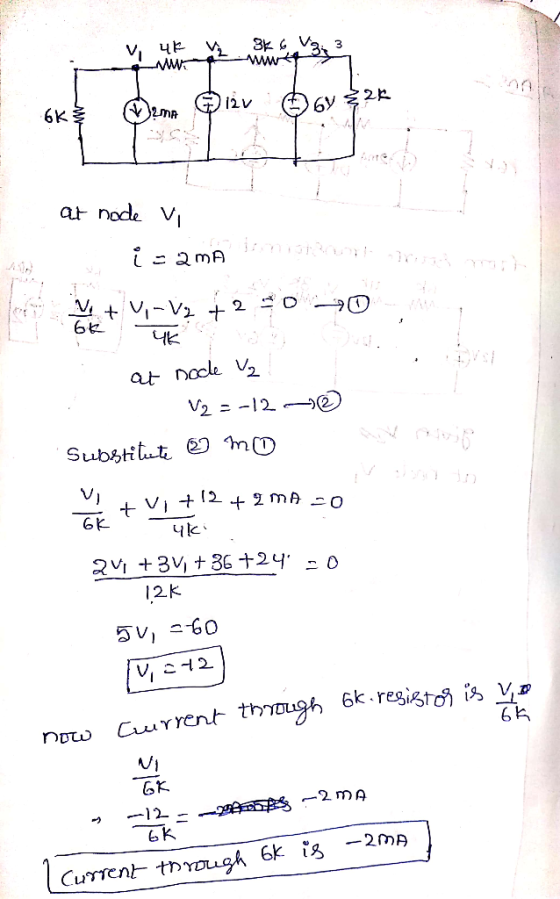

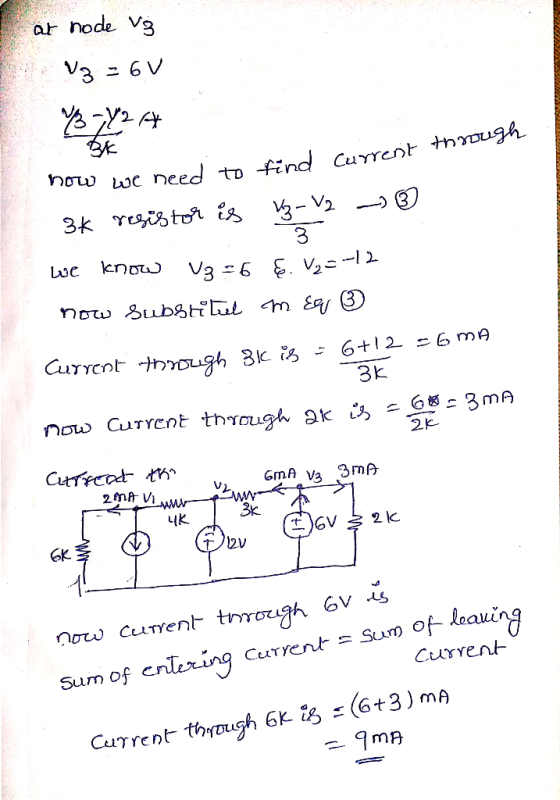

Use nodal analtvsis to find the curents (magnitude and direction) through the 6k. resistor and the...
