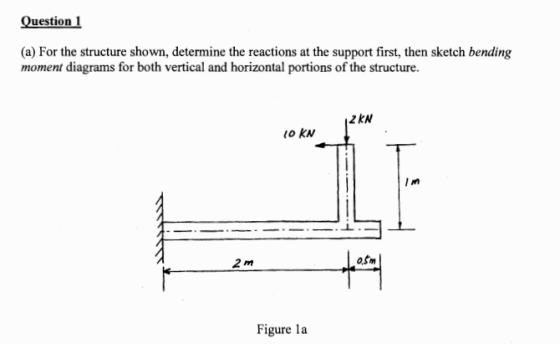

Question 1 (a) For the structure shown, determine the reactions at the support first, then sketch bending moment diagrams for both vertical and horizontal portions of the structure. 2KN z kN 0 KN I m 2 m osm Figure la

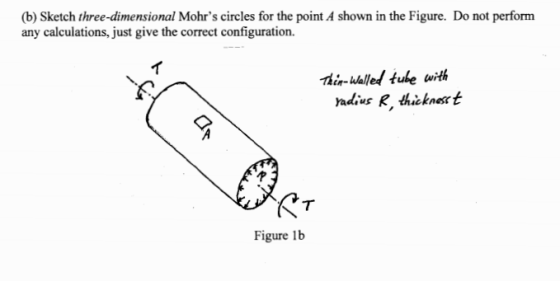

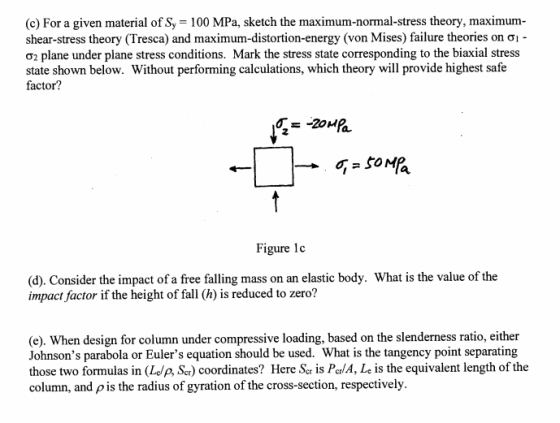

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

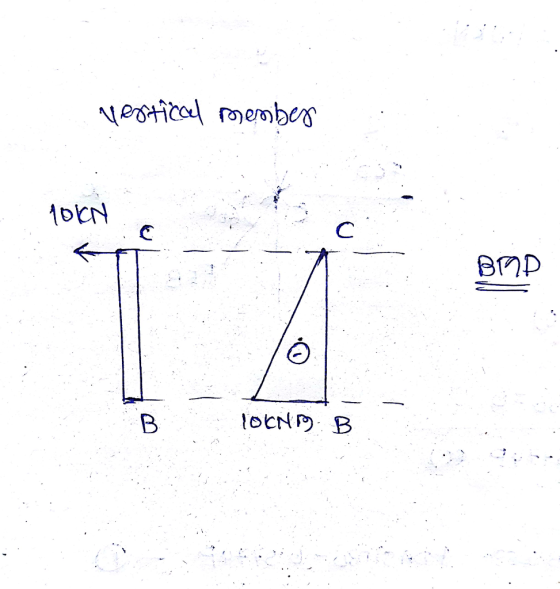

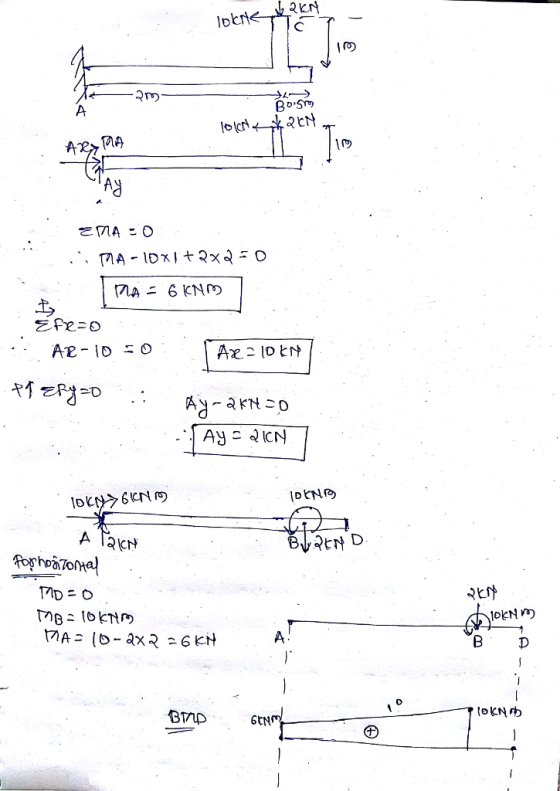

2匕丹 AICN By?마 D 0 [oKN巾 BnD 6CN

0 0
Add a comment
Know the answer?
Add Answer to:
Question 1 (a) For the structure shown, determine the reactions at the support first, then sketch...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Question AT For the beam and loading shown in Figure Al: - a. Determine the support...

    Question AT For the beam and loading shown in Figure Al: - a. Determine the support reactions b. Draw the shear and bending moment diagrams c. Determine the maximum absolute value of shear force and bending moment. 30 kN/m 60 kN C D K-2m-imta2m- Figure A1

  • solution step by step please Determine the support reactions and draw the shear and bending moment...

    solution step by step please Determine the support reactions and draw the shear and bending moment diagrams for the structure shown in Figure 1 by using the method of consistent deformations. X1 kN-I D 6 m x, kN/m 4m- 1-5 7 kN.m 4m Figure 1 X2= 606 kN/m

  • QUESTION 2 [30 Marks) The framed structure shown in Figure 2 has simple supports (i.e. is...

    QUESTION 2 [30 Marks) The framed structure shown in Figure 2 has simple supports (i.e. is free to rotate) at joints A and G. Members AC and GE are vertical, while CE and EH are horizontal. There is an internal moment release at joint C. A uniformly distributed load of 5 kN/m is applied between D and E, and another uniformly distributed load of 4 kN/m is applied between F and G as shown. There is also a horizontal point...

  • Question 1 For the structure shown in Figure 1: (a) Find the reactions at A and...

    Question 1 For the structure shown in Figure 1: (a) Find the reactions at A and D. (b) Draw the bending moment and shear force diagrams showing all peak values. -The joints at B and C are internal pins (6 marks) (9 marks) Hints: (Total marks for Q1 -15) 50 kN 50 kN 4m 10kN/m 8m Figure 1

  • For the beam and loading shown in Figure A2: - a. Determine the support reactions b....

    For the beam and loading shown in Figure A2: - a. Determine the support reactions b. Draw the shear and bending moment diagrams c. Determine the maximum absolute value of shear force and bending moment P= 100 N P= 140 N w = 30 N/m A B 4 m 7 m 10 m 3 Figure A2.

  • Solve the following problems: (25 pts. each) Problem 1 Determine the support reactions then draw the...

    Solve the following problems: (25 pts. each) Problem 1 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below P !!K LR4 Problem 2 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below 구K 4.5 ,81 7 Problem 3 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below. Ptok Problem 4...

  • 1) Determine the reactions at the supports for the structures shown. The support at A is...

    1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...

  • QUESTION 2 Beam ABCD is 8 m in length and is pin-supported at A and roller-supported...

    QUESTION 2 Beam ABCD is 8 m in length and is pin-supported at A and roller-supported at C as shown in Figure Q2. A counter-clockwise concentrated moment acts about the support A. A uniformly-distributed load acts on span BC and a vertical concentrated load acts at the free end D a) Determine the reactions at supports A and C. 4 marks) b) Obtain the shear force and the bending moment functions (in terms of x) for each segment along the...

  • The beam is loaded as shown in the diagram below. The beam is uniformly loaded at...

    The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...

  • Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram...

    Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) Question 1 (20 marks) Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) 25 kN/m 2C 3 m D 4 m 6 m Show your computations in the solution book then...
