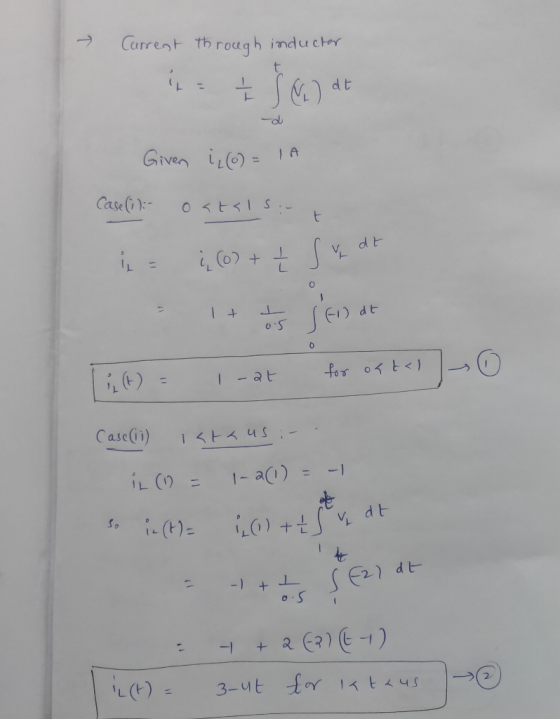

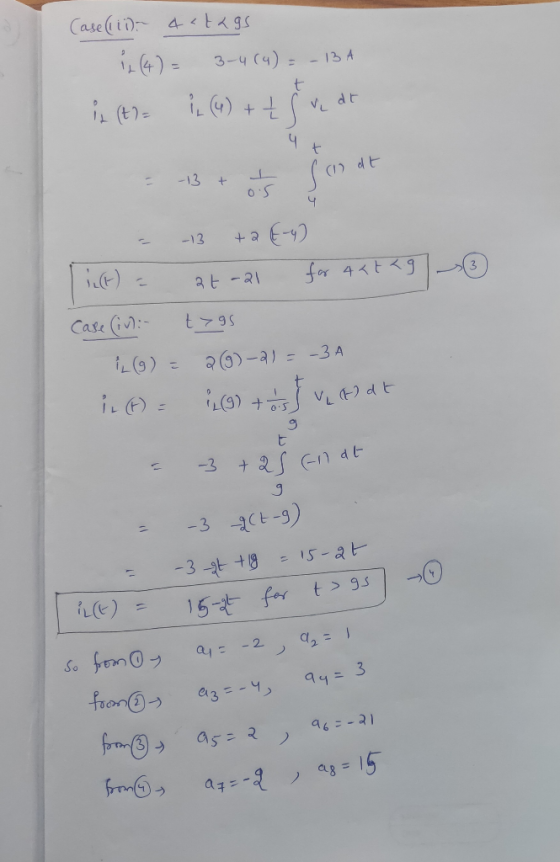

Determine the value of a1 to a8 Find the current i(t) in the circuit, when i(0)...
4)
Given Variables:
L1 : 0.1 H
Determine the following:
a1 (A/s) :
a2 (A) :
a3 (A/s) :
a4 (A) :
a5 (A/s) :
a6 (A) :
a7 (A/s) :
a8 (A) :

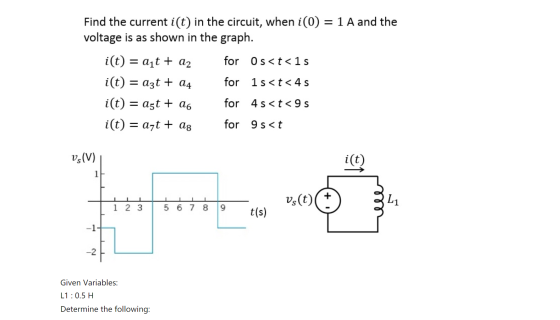

Find the current i(t) in the circuit, when i(0)-1A and the voltage is as shown in the graph i(t) -att a2 for Os<t<1s for 1s<t<4s for 4 s<t<9s for 9 s <t i(t) ast + a6 8 vs(V) i(t) 1 2 3 5 6789t(s)
