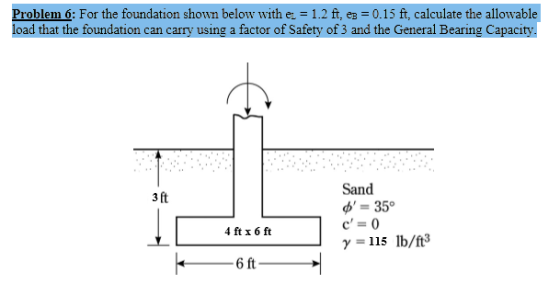

Problem 6: For the foundation shown below with eL = 1.2 ft, eB =
0.15 ft, calculate the allowable load that the foundation can carry
using a factor of Safety of 3 and the General Bearing
Capacity.

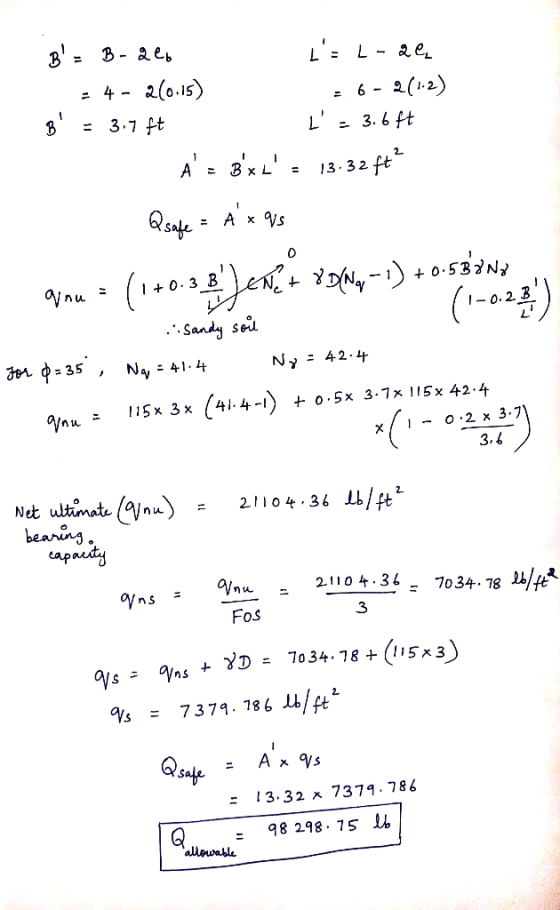

Homework Answers
Add Answer to:
Problem 6: For the foundation shown below with eL = 1.2 ft, eB =
0.15 ft,...
a 39 in wide ,24 inch deep continuous footing supports a wall load of 12 kips/ft....
a 39 in wide ,24 inch deep continuous footing supports a wall load of 12 kips/ft. this footing underlain by pure medium dense sand with D' = 31° and γ = 122 Lb/ft3. The ground water table is at a depth of 4 ft below the ground surface. Determine the allowable bearing capacity of this foundation using a factor of safety FS=2.5
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft,...
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft, Df = 4 ft, e = 0.5 ft, γt = 110 pcf, c’=0 and ϕ’ = 30°. Note the ground water table is at great depth below the footing. Calculate the general bearing capacity to determine the maximum allowable load that the foundation can carry using Meyerhof’s effective area method for a FS of 3.
Please solve each and explain process and equations 5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a gen...
Please solve each and explain
process and equations
5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a general failure, if the water table were at and below the elevation of the bottom of the foundation. A factor of safety is 2.2. Qall 6 ft SAND φ =36 0 e007 2R 16 ft> 16 ft CLAY 18 ft : 0.5 еой 0.8 Y sat 135 pcf ROCK...
Please solve step by step and clearly thank you Q5. A column foundation shown below is...
Please solve step by step and clearly thank you
Q5. A column foundation shown below is 3mx2m in plan. Given: D=2m, '=20°, and c'=45 kN/m2. Using Meyerhof's bearing capacity general equation and FS=3, determine the net allowable load the foundation could carry. Use bearing capacity, shape and depth factors. (15p) Y=16.8kN/m 2m Groundwater level_ -- Ysat=19.4kN/m 3m*2m
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5...
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5 m (length). D 1.2 m (depth), Y 20 kN/m'. '- 32°, c'-50 kPa, Use Terzaghi and Vesic Equations and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil
A drilled shaft, as shown below has the following dimensions: L1 = 22 ft, Ds =...
A drilled shaft, as shown below has the following dimensions: L1 = 22 ft, Ds = 48 in and L2 = 14 ft · The soil data is provided in the figure below. Determine the allowable point bearing capacity Qp(all) of the drilled shaft (in kips) if a F.S. of 3 is utilized Sand ø= 30° Vi= 104 #/ft? Saturated Sand Ysat = 115 #/ft?
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3...
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3ft Poorly Graded Sand (SP): 1m115 pcf (above G.W.T.) Ysat 125 pcf (below G.W.T.) Square footing, 4'x 4 imension Infoma 1-ft x 1-ft square concrete column. 1-ft thick foot" flanges conc 150 pcf Assume weight of reinforcing steel included in unit weight of concrete. Assume compacte weighs the same as in-situ soil d backfil Assume this foundation is being designed for a warehouse that had...
A 100,000 lb load has to be carried by a concrete square foundation placed 3 ft...
A 100,000 lb load has to be carried by a concrete square foundation placed 3 ft below the surface of a saturated sandy soil having the following properties: γt = 120 pcf E = 2x105 psf φ' = 30deg ν = 0.25 c' = 0 What footing width will be required for a factor of safety with respect to the ultimate bearing capacity of 3.0, and for a maximum settlement of 1". The water table is at the ground surface.
2. Vane shear strength. c, (field) (tre) A continuous foundation is shown in the attached figure,...
2. Vane shear strength. c, (field) (tre) A continuous foundation is shown in the attached figure, along with the field vane shear test results. Estimate the gross allowable bearing capacity for FS = 3 and y = 121 lb/ft" Solve the problem in two ways: a) Calculate the weighted shear strength within the relevant depth and use the general B.C. equation. b) Treating the subsurface as a two- layer system (refer to Section 4.3). Depth (ft)
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
Please solve each and explain
process and equations
5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a general failure, if the water table were at and below the elevation of the bottom of the foundation. A factor of safety is 2.2. Qall 6 ft SAND φ =36 0 e007 2R 16 ft> 16 ft CLAY 18 ft : 0.5 еой 0.8 Y sat 135 pcf ROCK...
Please solve step by step and clearly thank you
Q5. A column foundation shown below is 3mx2m in plan. Given: D=2m, '=20°, and c'=45 kN/m2. Using Meyerhof's bearing capacity general equation and FS=3, determine the net allowable load the foundation could carry. Use bearing capacity, shape and depth factors. (15p) Y=16.8kN/m 2m Groundwater level_ -- Ysat=19.4kN/m 3m*2m
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5 m (length). D 1.2 m (depth), Y 20 kN/m'. '- 32°, c'-50 kPa, Use Terzaghi and Vesic Equations and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil
A drilled shaft, as shown below has the following dimensions: L1 = 22 ft, Ds = 48 in and L2 = 14 ft · The soil data is provided in the figure below. Determine the allowable point bearing capacity Qp(all) of the drilled shaft (in kips) if a F.S. of 3 is utilized Sand ø= 30° Vi= 104 #/ft? Saturated Sand Ysat = 115 #/ft?
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3ft Poorly Graded Sand (SP): 1m115 pcf (above G.W.T.) Ysat 125 pcf (below G.W.T.) Square footing, 4'x 4 imension Infoma 1-ft x 1-ft square concrete column. 1-ft thick foot" flanges conc 150 pcf Assume weight of reinforcing steel included in unit weight of concrete. Assume compacte weighs the same as in-situ soil d backfil Assume this foundation is being designed for a warehouse that had...
2. Vane shear strength. c, (field) (tre) A continuous foundation is shown in the attached figure, along with the field vane shear test results. Estimate the gross allowable bearing capacity for FS = 3 and y = 121 lb/ft" Solve the problem in two ways: a) Calculate the weighted shear strength within the relevant depth and use the general B.C. equation. b) Treating the subsurface as a two- layer system (refer to Section 4.3). Depth (ft)
