Homework Answers
Add Answer to:

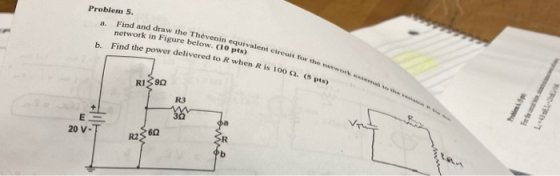

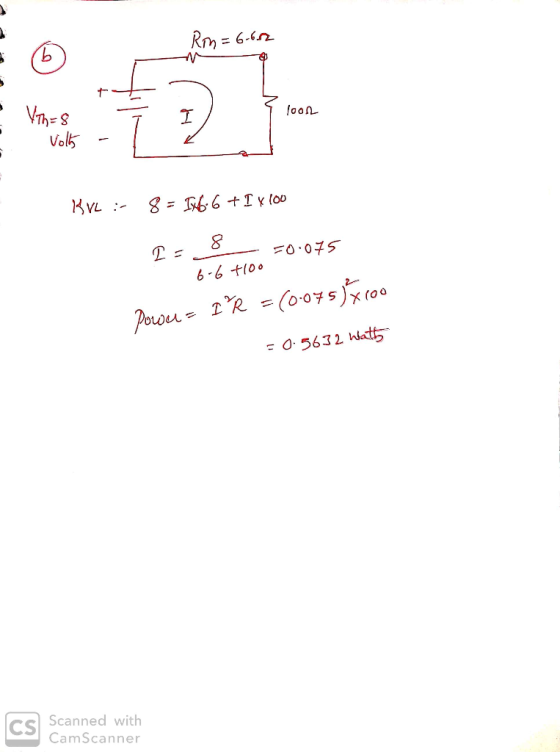

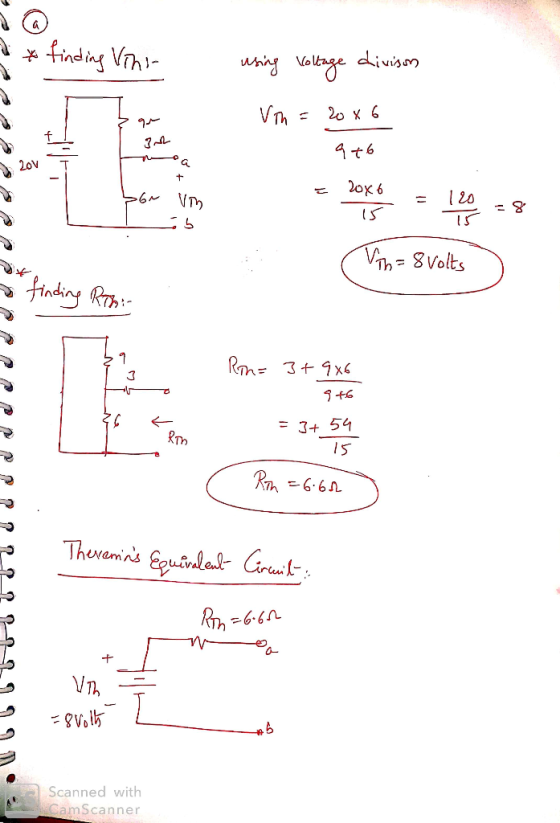

Problem 5. a. Find and de mind and draw the Thévenin equivalent circuit for the network...
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure...
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 4. (b)Find the current through R when R is 22, 302, and 100 S2. Figure 4 5. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 5. (b)Find the power delivered to R when R is 2 k2 and 100 3000 11 04ko 21.20 Figure 5 6. (a)Find the Thevenin equivalent circuit for the network external to the...
3. 25 pts. Find the Thévenin equivalent of the network seen by the 3-22 load resistor...
3. 25 pts. Find the Thévenin equivalent of the network seen by the 3-22 load resistor in the circuit below. (a) VTH, Thévenin voltage. (b) RTH, Thévenin resistance. (e) What is the required load resistance to maximize power at the load. (d) Compute the voltage V, across the given the 3 2 load resistance using Thévenin Equivalent circuit. w
Computer Science, Physics and Engineering Q5: [ 20 points). For the network in Fig. 5: a....
Computer Science, Physics and Engineering Q5: [ 20 points). For the network in Fig. 5: a. Find the Thévenin equivalent circuit. b. Find the resistance R in Fig. 5 such that the resistor R will receive maximum power. c. Find the maximum power delivered to R. R3 R w 612 NNN E 18 v RB3n Figure 5: Problem Q5
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as...
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as seen by terminals a-b. 1 k w oa 35k 320k 25 mA 45 kn 50 V .b RTH (5 pts) VTH (15 pts) b) Determine the max power Pmax to a load R that will be connected to terminals a-b. (10 pts)
*14. Determine the Thévenin equivalent circuit for the network external to the resistor R in both...
*14. Determine the Thévenin equivalent circuit for the network external to the resistor R in both networks in Fig. 9.132. RI R3 R5 2012 12 12 212 + E 20 V R2 512 R4 1612 R IK
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and...
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and b. Draw the equivalent circuit in your examination book. 12 kΩ 15 k2 36 V 1 60 kΩ Vab 18 mA
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with...
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with the load impedance. V 10 /0° V, w 1000 rad/s. Calculate the current through and the voltage across the load resistor. (30 pts) L1 1 mH R1 L2 500 Q 1 mH V C1 RL 100 μF 1.5 kQ
Problem 2 (30 pts): Consider the following circuit. Find both the Thévenin and Norton equivalent with...
Problem 2 (30 pts): Consider the following circuit. Find both the Thévenin and Norton equivalent with respect to terminals a and b. Be sure to label which is which. 400 250 W
LEXE Problem 2(25 points) For the circuit. a)Find the Thévenin equivalent circuit for the portion of...
LEXE Problem 2(25 points) For the circuit. a)Find the Thévenin equivalent circuit for the portion of the circuit shown external to the elements between a and b. Xc 60 80 + 8n E = 9V Z0 | b) Find the load impedance ZL for the circuit shown for maximum power to the load, and find the maximum power to the load.
Find the Thévenin equivalent with respect to the terminals a,b in the circuit
Find the Thévenin equivalent with respect to the terminals a,b in the circuit in figure 3 below:
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 4. (b)Find the current through R when R is 22, 302, and 100 S2. Figure 4 5. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 5. (b)Find the power delivered to R when R is 2 k2 and 100 3000 11 04ko 21.20 Figure 5 6. (a)Find the Thevenin equivalent circuit for the network external to the...
3. 25 pts. Find the Thévenin equivalent of the network seen by the 3-22 load resistor in the circuit below. (a) VTH, Thévenin voltage. (b) RTH, Thévenin resistance. (e) What is the required load resistance to maximize power at the load. (d) Compute the voltage V, across the given the 3 2 load resistance using Thévenin Equivalent circuit. w
Computer Science, Physics and Engineering Q5: [ 20 points). For the network in Fig. 5: a. Find the Thévenin equivalent circuit. b. Find the resistance R in Fig. 5 such that the resistor R will receive maximum power. c. Find the maximum power delivered to R. R3 R w 612 NNN E 18 v RB3n Figure 5: Problem Q5
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as seen by terminals a-b. 1 k w oa 35k 320k 25 mA 45 kn 50 V .b RTH (5 pts) VTH (15 pts) b) Determine the max power Pmax to a load R that will be connected to terminals a-b. (10 pts)
*14. Determine the Thévenin equivalent circuit for the network external to the resistor R in both networks in Fig. 9.132. RI R3 R5 2012 12 12 212 + E 20 V R2 512 R4 1612 R IK
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and b. Draw the equivalent circuit in your examination book. 12 kΩ 15 k2 36 V 1 60 kΩ Vab 18 mA
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with the load impedance. V 10 /0° V, w 1000 rad/s. Calculate the current through and the voltage across the load resistor. (30 pts) L1 1 mH R1 L2 500 Q 1 mH V C1 RL 100 μF 1.5 kQ
Problem 2 (30 pts): Consider the following circuit. Find both the Thévenin and Norton equivalent with respect to terminals a and b. Be sure to label which is which. 400 250 W
LEXE Problem 2(25 points) For the circuit. a)Find the Thévenin equivalent circuit for the portion of the circuit shown external to the elements between a and b. Xc 60 80 + 8n E = 9V Z0 | b) Find the load impedance ZL for the circuit shown for maximum power to the load, and find the maximum power to the load.
