Using the law of conservation of energy derive the equation of motion for system shown in...

Question

Question

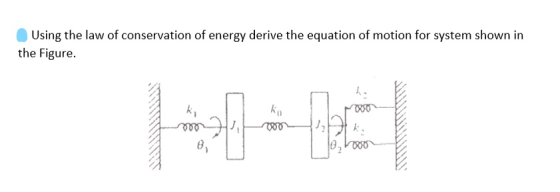

Using the law of conservation of energy derive the equation of motion for system shown in the Figure. 060

engineering Electrical-Engineering

Answer 1

Answer #1

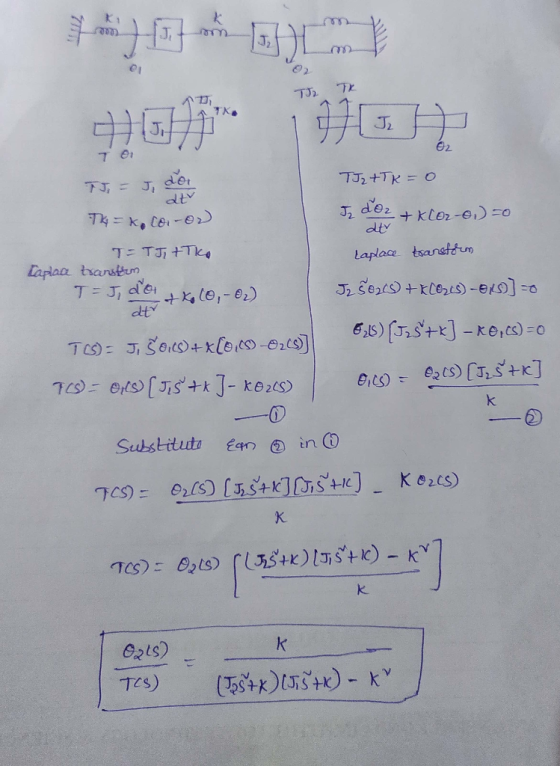

3 . те, TJ ₂ + TK = 0 TH= x, coi-02) т: TJ, Tk Laplac tanstiem T = J, der ko (O, -02) I In der + kloze)=0 der Laplace transfo

Answer 2
