Homework Answers

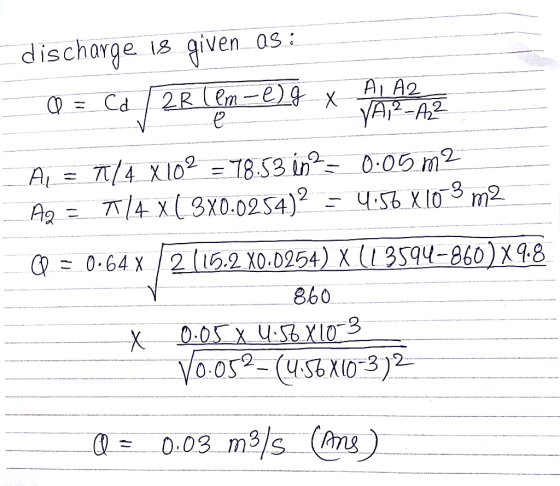

Solution 3:
Add Answer to:

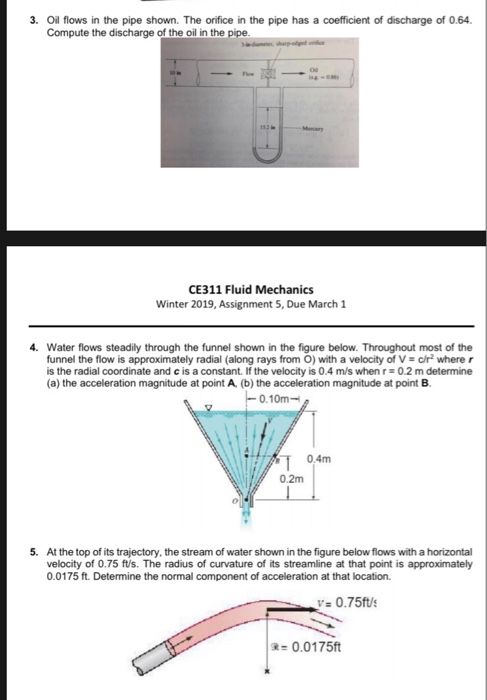

3. Oil flows in the pipe shown. The orifice in the pipe has a coefficient of...
Q1 (10 pts): Oil flows in a pipe shown in the figure below. The orifice in...
Q1 (10 pts): Oil flows in a pipe shown in the figure below. The orifice in the pipe has a coefficient of discharge of 0.64. Compute the discharge of oil in the pipe. 3-in-diameter, sharp-edged orifice 10 in Flow Oil (s.g. - 0.86) 15.2 in -Mercury
Q4 (20 pts): Water flows steadily through the funnel shown in the figure below. Throughout most...
Q4 (20 pts): Water flows steadily through the funnel shown in the figure below. Throughout most of the funnel the flow is approximately radial (along rays from 0) with a velocity of V = c/rwhere r is the radial coordinate and c is a constant. If the velocity is 0.5 m/s when r=0.2 m determine: (a) the acceleration magnitude at point A, (b) the acceleration magnitude at point B. 12 m T 0.6 m 0.2 m
Fluid shown in (Figure 1) flows through the curved pipe such that fluid particles move along...
Fluid shown in (Figure 1) flows through the curved
pipe such that fluid particles move along the center streamline
with the velocity of V=(14s^2 + 1000t^3/2 +4)m/s, where s is in
meters and t is in seconds
Part A
Determine the magnitude of the acceleration of a particle at point
A, where s= 0.3m, if it arrives t = 0.02s
a=
Fundamental Problem 3.8 Fluid shown in (Figure 1) flows through the curved pipe Y Pa such that fluid particles...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be express...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
thermaldynamics and fluid mechanics Question 4 An orifice plate flow meter, as shown in figure Q4,...
thermaldynamics and fluid mechanics
Question 4 An orifice plate flow meter, as shown in figure Q4, is situated in a horizontal pipe of 95 cm diameter (d) in which water flows. The pressure difference between the vena contracta and flow upstream at point 1 is measured using a differential manometer. The diameter of the sharp-edged orifice (d.) is 35 cm. The coefficient of discharge for the flow meter is 0.7, and the coefficient of contraction is 0.62. Assume the density...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe,...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
5. Oil Flow in a Pipe Oil (S 0.80;0.01 lb s ft-2) flows downward in the...
5. Oil Flow in a Pipe Oil (S 0.80;0.01 lb s ft-2) flows downward in the pipe shown in Figure 3. The pipe diameter is 0.10 ft and has a slope of 30°. The mean fluid velocity is 3 ft s1. What is the pressure gradient, de, along the length of the pipe? 30° Figure 3: Schematic of oil flow in a pipe. Answer(s):-71 lb ft-2 ft-1
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure...
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure measurements in the figure, determine: a) Whether the flow is up or down b) The head loss between points A and B P 500 kPa 15 m c) The flow rate if losses are about 16% of the 370 velocity head 20 m
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P=...
Q4) Water (y 9810 N/m3) flows steadily with negligible viscous effects through a pipe as shown...
Q4) Water (y 9810 N/m3) flows steadily with negligible viscous effects through a pipe as shown below, pressure and velocity at point (1) are 110 kPa and 1m/s respectively. Find the pressure at point (2) in kPa if velocity at that point is 5 m/s. 2 m Answer (round to 1 decimal place):
2. SAE 30 oil (T- 100°F) flows through the 2-in diameter pipe shown. At Point B,...
2. SAE 30 oil (T- 100°F) flows through the 2-in diameter pipe shown. At Point B, thep average velocity vB 5.0 ft/s. Calculate the pressure at Point A ressure is 50 psig an 20 ft 5 ft
Q1 (10 pts): Oil flows in a pipe shown in the figure below. The orifice in the pipe has a coefficient of discharge of 0.64. Compute the discharge of oil in the pipe. 3-in-diameter, sharp-edged orifice 10 in Flow Oil (s.g. - 0.86) 15.2 in -Mercury
Q4 (20 pts): Water flows steadily through the funnel shown in the figure below. Throughout most of the funnel the flow is approximately radial (along rays from 0) with a velocity of V = c/rwhere r is the radial coordinate and c is a constant. If the velocity is 0.5 m/s when r=0.2 m determine: (a) the acceleration magnitude at point A, (b) the acceleration magnitude at point B. 12 m T 0.6 m 0.2 m
Fluid shown in (Figure 1) flows through the curved
pipe such that fluid particles move along the center streamline
with the velocity of V=(14s^2 + 1000t^3/2 +4)m/s, where s is in
meters and t is in seconds
Part A
Determine the magnitude of the acceleration of a particle at point
A, where s= 0.3m, if it arrives t = 0.02s
a=
Fundamental Problem 3.8 Fluid shown in (Figure 1) flows through the curved pipe Y Pa such that fluid particles...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
thermaldynamics and fluid mechanics
Question 4 An orifice plate flow meter, as shown in figure Q4, is situated in a horizontal pipe of 95 cm diameter (d) in which water flows. The pressure difference between the vena contracta and flow upstream at point 1 is measured using a differential manometer. The diameter of the sharp-edged orifice (d.) is 35 cm. The coefficient of discharge for the flow meter is 0.7, and the coefficient of contraction is 0.62. Assume the density...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
5. Oil Flow in a Pipe Oil (S 0.80;0.01 lb s ft-2) flows downward in the pipe shown in Figure 3. The pipe diameter is 0.10 ft and has a slope of 30°. The mean fluid velocity is 3 ft s1. What is the pressure gradient, de, along the length of the pipe? 30° Figure 3: Schematic of oil flow in a pipe. Answer(s):-71 lb ft-2 ft-1
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure measurements in the figure, determine: a) Whether the flow is up or down b) The head loss between points A and B P 500 kPa 15 m c) The flow rate if losses are about 16% of the 370 velocity head 20 m
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P=...
Q4) Water (y 9810 N/m3) flows steadily with negligible viscous effects through a pipe as shown below, pressure and velocity at point (1) are 110 kPa and 1m/s respectively. Find the pressure at point (2) in kPa if velocity at that point is 5 m/s. 2 m Answer (round to 1 decimal place):
2. SAE 30 oil (T- 100°F) flows through the 2-in diameter pipe shown. At Point B, thep average velocity vB 5.0 ft/s. Calculate the pressure at Point A ressure is 50 psig an 20 ft 5 ft
