12) A normal father and an affected daughter have both sons and daughters affected. Therefore this cannot be a X-linked trait because in order for girl child to be affected with a X-linked disease she must inherited one mutated X chromosome from each parent. Here the father is normal which means he has normal X-chromosome because males have XY genotype. If a male has a mutated X chromosome he is always affected as its genotype is hemizygous XY. Therefore this cannot be a X-linked trait and is an autosomal trait.
As can be seen in the pedigree the trait is expressed in every generation which is a feature of dominant trait. Thefore this pedigree represent an autosomal dominant trait.
13) This cannot be a X-linked trait as males are not heterzygous for X chromosome linked trait as they have only one X chromosome.
Here carrier parents are producing one affected homozygous child and other carrier children. When this affected child ( male) mates with an unaffected female, none of the progeny is affected but all are carrier. This is indicative of an autosomal recessive trait.
The genotype of generation 1 parents must be Aa as they heterozygous. Here a represent recessive mutant allele and A represent dominant allele.
Aa x Aa : AA, Aa, Aa, aa ( affected child)
The genotype of the female with who this affected child later on marrier must be AA as she is normal homozygous.
aa x AA : Aa ( all are carriers)
The similar pattern is seen in the pedigree. The cross of a homozygous normal female and homozygous recessive individual produce all carrier progeny.
The trait is also skipping generation which is a feature of an autosomal recessive trait.
Therefore the given pedigree represent an autosomal recessive trait.

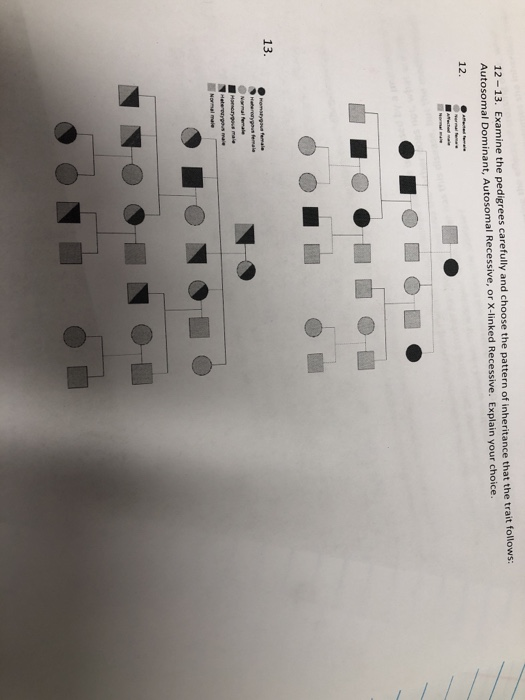

12-13. Examine the pedigrees carefully and choose th Autosomal Dominant, Autosomal Recessive, or X-linked Recessive. Ex...
9. Given the following pedigrees which is autosomal dominant, autosomal recessive, x- linked dominant, x-linked recessive? A) X-laerecossJa B) aubsamel OTO OTO OTO OTO OT 공명이 어민오오T모 오오 모오! X-linkad dom an auhsom dominaat D) OTO |0모오9오
Analyze each of the following pedigrees and indicate if the
modes of inheritance are Autosomal recessive/dominant, X-linked
recessive/dominant and explain in a few words.
10. Analy Autosomal recessive Autosomal dominant and explain why in a few words .X-linked recessive X-linked dominant 3 pts each 5-5ーるる 白
The possible modes of inheritance are autosomal dominant autosomal recessive X-linked recessive mitochondrial inheritance || ITQ ? 11 2 3 4 23 TO O | 1 2 3 | | O ■ 2 3 2 3 4 5 Question 1 (12 marks) For the following pedigrees i. identify the most likely mode of inheritance, and ii. describe 2 features that fit with that mode of inheritance. 1 mark each 2 marks each The possible modes of inheritance are autosomal dominant...
Look carefully at the pedigrees below and:
1) indicate whether the transmission appears autosomal or
sex-linked
2) indicate whether the transmission appears dominant or
recessive
3) provide at least two characteristics for each that support
your conclusion.
In general, the following characteristics suggest (but do not prove) specific inheritance patterns: Autosomal recessive inheritance: -affected individuals can be born to unaffected parents -if both parents are affected, all children are affected -observable effect of relatedness (consanguinity) -horizontal" inheritance: trait appears at...
QUESTION 19 Identify the pattern of inheritance in this pedigree: 10 autosomal dominant autosomal recessive X-linked dominant O X-linked recessive
PEDIGREE ANALYSIS
Examine the following pedigrees.
1. Examine the pedigree of achondroplasia (a form of
dwarfism).
a) Is this trait dominant or recesive?_____
b) How do you know?_______
c) Label all genotypes on the pedigree chart:
2. Examine the pedigree of an X-linked recessive disorder
(red-green color deficiency).
1) Label all of the genotypes on the pedigree chart:____
3. Examine the following pedigree.
a) Is it autosomal dominant or recessive, or X-linked
recessive? _______
b) How do you know?______
c)...
QUESTION 26 Match the pictured pedigrees to the correct label. - A. X Linked Dominant od 0 B. Y Linked c Autosomal Dominant Oro oooo om od GOT D. Autosomal Recessive E. X Linked Recessive DO A X Linked Dominant B. Y Linked c. Autosomal Dominant Joo Doo D. Autosomal Recessive E. X Linked Recessive
QUESTION 18 Identify the pattern of inheritance in this pedigree: autosomal dominant O autosomal recessive O X-linked dominant O X-linked recessive
Part B Determining genotypes in pedigrees of X-linked
conditions
The pedigree from Part A is shown below. Fill in the most likely
genotypes of the indicated individuals in the pedigree. Note that a
dominant allele followed by an underscore (_) indicates that either
the dominant or the recessive allele may be present at the second
position. Drag one pink label (for condition A, autosomal
recessive) to each pink target. Drag one blue label (for condition
B, X-linked recessive) to each...
The conclusions about inheritance (above) can be used to help analyze pedigrees. For each pedigree below, tell if the trait can be autosomal dominant, autosomal recessive, and X-linked recessive. If the pedigree cannot fit a mode of inheritance, tell why. Record your answers in the table on the next page. Pedigree A 2 3 o.a. 9 10 12 (13 14 ad ada 15 16 Xx 20 aa ia ha Pedigree B 910 11 12 14 a ta da Enter either...
