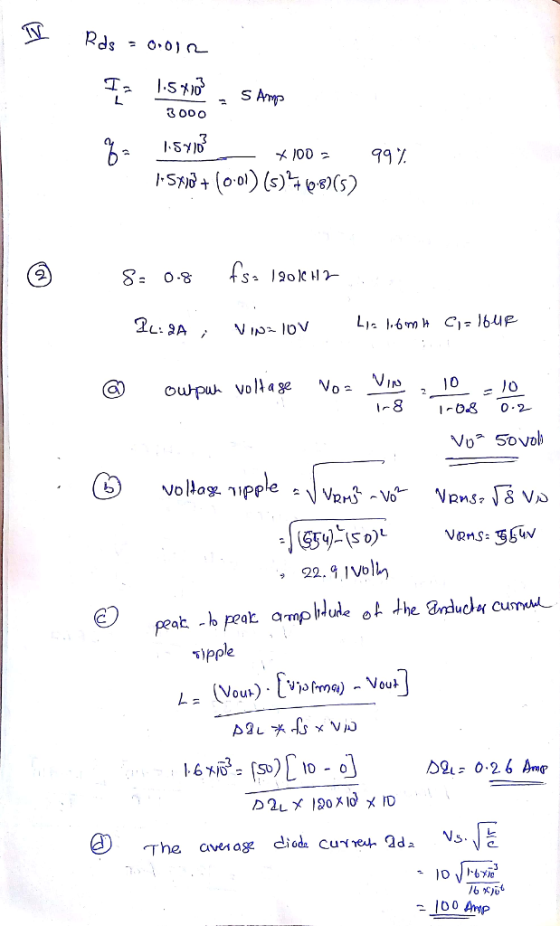

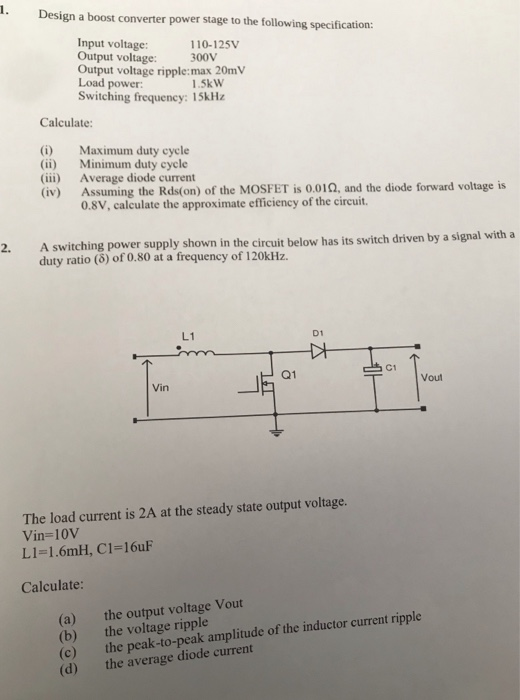

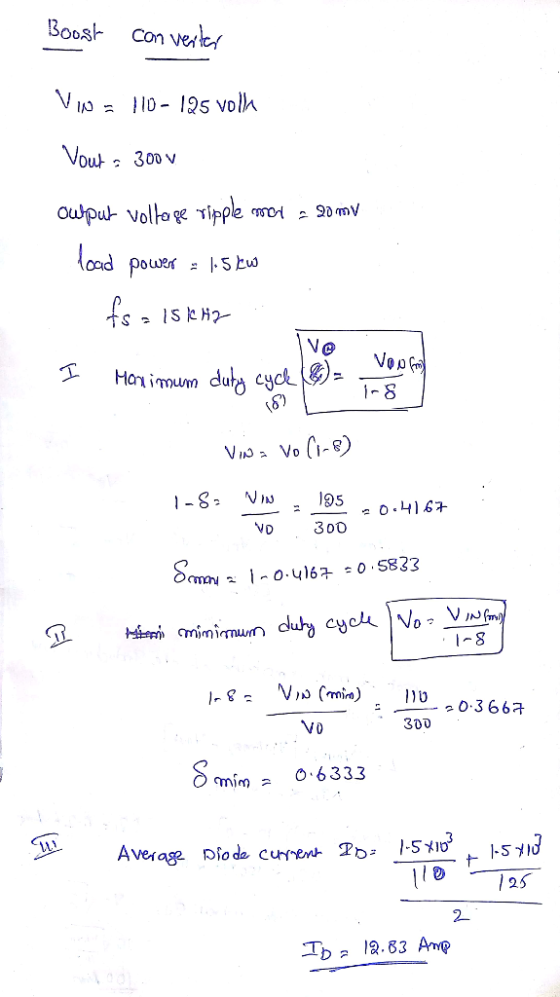

Design a boost converter power stage to the following specification: Input voltage Output voltage: Output voltage...
Boost Converter: Theory, schematic, operation, advantages, application, duty cycle, efficiency Design calculation Example: Input voltage: min 120V max 175V Output voltage: nominal (regulated) 300V Nominal load current: 3 A max Switching frequency: 20 kHz Output voltage ripple: 25 mV Draw the schematic, find L, C, Diode current, max drain voltage, max and min duty cycle
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV Define a suitable power circuit topology to meet the above specification? Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the output...
1. to design a high efficiency d.c. to d.c. power converter with the given specifications Input voltage Output voltage Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV min 10V max 15V nominal (regulated) 8V Define a suitable power circuit topology to meet the above specification Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the...
A Buck-boost converter has an output voltage 100 V, output power 60 W and input voltage 12 V. Switching frequency is 15 kHz. Calculate duty ratios for the switch and the diode. Find values for the inductor L and capacitor C, when the allowed output voltage ripple is ±0.15 % and the inductor current ripple is ±1 % (of the average value). If the on-time of the switch has an inaccuracy of ±50 ns, what is the new output voltage...
3) The Figure shows the schematic of a Synchronous converter. The converter has the following requirements: 350V Vin: Vout 75V regulated Load power 200W Switching frequency: 750kHz Max. output ripple: 30mV 01 L1 Vin LC1 you 02 Vn 1. Calculate L1 and C1 2. What is a synchronous converter? Differentiate with a typical Buck converter
3) The Figure shows the schematic of a Synchronous converter. The converter has the following requirements: 350V Vin: Vout 75V regulated Load power 200W Switching...
Design a DC-DC boost converter, shown below, that converts an unregulated supply of 12.0 Vak into a load voltage of 30.0 Ve and load current of 0.25 A. The switching frequency of the transistor is 100 kHz. The transistor has an on-resistance of 0.15 Ω and the diode drops 0.7 V when it is conducting. The voltage ripple (Av) is taken as 20 mVpp The circuit has 80% conversion efficiency. Find the DC input-current (Iden), duty-cycle (D), inductance (L), power-dissipation...
A buck converter is used to have low output voltage from the high input source to low output voltage. The estimated power output is at 25 kW with the switching frequency of 25 kHz. Design the buck converter as by finding and following specifications consider the ripple of the output is set at 1% (i) Calculate the duty ratio of the buck converter (1 mark) (ii) Determine the minimum requirement for the inductor and the capacitor (5 marks) (iii) Determine...
Power Electronics and Drive Systems
a) A boost converter is required to have an output voltage of 8 V and supply a load current of 1 A. The input voltage varies from 2.7 to 4.2 V. A control circuit adjusts the duty ratio to keep the output voltage constant. Select the switching frequency. Determine a value for the inductor such that the variation in inductor current is not more than 40 percent of the average inductor current for all operating...
The following circuit is a buck-boost converter where M1 functions as a switch. a. Describe how the converter works when M1 is switched on and off. b. Provide proof that V where D is the duty cycle controlled by the MOSFET, M1. 1-D Ignore the voltage drop across the transistor and the diode. D1 Vin C1 Gate drive circuit L1 RL c. Plot the transistor current, the inductor current, the capacitor current, and the load current as a function of...
A buck-boost converter has input voltage of 12V and operates with a duty cycle of 0.6 at a frequency of 50kHz and a load current of 5A average. Assuming sufficiently large L, and C = 500uF, calculate the peak-peak output voltage ripple and the rms current rating for the capacitor and inductor.
